Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | ALLANCE |
Model Number: | PM-200&250&300HM | Voltage: | 1500 | Power(W): | 380V |
Weight: | 350KG | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Widely Use Good Quality Wood Pellet Machine
Wood pellet mill can be used to process various kinds of material like sawdust, paddy straw, sun flower stalk, hulls, forestry wastes, wood chips, chemical waste and many other wastes or solid powder materials. The raw material is under dried condition, which is compressed and formed into small eraser-sized bits, the final pellets is clean, pleasant and smooth, and its density is more than 1.0.

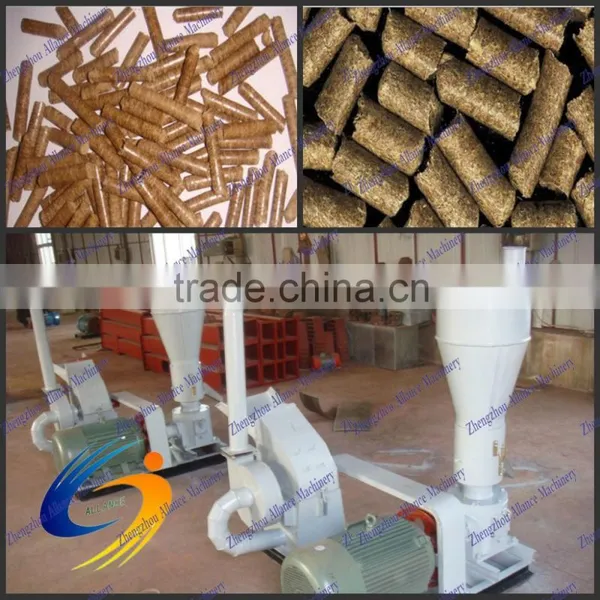

Hammer Mill Combined Flat die Wood Pellet Machine | ||||
Model | Power(kw) | Capacity(kg/h) | Weight (kg) | Machines |
PM-200HM | 15 | 200-300 | 200 | PM-200&HM-26 |
PM-250HM | 22 | 250-300 | 350 | PM-200&HM-32 |
PM-300FQ | 30 | 350-450 | 550 | PM-300&HM-42 |
Hammer Mill Combined Ring die Wood Pellet Machine | ||||
CM-250FQ | 11+22 | 500-700 | 1800 | CM-250&HM-50 |
CM-300FQ | 30+15 | 800-1000 | 2000 | CM-300&HM-55 |
Application of wood pellet mill
Wood pellet mill is suitable for home use or small enterprises which produce biomass pellet fuel or feed pellet. Wood pellet mill can be configured to diesel power or electricity power. Wood pellet millis mobile flexible with simple operation; the flat die wood pellet mill can be used to produce animal feed, and ring die wood pellet mill can be used to produce pellet fuel which are suitable for large enterprises with large scale production and high energy efficiency. It can also be applied to make all kinds animal feed fertilizer and compound fertilizer and low temperature pelleting.
Feature of wood pellet mill
1. Flat die are produced by international advanced equipment and has long lifespan.
2. The pellet mill is driven by heavy-duty gearbox, which can produce continuously in poor condition.
3. The key components are made of alloy steel which has strong and malleable texture.
4. The machine is widely used in pelletizing for wood, straw and rice hull and other biomass plants.
5. The important wearing parts are of high performance, long service time and low maintenance cost.
6. Simple operation and easy to use: high automation degree, less labor force. Only three people are needed in the process. It adopts the artificial feeding or automatic conveyor.
7. Materials adaptable: the machine adapt to various kinds of biomass materials. The size of straw particle can be from powder to 50mm length. And the moisture content is between 5% to 30%, Under this condition, the materials can be make pellets.
8. Roller autoregulation function: the principle of bi-directional rotation of the thrust bearing to adjust the pressure angle automatically, so that the materials are not crowded groups to block the machine, to ensure that the material pelleting with stableness.
Usage and Maintenance of wood pellet mill
(1) Before using please inspect the whole machine completely. At first, clear the metal material stubbing, and adjust the moisture content of material at 13%. Of course, different materials have different moisture content requirements.
(2) During the mechanical operation, pay attention to abnormal phenomenon of the machine, such as abnormal voice. It is necessary to stop the machine immediately and check up the problems.
(3) During the operation, operator’s hand is strictly prohibited to stretch into feeding mouth.
(4) Before starting the machine, check up the fasteners whether is firm and reliable or not. And the clearance between the compression rollers and the die should be appropriate (different materials require different dies)
(5) It is necessary to press a few material combined with waste lubrication oil repeatedly to increase the smoothness of the die hole, to improve the work efficiency.
(6) Wood Pellet mill which combined with crusher, the crusher shall be opened at first. Then put less material in the pellet mill and observe the situation until it is in normal operation.
