2015 China best-selling product hammer mill machine for animal feed
Brief Introduction for animal feed hammer mill
The hammer mill is a machine whose purpose is to crush materials by the collision
between the high-speed hammer and materials.
It is suitable for milling raw material like tree branch, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5
mm, then it is suitable for further processing.
Hammer mill can grind many kinds of biomass, the output can be produced into feed
pellets or wood pellets by pellets mill.
1. Grinding the granular raw materials, such as corn, sorghum, wheat, beans, etc.
2. Grinding feed ingredients for pet, livestock, poultry, aquatics etc.
3. Grinding raw materials by large and medium farms.
4. Grass and pharmacy fine grinding.
5. Widely used to crush many kinds of straw, wood chip, tree branch, bark and leftover bits fromagricultural wastes in pelletizing plants.
Features for animal feed hammer mill
1. Derived from tear circle types hammer mill, the working efficiency can be improved by 45%-90% compared with universal hammer mill;
2. It can produce qualified feed under full load and can reduce jam significantly with the screen
hole of semi diameter 0.8mm/1mm. Both coarse and fine grinding can be realized without
changing screens;
3. The right aspiration can make materials go through screen quickly, reduce temperature of
grinding chamber and increase output effectively.
4. Compact structure, delicate design, high efficiency, low consumption and low noise.
working principle for animal feed hammer mill
A hammer mill is actually a steel drum consists of a vertical or horizontal rotating shaft
or drum on which hammers are mounted. The hammers swing on the ends of the cross freely,
or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is
fed right into a feed hopper. The material is impacted by the hammer bars and is thereby
expelled through screens in the run of a selected size.
Specification for animal feed hammer mill
Model |
FSP56*36 |
FSP56*40 |
FSP60*30 |
FSP60*45 |
FSP60*60 |
FSP60*75 |
FSP112*40 |
Capacity(t/h) |
2.5--5 |
4--7 |
2--5.5 |
5--9 |
6--10 |
8--13 |
12--22 |
Diameter of rotor(mm) |
560 |
560 |
600 |
600 |
600 |
600 |
1120 |
Width of chamber (mm) |
360 |
400 |
300 |
450 |
600 |
750 |
400 |
Speed of hammers (m/s) |
86 |
86 |
94 |
94 |
94 |
94 |
84 |
Hammer QTY(pcs) |
20 |
24 |
24 |
44 |
48 |
60 |
40 |
Speed of rotor (r/min) |
2980 |
2980 |
2980 |
2980 |
2980 |
2980 |
1440 |
Sieve hole size (mm) |
φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0 |
||||||
Power (kw) |
18.5/22 |
30/37 |
18.5/22 |
45/55 |
75/90 |
90/110 |
90/110 |

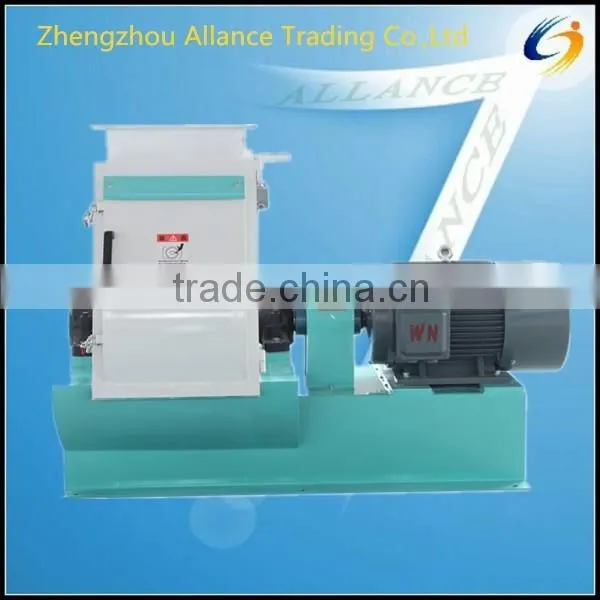

Reality Images of animal feed hammer mill
Main Equipments of Animal Feed Pellets Line
Anny Zhang
Tel: 0086-371-65950309
Skype: allanceanny1
Whatsapp: 0086-15093101056
Welcome your inquiry for our animal feed hammer mill !
