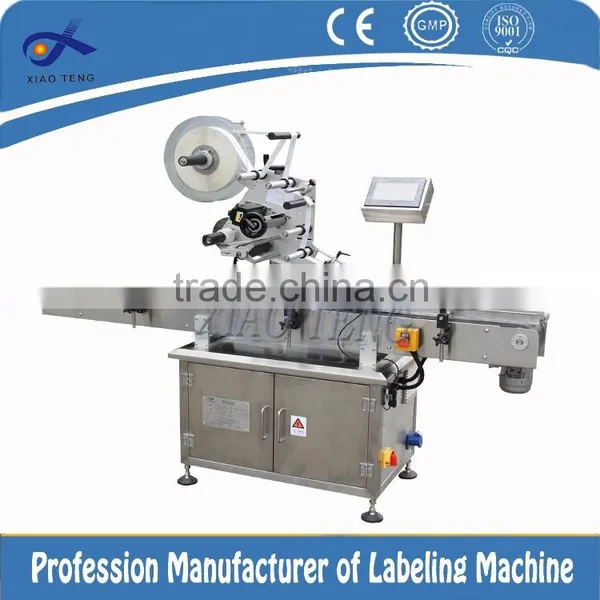

Labeling Machine Type and Paper Packaging Material bottle labeling machine
Applicable to the product:
Main feature:
1 The complete machine is sturdy and durable with the use of materials of 304 stainless steel and advanced aluminum alloy.
2 Imported servocontrol system is matched with the complete machine which makes the machine run quickly and stably.
3 The advanced touch human-computer interface is easy and intuitionistic to operate, which has complete functions including abundant on line help function.
4 Using of world famous accessories ensures the stability and reliability of the machine running.
5 Materials are conveyed on belt to ensure the stability and reliability of the machine running.
6 The conveying is synchronous tracked to the labeling speed automatically which makes the adjustment operation easier.
7 There are automatic sensory test functions including cancelling labeling without objects there,stopping running or raising an alarm without labels to use and so on to avoid omitting or wasting labels.
8 The front or back section can be connected with assembly line or receiving platform which is convenient for collecting, tidying and packaging the finished products.
9 The optional fitting( hot stamp printers) can print date of manufacture and batch number on line, which could reduce the bottle packaging process and enhance productivity effect.
Model / technical parameters | PM-200 |
Labeling capacity(pcs/min) | 0-25 meter/min |
Labeling accuracy(mm) | ±1.0mm |
Label size(mm) | (L)20-300mm (H)10-140mm |
Material size(mm) | φ30-φ100mm (H)20-200mm |
Roll inside(mm) | φ76mm |
Roll outerside diameter(mm) | Φ350mm |
Machine size (mm) | (L)2000*(W)900*(H)1500(mm) |
Power supply | AC220V 50Hz/60Hz 1200W |
Alibaba onsite check picture:
Exihibition Show
FAQ:
1. Can you do customized labeling machine?
Yes, of course. We are a labeling machine manufacturer with more than 10 years experience, we can do labeling machine according to customer's special requirements.
2. Is there any installation direction after we receive the machine?
Yes, we have a proffesional technical team and warm after service, we will solve any problem you meet during the installation and labeling production in time.
3. Is there any ensurance to guaranee my order from your company?
We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply :)
