plastic bag labeling and separating machine for thin material
- 20 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, bottle labeling | Packaging Type: | Bottles |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 1500W | Place of Origin: | Shanghai, China |
Brand Name: | xiaoteng | Model Number: | PM-100A | Dimension(L*W*H): | 2000*850*1450(mm) |
Weight: | 400kg | Certification: | IOS9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

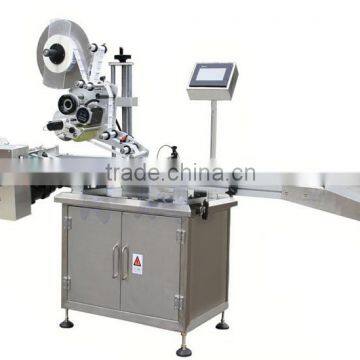

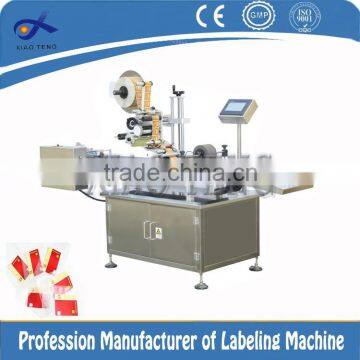

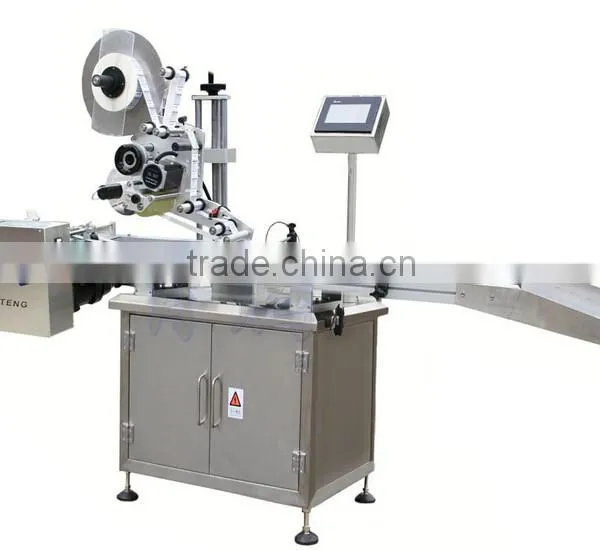

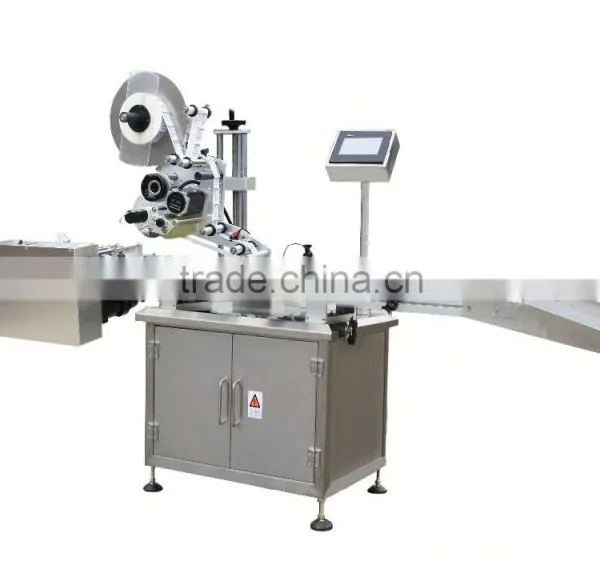

plastic bag labeling and separating machine for thin material
If you need video of this machine, please contact me so I will send to you. Contact information in the bottom of this page
Main performance features:
1. Applicable to automatically separating and labeling pages of unformed paper boxes, instruction books and cards , and it can print codes which are from medicine, food, daily use chemical, etc.;
2. The vacuum conveyer belt takes materials onto it automatically avoiding material translocation. It can separate pages stably and accurately;
3. The whole machine adopts mature PLC control system to ensure the stable running in high speed;
4. Schistose material with any diameter can be separated and labeled automatically after adjusting
and locating fast without changing accessories with the use of popular type paging separating installation;
5. Operation is simple, practical and efficient with the use of touch screen for operation system;
6. Speed regulation can be adjusted for labeling, conveying, paging separating as needed;
7. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
8. Automatic photoelectric detection functions including cancelling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.
Technical parameter
Model / technical parameters | PM-100A |
Labeling speed (pcs/min) | 40-150 (relate to material and label size) |
Labeling accuracy | ±1.0mm (material and label sizes are not counted in) |
Label size | (L)20-200mm (H)10-144mm |
Material size | (L)60-300 (W)40-200 (H)0.3-2mm |
Applicable Label Roll inside(mm): | φ76mm |
Applicable label roll outer diameter (mm): | (Max)φ350mm |
Size of the whole machine | (L)2200*(W)850*(H)1500 (mm) |
Power supply | AC220V 50Hz/60Hz 1500W |
Alibaba onsite check picture:
Exihibition Show
FAQ:
1. Can you do customized labeling machine?
Yes, of course. We are a labeling machine manufacturer with more than 10 years experience, we can do labeling machine according to customer's special requirements.
2. Is there any installation direction after we receive the machine?
Yes, we have a proffesional technical team and warm after service, we will solve any problem you meet during the installation and labeling production in time.
3. Is there any ensurance to guaranee my order from your company?
We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply :)
Contact |
Sales: Zyra Liu |
Tel: 8618964889586 |
Email: xiaoteng23@ |
Skype: xiaoteng23@ |
Xiaoteng Machanical and Electrical Equipment Co., Ltd. |
Adress: No.3500, Jinhai Road, Fengxian District,Shanghai, China |
