TPMS tire pressure monitoring system with 4 internal sensors, easy install, CE approved

TPMS tire pressure monitoring system with 4 internal sensors, easy install, CE approved

Product advantage:

(1)  Infineon chip from Germany imported

(2)  Maxell batteries from Japan imported

(3) Our proprietary RF technology ,unique low-power hardware and software design

(4)  Sensors life of up to 5-8 years,sensors gas nozzle 30°adjustable

(5)Speed up to 200km / h signal transceiver remains stable

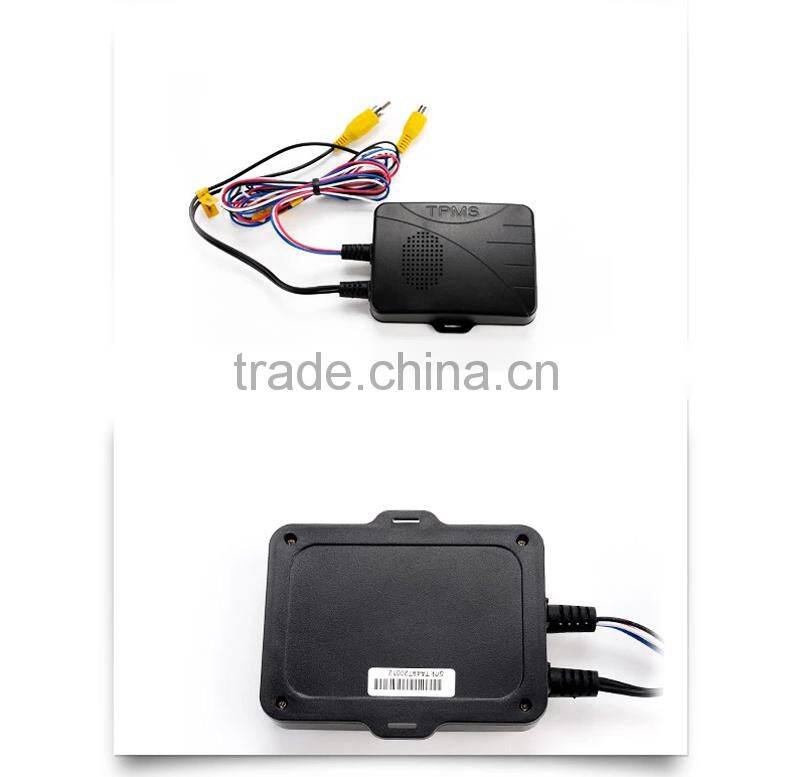

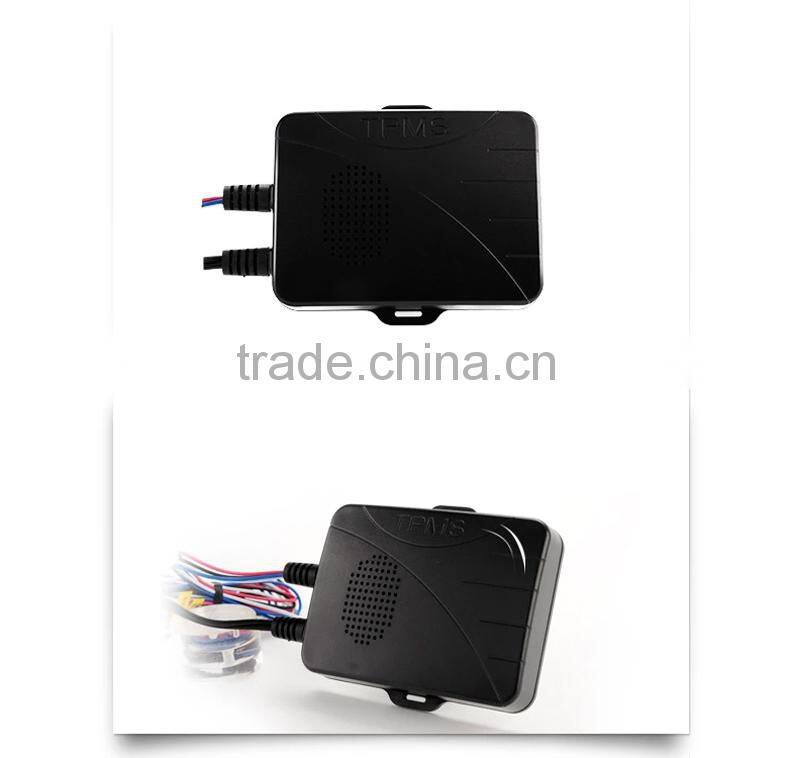

TPMS receiving host:

Voltage/current: 12V/500mA

Equipment Storage Temperature: -20℃-85℃

Operating Temperature: -30℃ -80℃

Operating Humidity: MAX 95%

Weight:142g+/-3g

Protection grade:None

Receiving Frequency: 433.925 MHZ+/-3KHZ

Receiver sensitivity: -100dBm

Overview of the characteristics:

1.All models with vehicle DVD and built-in AV input port.

2.The data on the six wheels display at the same time.

3.Bilingual intelligent menu interface and voice prompt can be customized using car brand.

4.Alarm parameters can be set and voice alarm.

5.Temperature pressure support multi unit switch.

6.Intelligent gas leakage monitoring , strong interference resistance.

   No false alarm, no missing alarm.

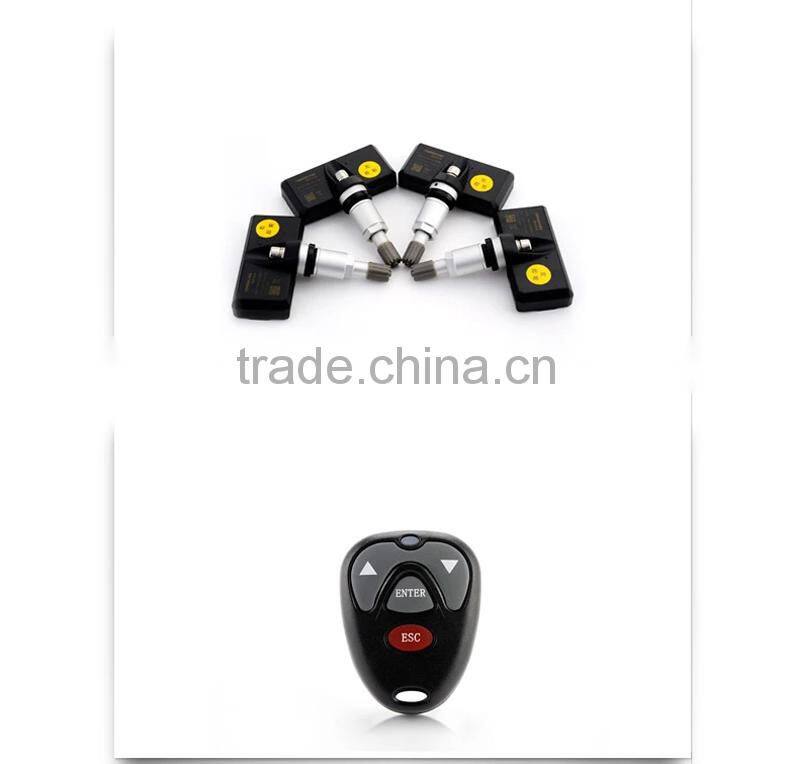

Sensors:

Resistance aluminum alloy gas nozzle

Data sampling rate: 1 time/ second

Transmission interval: 10 seconds when driving

Leakage exception handing: real time transmission

Seal type:wide temperature epoxy resin

Gas nozzle angle: adjustable

Working life: 5-8 years

Battery capacity: 550mAH

Protection grade: IP44

Voltage/Current:3.0V/16mA(the emission transient current)

Equipment storage temperature:-20-85℃

Operation temperature: -40-125℃

Operation humidity: MAX95%

Pressure range:0-350Kpa (relative pressure)

Pressure measurement precision: 1.37Kpa

Temperature range: -40-125℃

Temperature measurement precision: 3℃

Launching frequency:433.925MHz±3KHz

Transmitting power:≤10dBm

Weight:26g±2g ( not including the gas nozzle)
