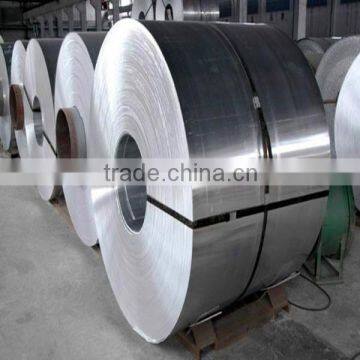

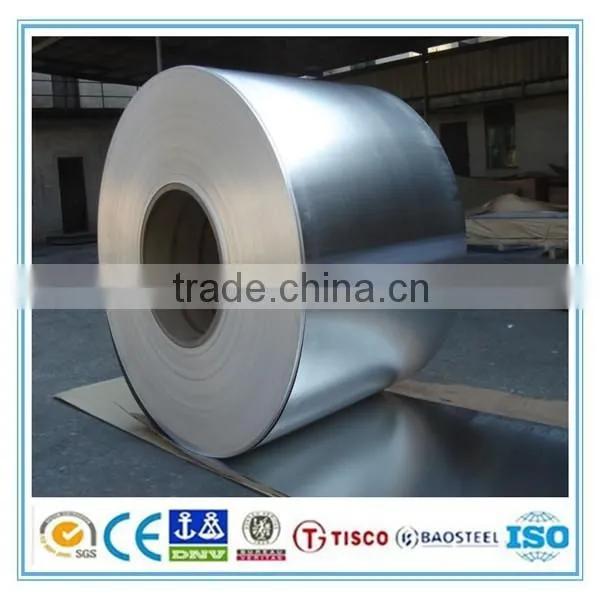

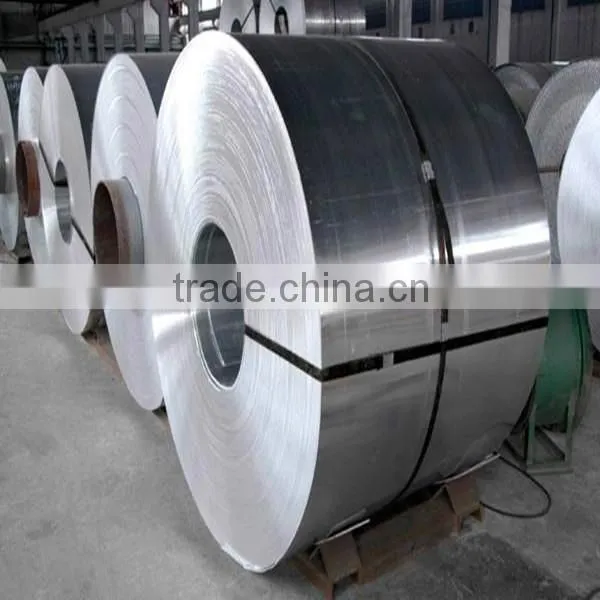

5052 aluminium coil
available coils:
| Material | 1050/1060/1100/3003/3004/5052/5083/5754/5A05/5A06/8011 |
| Temper | O-H112 |
| Dimension | Thickness:customized |
| Width:upto 2200mm |
The tensility and hardness of 5052 ( at room temperature)
| Temper |
Tensile Strength σb/MPa |
Yield Strength σ0.2/MPa |
Elongation δ(%) |
Hardness (HBS) |
| O | 195 | 90 | 25 | 47 |
| H32 | 230 | 195 | 12 | 60 |
| H34 | 260 | 215 | 10 | 68 |
| H36 | 275 | 240 | 8 | 73 |
| H38 | 290 | 255 | 7 | 77 |
Main products and tempers of 5052 aluminum alloy
| Technical Standard | Product | Normal Size/mm | Temper |
| GB/T 3880 | Rolled plates | Thickness >0.5~10.0 | O |
| >0.5~4.5 |
H12,H22,H32,H14,H24,H34, H16,H26,H36,H18,H38 |
||
| >4.5~150.0 | F,H112 | ||
| GB/T 16501 | Hot rolled strips |
Thickness 2.5~8.0 Width 640~1700 |
F |
| GB/T 8544 | Cold rolled strips (Width 60~2000) | Thickness 0.2~6.0 | O |
| 0.2~4.0 | H12,H22,H32 | ||
| 0.2~3.0 | H14,H24,H34,H16,H26,H36, H18,H19 | ||
| GB/T 3198 | Foils (Width 50~1000) | Thickness 0.03~0.200 | O |
| 0.05~0.200 | H14,H24 | ||
| 0.1~0.200 | H16,H26 | ||
| 0.02~0.200 | H18 |
Chemical composition of 5000 series aluminum alloy(%)
| Chemical Composition Standard:GB/T3190-2008 | ||||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Adding Element | Each | Total | Al |
| 5A05 | 0.5 | 0.5 | 0.1 | 0.3~ 0.6 | 4.8~ 5.5 | — | 0.2 | — | — | 0.05 | 0.1 | remain |
| 5A06 | 0.4 | 0.4 | 0.1 | 0.5~ 0.8 | 5.8~ 6.8 | — | 0.2 | 0.02~ 0.1 | Be 0.001~ 0.005 | 0.05 | 0.1 | remain |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~ 2.8 | 0.15~ 0.35 | 0.1 | — | — | 0.05 | 0.15 | remain |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~ 3.6 | 0.3 | 0.2 | 0.15 | Mn+Cr 0.1~0.6 | 0.05 | 0.15 | remain |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~ 1.0 | 4.0~ 4.9 | 0.05~ 0.25 | 0.25 | 0.15 | — | 0.05 | 0.15 | remain |
| Product | aluminum alloy annealing coils 5052 |
| Material | 5052 |
| Temper | O |
| Dimension | 2.3mm*1650mm*C (customizable) |
| Alloy or not | alloy |
| Surface | mill finish,no stains,without a scratch or a graze,without rough selvedge |
| Property | anti-corrosion,heat resistant,good plasticity |
| Technical Standard | GB/T 8544-2006 |
| Coil I/D | 150/350/405/505 |
| Coil O/D | according to your requied |
| Coil weight | ≤ 3300kg (according to your requied) |
| Application | storage device,decoration,pressure essels,construction,electrical equipment,etc |
| Brand name | Jirunxing |
| Origin | China mainland |
| Payment | 30% by T/T in advance |
| Delivery | 15-20 days |
Packaging details:Products are well packed and clear labeled according to the regulations and customer's requests.
Delivery details:according to the quantity ,usually 15-25days after order.
Our company is Stainless steel chamber of commerce unit . We are TISCO first grade agent, factory direct price. Save you a lot of cost and guarantee we have lowest and competitive price .
- 100% truth section describe
- 100% location shooting
- 100% guarantee quality
- 100% service for customer
To choice right good supplier equal to you save cost!
Our experience with reducing costs for our customers through long-run jobs is proven and reliable.
With many long term customers, our stainless steel fabrication services
are low cost and high quality in this present world marketplace.
Jirunxing pursues improvement in every department. Roughly one tenth of company revenue is spent on new technology, renovations, improvements, & strategic market preparation.
Our entire business model (prospect to job close) has been completely value streamed and most of our work flow is strictly managed & controlled.
We maintain records and backups of all pertinent job data.
Wuxi Jirunxing metal products Co., Ltd.
Our company since its inception, always adhere to the customer first, honest and trustworthy, mutual benefit, market first business philosophy, give full play to the talent ,information and price advantage, do fine do best, and constantly improve the professional level and service quality, and constantly improve the marketing network, the implementation of diversified sales, in development in order to survive constantly improve themselves, in the bigger and stronger, and promote the rapid development of enterprise with good reputation and scientific management, won the praise of customers.
German company to introduce production equipment and technology, strong production capacity, advanced processing technology. The company's main aluminum plate, aluminum coil, aluminum strip, pattern plate, and the perennial with various specifications of the 1050, 1060, 1070, 1100, 3003, 3004, 5052, 5083, 6061T6sheet, coil. Materials are widely used in the stamping production, household appliances industry, sheet metal production, decoration curtain wall, automobile industry, mold processing, ship manufacturing, pipe insulation, lighting, advertising signs, etc..
For the convenience of customers, the company still has large shearing machine, laminating machine for the customer processing, delivery car free shipping.
