Specifications
Best facotry price for building material composite panel have low price with good quality. We have passed ISO9001/14001,SGSBest facotry price for building material Aluminium Composite Panel with very competitive factory price
1.Materials:
1) Front side: aluminum roll coated with polyester ,PVDF,Nano
2) Core: polyethe
3) Rear side: aluminum coated with polyester or as requested
2.Procduct structure composed:
1) Protective film
2) Coating-basic level( polyester)
3) Ground coating
4) Aluminum Alloy sheet
5) Macromolecule adhesive
6) Polyethylene
7) Macromolecule adhesive
8) Aluminum Alloy sheet
9) Ground coating
3.Specifications:
Thickness:1mm,2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm (3mm and 4mm are most popular).
Length: 2,440mm (Max. length: unlimited)
Width: 1,220mm (Max. width: 6000mm)
weight:5.5-6kg/sqm baesd on 4mm thickness
Thickness of aluminum foil: 0.15 - 0.5mm
Qty/20'fcl:4mm/4000sqm ,qty/20'fcl :3mm/4500sqm
Colors: silver, flash silver, gold, flash gold, white, red, black etc. (as requirements).
4.Features:
1) Excellent fireproof property 2)Super peeling strength
3)Perfect cold resistance performance 4)Excellent surface flatness and smoothness
5)Superior weather, corrosion, pollutant resistance 6)Even coating, various colors
7)Superior impact resistance 8)Lightweight and easy to process
9)Easy to maintain.
5.Application Scope

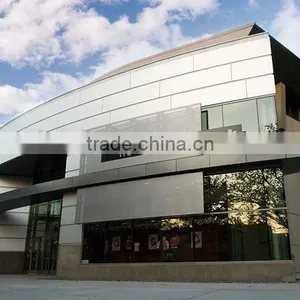

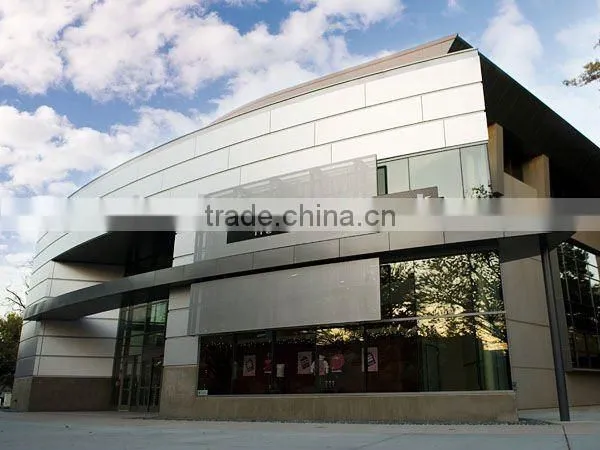

· Building exterior curtain walls
. As decorative materials of interior walls, bathroom, doors,ceilings, kitchens, balconies of home and hotel and so forth.
· As decorative materials in the shops.
| Coating | Specification(mm) | Alu.thickness(mm) |
| Common Plastic core& PE coating | 1220*2440*3 | 0.15 |
| 0.18 | ||
| 0.21 | ||
| 1220*2440*4 | 0.15 | |
| 0.18 | ||
| 0.21 | ||
| 0.3 | ||
| 0.4 | ||
| 0.5 | ||
| Common plastic core& PVDF | 1220*2440*4 | 0.3 |
| 0.4 | ||
| 0.5 |
