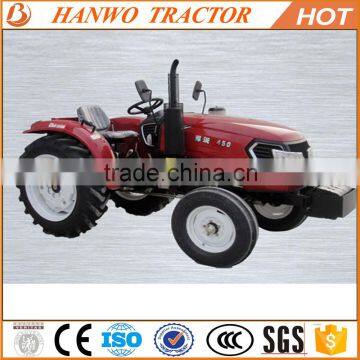

Model |
HW554 |
|||
Type |
4×4 WD |
|||
|
Dimensions of tractor(mm)
|
Length |
3600 |
||
Width |
1600 |
|||
Height |
2200 |
|||
|
Tread
|
Front Wheel |
1300 |
||
Rear Wheel |
1300 |
|||
Wheel base |
2050 |
|||
Min. Ground Clearance |
325 |
|||
|
Min. Radius of Turning(m) |
One-side braking |
3.5 |
||
No braking |
4.2 |
|||
Dry Mass(kg) |
1900 |
|||
|
Engine
|
Model |
Xinchai498 |
||
Type |
Vertical, Water Cooled and 4-stroke |
|||
Rated Power(KW) |
40.4kw |
|||
Fuel |
Diesel fuel |
|||
Fuel consumption (g/kw.h) |
≤245 |
|||
Rated Rev.(r/min) |
2400 |
|||
|
Walking & turning System
|
Tire
|
Front tire |
6.5-16 (optional 8.3-20) |
|
Rear tire |
11.2-24(optional 11.2-28,12.4-28) |
|||
Connection between engine and clutch |
Shaft connection
|
|||
Clutch |
Single Disc, Dry-Friction, Single Stage |
|||
Transmission Box |
(4+1)×2 Mechanical Type |
|||
Steering |
Mechanical or Hydraulic Type |
|||
Suspension Type |
Post positioned Tri-point Suspension, CatalogueI, II |
|||
|
PTO
|
Type and Rev.(r/min) |
Single speed non-independent type 720 or double speed Non-independent 540/1000 |
||
Spline Size(mm) |
Post positioned I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69) |
|||
1.We have our own professional spare parts department. Provide us with Products name, Brand name, Model No. then we could make a quotations for you .
2. On time delivery.
3.Gurantee period: 24 months, If human factors damage,we will not offer compensation; If quality problems, we can exchange the broken parts, but the shipping freight is by your charge.
4. After-sale -deparment offer 24 hours online service; If necessary, engineers available to service machinery overseas.
Weifang Baili Tractor Co., Ltd. is located in Weifang, an easily accessible and economically developed port city . With over 20 years’ history of tractor manufacturing, Weifang has become one of the main tractor manufacturing bases and R&D centers in China, with stable professional supporting systems and high-quality technical talents. Baili is a comprehensive tractor manufacturing company integrating R&D, manufacturing and sales .
Baili is mainly specialized in 18-200HP two-wheel and four-wheel wheeled tractors. We produce and improve the products based upon the technological advantages of domestic and overseas similar products. The tractors are equipped with heavy-duty chassis which is firm and reliable, thus they are especially applicable for operations in paddy fields and also in dry lands. In addition, the tractors can be provided with common agricultural implements. All tractors enjoy the advantages of high traction, good leak tightness, easy operation, low failure rate and outstanding performance. They are widely exported to major agricultural provinces in China and other regions such as Southeast Asia, South America and Africa. We have a complete production line of tractors, fully computer-controlled PTO dynamometer, chassis running-in stand, raiser and such testing equipment as front- and back-axle test bed, smoke meter and fuel consumption meter, thus guaranteeing the quality of each tractor.
1.20 years manufacturer.
2.We do OEM tractor for FOTON.
3.All of our engineers are from FOTON.
In order to give you our best price,when you send email,please tell me:
1.How much horsepower tractor you need?
2.The quantity is?
3. Configuration requirements?
