Home > Products > Screwing Robot > QUICK EC513YA automatic screwing robot
QUICK EC513YA automatic screwing robot
- 30 Piece / Pieces per Month
- Shanghai Port
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | QUICK | Model Number: | QUICK EC513YA |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

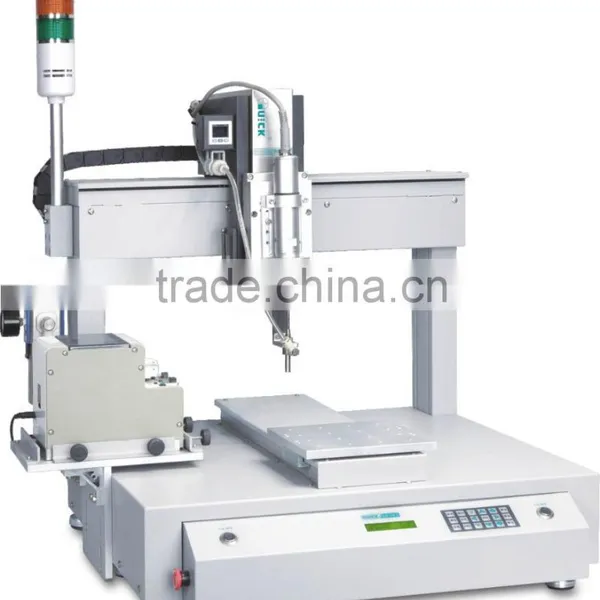

QUICK EC513YA AUTO SCREWING ROBOT
Festures of QUICK EC513YA Auto Screwing Robot Soldering Station:

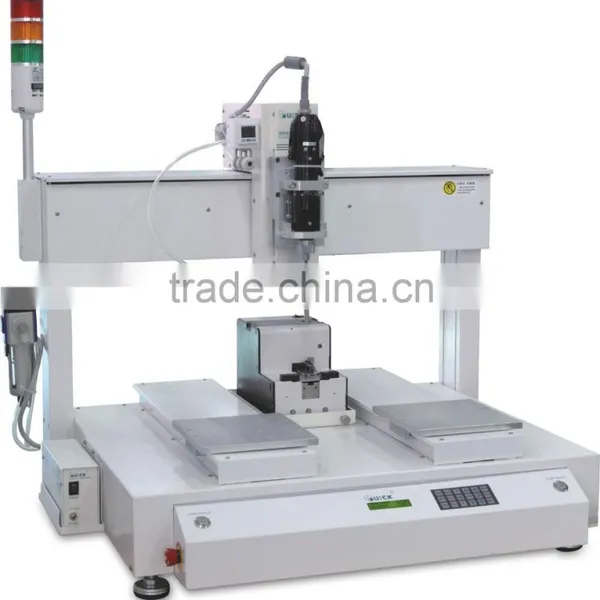

1.Double Y axis design,can seperately control it.
2.Automatic work piece arrival and auto screwing.
3.Continue feeding,counting screws and preventing missing of screwing.
4.Constant torque.
5.External indication light available.
Main Configurations:
1.Double Y Axis work base..
2.Teach pendant.
3.Screw driver using imported motor
4.Imported screw provider
Specifications:
Model | QUICK EC513YA | |
Voltage | 100-240V AC | |
Power | 200W | |
Axis | 4 | |
Movement Range | X | 500mm |
Y | 500mm | |
Z | 100mm | |
Movemant Speed | X | 0.1-600mm/sec |
Y | 0.1-600mm/sec | |
Z | 0.1-300mm/sec | |
Repeat Precision | X | ±0.02mm |
Y | ||
Z | ||
Screwing Usable | 1.6-3.0(mm) | |
Dimensions W*D*H | 830*700*800mm | |
Weight | About 130kg |
Accessories:
Air Suck Type
Feature:
1.Low vibration,low noise.
2.Precise torque force,long life.
3.Wide application.
Power Supply
Feature:
1.Special power supply,stable output.
2.Extra large:250W.
Air Blow Type
Feature:
1.Precise torque,stable and reliable,compact and light.
2.Brushless motor.
3.Low DC design,safe to use.
4.Screw height test function available.
5.Air blow type saves the feeding time to improve the working efficiency.
Auto Screw Feeder
Feature:
1.Large capacity,low noise,smooth and stable screw feeding.
2.Types of screws applicable,screw size:M1.4-M5.
3.Turntable positioning feeding,fast and accurate,suitable for auto picking up.
4.Easy and convinient parameter setup.
Screw Feeder for the Air Blow Type
Feature:
1.Fast material feeding,only 1.2s for two screws which can be ready,individual use avalaible.
2.Friendly-use interface,easy operation,more functions included:parameter setup,mode setup,alarm setup.
3.Compact design,suitable for use in the assembly line.
4.Low noise,smooth and stable screw feeding.
5.Types of screws applicable,screw size:M2-M6.
There are some other screwing robot soldering station products,please kindly see below.
If there is any model you like,please feel free to contact with us!
QUICK EC413 AUTO SCREWING ROBOT
QUICK EC423 AUTO SCREWING ROBOT
QUICK , as a leading company of soldering station products,has got CE certificates for most of our products,and also approved ISO9001 & ISO14001.
Established in 1994 and located in Changzhou,QUICK Soldering has grown to be the leading manufacturer of soldering station equipments and other productions in China.It is widely recognized as a comprehensive solution provider in eletronics assembly industry.
QUICK Soldering takes pride in its professional teams of R&D,manufacturing and sales.ISO9001 Quality Management and ISO14001 Environment Protection System are both implemented to improve and perfect it in all aspects.
Nowadays,QUICK products consists of various types of soldering equipments,such as solderingstation,rework soldering station,soldering robot,laser soldering robot,quantitative solder melting&dropping soldering robot,infrared&hot air BGA rework system and other related equipments like dispensing robot,screwing robot,fume extractor,static eliminator etc.Automantic assembly lines combined with soldering,dispensing,screwing,AOI and jig-returing etc can also be customized as per different applications.
QUICK Soldering adheres to the principle of providing customers with superior quality products at reasonable prices and excellent services.As it dis in the past,QUICK Soldering will continue to offer customers an sll-round support in future.It's the sincere wish to establish a long term business relationship with customers who are interested in the products.
OUR WORKSHOP & SHOWROOM:
1.We are the largest and most professional manufacturer of soldering station products.
2.Our company has passed ISO9001 & ISO14001.
3.Over 60 R&D engineers, with more than 20 years experience.
4.Have global users in many countries such as Korea,Vietnam,India,Mexico,Brazil,North Africa,European countries etc.
5.High quality & competitive price.
6.Most products have CE certificates.
7.100% NEW from QUICK factory.
8.100% QC inspect before shipment.
9.OEM is acceptable.
All products purchased in QUICK are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts. If quality problems happen in guarantee period,our company provides technical supports and fittings.Our local distributor will help to solve your problems timely after receiving telephone or emails. If you are caught in some problems when using our products, welcome to contact us at any time.
QUICK is a leading company which is specialized in providing soldering station and other electronic soldering equipments.
If there is anything you'd like to know,please contact us without hesitation.
You can contact us as bellow:
