Welding Electrode Manufacturer Supply E6013 Welding Electrode
- 4000 Ton / Tons per Month
- Tianjin port
- T/T Credit Card
- AWS A5.20 E71T-GS
- Welding Wire
- Chromium Carbide Wear Plate Wear Plate Surfacing Machine Wear Plate Manufacturer
- Welding Manipulator Hardfacing Welding Machine Welding Manipulator For Sale
- JH-100HC Flux Cored Hardfacing Welding Wire Hardfacing Flux Cored Wire Price Sale Hardfacing Wire
- JH-100MoZr Flux Cored Hardfacing Welding Wire Sale Flux Core Welding Wire Hardfacing Wire
Product Details
Place of Origin: | Hebei, China | Brand Name: | AINING-E6013 Welding Electrode | Model Number: | E6013 Welding Electrode |
Material: | Other, Mild Steel Welding Electrode | Diameter: | 2.0mm 2.5 mm 3.2mm 4.0 mm 5.0mm | Melting Point: | International standard |
Weight: | 5kg 15kg 20kg | Application: | milde steel structure,alloy steel structure,ect | Flux Content: | International standard |
Product Description

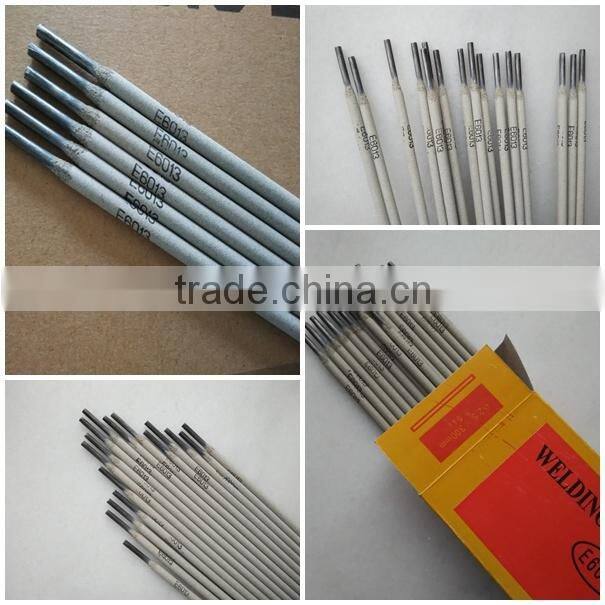

Welding Electrode Manufacturer Supply E6013 Welding Electrode
Welding electrode E6013 is a kind of mild steel welding rod with rutile sand or titanium type coating. The current can be AC or DC. Our welding electrode E6013 is able to provide both excellent welding and operating performance. It's easy to ignite and restrike the arc. The slag is fluid and when harded it
is impact and easy to remove. Besides it has less smoke. Our welding electrode E6013 can also provide fast melting rate, high deposition efficiency, more stable arc, less spatter and beautiful welding line shape.
Chemical Composition of Deposited Metal(%).
Chemical Composition | C | Mn | Si | S | P |
Guarantee Value | ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal.
Test Item | Rm(Mpa) | Rel(Mpa) | A(%) | KV2(J) | KV2(J) |
Guarantee Value | ≥420 | ≥330 | ≥17 | -(normal temperature) | -(0℃) |
Gegeral Result | 460-540 | ≥340 | 18-26 | 50-80 | ≥47 |
Welding electrode E7018 is a kind of carbon steel with iron powder of low hydrogen
potassium type coating.It can improve deposition efficiency because of the iron powder
in the coating.Its arc is more stable with less spatter.It is easy to remove the residue.
It can provide both beautiful welding line shape and good deposited metal mechanical
performance.And the current can be AC or DC.It can be used for all position welding.
Chemical composition of deposited metal(%)
C | Mn | Si | S | P | Ni | Cr | Mo | V |
≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
Reference current(AC,DC)
Diameter(mm) | Φ2.5 | φ3.2 | Φ4.0 | Φ5.0 |
Welding current(A) | 60-100 | 80-140 | 110-210 | 160-230 |
Welding electrode E6013 is widely used for welding low carbon steel structures, especially suitable for welding thin plates and cosmetic welding which requires the welding beads to be beautiful and glossy. It is sutable for all position welding. Welding Electrode E6013 is often used for welding structure of steel sheets, vehicles, buildings, vessels, machinery-manufacture and various structures of low carbon steel. It has excellent fabrication weldability, suitable for welding on the plate of low carbon steel or light strucures where beautiful bead appearance is requested.
1 Easy to ignite and restrike the arc.
2 More stable arc, Less spatter.
3 High deposition efficiency.
4 Beautifu welding line shape.
Attention
1 Generally welding electrodes don't need bake before welding.
2 If damped, the electrode should be baked for 0.5-1.0 hour at the temperature of 150-170 ℃ before welding.
2.5 × 300mm, 2.5 ×350mm
3.2 ×350mm, 3.2 ×400mm
4.0 ×400mm, 4.0 ×450mm
5.0 ×450mm, 5.0 ×500mm
2.5kg×8box=20kg/carton, 50 or 100 cartons per pallet.
5.0kg ×4box=20kg/carton, 50 or 100 cartons per pallet.
We can also make packages as your requests.

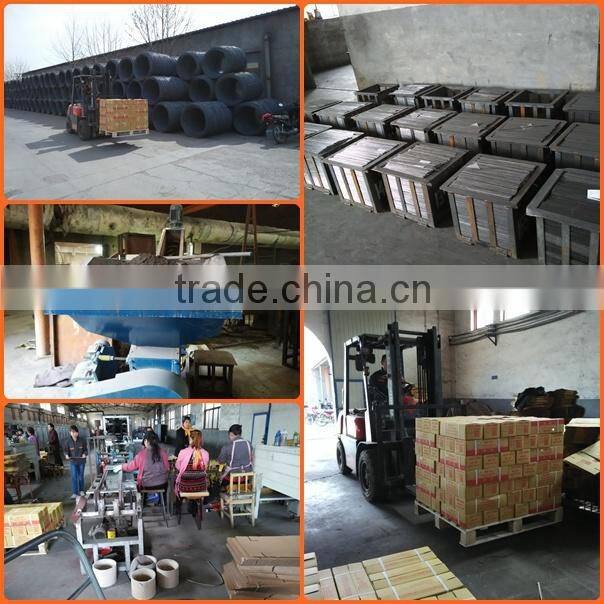

Factory Size (ters): | 5,000-10,000 square meters | |
Factory Location: | East Gaoqian Street, Sijiazhuang Town, Luquan Shijiazhuang city Hebei province China | |
Number of Production Lines: | 6 | |
Number of R&D Staff: | 10-15 People | |
Number of QC Staff: | 10-15 People | |
Contract Manufacturing: | OEM Service Offered Design Service Offered |
We maily produce and export the following products:
Carbon steel strcture welding rods ,like E6013 E7018 E6010 E6011 E7016,
Stainess steel electrode, Cast iron electrode.
We can satisfy customers' needs according to their national standards:
2.0*300mm, 2.5*300mm
2.5*350mm, 3.2*350mm
4.0*400mm, 5.0*400mm
MIG welding wire,Flux-cored welding wire,Sumbered arc welding wire,
CO2 Gas Shielded Welding Wire,ect.
We can also provide nearly every national standards:
AWS ER70S-6 0.8MM, 1.0MM, 1.2MM, 1.6MM.
