Variable-frequency Power Source

Variable-frequency Power Source thumbnail-1
Variable-frequency Power Source photo-1
US$ 100 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
goterpower
Model Number:
FP-122
Contact Supplier Request Quote Chat Now
Shenzhen Goter Power Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name goterpower
Model Number FP-122
Output Power Other, requirement
Output Type Other, Single or three phase
Size customized
Weight customized
Input Voltage 220v/380v
Output Voltage 0-300v
Type Other, AC/AC
Output Frequency can be a special custom-made to the 35-400Hz
Output Current 0.1A

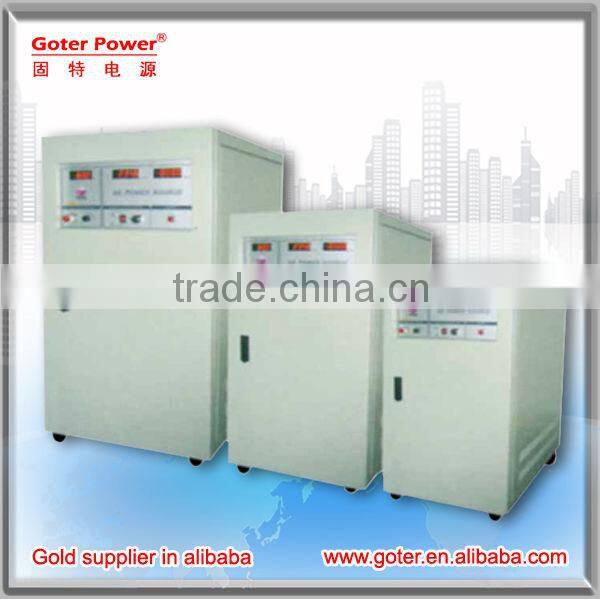

GTP Program-controlled variable frequency power supply picture



variable-frequency power source



Technical characteristic:

    1.High-precision, stable frequency and voltage with knob can quickly adjust the voltage and frequency.

    2.High precision, screen digital display: frequency, voltage, current, power, power factor.

    3.Quick response for status, regulating voltage response for 100% load/ unload in 2ms.

    4.Output frequency: 50Hz, 60Hz, 47 ~ 63Hz (can be a special custom-made to the 35-400Hz) 100Hz (optional), 200Hz (optional), 400Hz, load frequency stability of ± 0.1%.





1.      Output voltage: 0 ~ 300V (can be specially customized to 1000V), can simulate the world voltage load regulation accuracy of ± 0.5% (resistive load).

2.     with overvoltage, overcurrent, overload, over temperature, such as multiple protection and alarm functions





Voltage filter

DC/AC inverter

AC/DC Rectifier filter



Input no fuse switch

Output no fuse switch

Mains power inpout 50/60HZ

Quartz

oscillator



Sine wave Generator

Feedback circuit



Over current detection

Output current display

Output voltage display

Output frequyency display

Over Temperaturedetection



Over voltage detection

Fuse power-off circuit to detect



Output to load





Techinical data:

(GTP)Models MoMommmmModelMOdels

6103

6105

6110

6120

6130

6150

6160

61100

61150

61200

Capacity(KVA)Capacity

3

5

10

20

30

50

60

100

150

200

Circuit method

IGBT/SPWM method



AC input

1Φ2W220V±10% 50Hz/60Hz

3Φ4W 380V±10% 50Hz/60Hz



AC

output

Phases

single phases



V

Low voltag

0-150V



High voltage

0-300V



Frequency

47 Hz -63Hz,50 Hz,60 Hz,400 Hz



Max

A

A Low voltage

27.0

45.0

90

180

270

450

540

900

1350

1800

A

High voltage

13.5

22.5

45

90

135

225

270

450

675

900

Frequency stability

≤±0.1%



Load regulation

≤±0.5%



Waveform distortion

≤1%( resistive load under test)



Response time

≤2ms



Indicaor/resulution

Frequency

4 digital resolution 0.1Hz



Votlage

4 valid digital value   resolution 0.1V



Current

4 valid digital value   resolution 0.1A



Power

4 valid digital value   resolution 0.1W



Power factor

4 digital resolution 0.001



Protection device

Over voltage protection, overload protection, over current protection,, over heating, short circuit protection and alarm.



Cooling method

Forced fan cooling



safety standard

Insulation resisitance

500VDC/200MΩ



Voltage resistance insulation

1800VAC/5mA/1min



operation environment

Temperature 0°C-45°C, relative humidity 0-90%(no condensation)








Models

Models

(KVA)Capacity



Dimension (mm)W*L*H

(kg)Weight

GTP6103

3

420*520*600

70

GTP6105

5

85

GTP6110

10

900*450*710

180

GTP6120

20

1100*600*820

300

GTP6130

30

315

GTP6150

50

1200*800*1020

490

GTP6160

60

600

GTP61100

100

1500*800*1020

850

GTP61150

150

1800*800*1020

1200

GTP61200

200

1800
