Home > Electrical & Electronics > Power Supply & Distribution > Electric Power Fitting > Hook Type Spindle of Pin Type Insulators for High Voltage
US$ 1.5 - 5.45
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Maxwel
Model Number:
Insulator spindle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spindle for Pin Type Insulators for High VoltageUS$ 1.5 - 5.45MOQ: 500 Pieces -
High Voltage Insulator SpindleUS$ 1.5 - 5.45MOQ: 500 Pieces
-
Waterproof Kits / Rubber Mastic TapeNegotiableMOQ: 100 Boxes
-
Electric Heat Tube Heat Shrink TubeNegotiableMOQ: 2000 Meters
-
VC-1 Heat-shrinkable Galvanized TubeNegotiableMOQ: 100000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Maxwel
Model Number
Insulator spindle
Specifications
Quality warranty!Failing Load: 10KN
15 Years Mfg experiences
On time delivery!
High Voltage Insulator spindles
Used for insulator and fixed the conducter

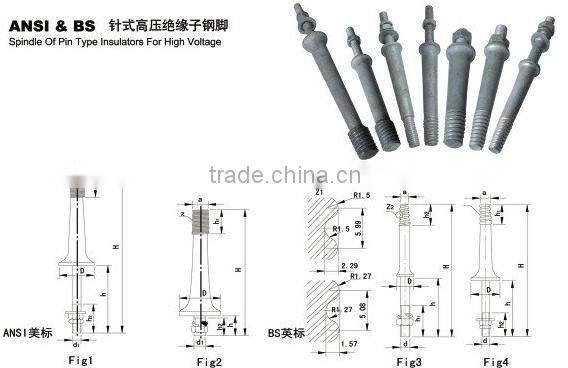

Spindle Of Pin Type Insulators For High Voltage
Main Size
Fig. NO | Main Dimensions(mm) | Mechanical Strength(KN) | Class ANSI | Weight(kg) | ||||||
H | D | h | h1 | h2 | a | d1 | ||||
1 | 330 | 76 | 178 | 51 | 76 | 34.9 | 20 | 11 | 56-1 | 1.9 |
1 | 356 | 76 | 178 | 51 | 76 | 34.9 | 20 | 9 | 56-2 | 2.2 |
1 | 407 | 89 | 178 | 51 | 76 | 34.9 | 20 | 10 | 56-3 | 2.5 |
1 | 432 | 89 | 178 | 51 | 76 | 34.9 | 20 | 9 | 56-4 | 3.25 |
1 | 343 | 45 | 165 | 51 | 76 | 34.9 | 20 | 6 | 56-2 | 1.6 |
2 | 198 | 76 | 45 | 51 | 40 | 34.9 | 20 | 11 | 56-1 | 1.54 |
2 | 223 | 76 | 45 | 51 | 40 | 34.9 | 20 | 9 | 56-2 | 1.87 |
2 | 274 | 89 | 45 | 51 | 40 | 34.9 | 20 | 10 | 56-3 | 2.17 |
2 | 299 | 89 | 45 | 51 | 40 | 34.9 | 20 | 9 | 56-4 | 2.7 |
2 | 223 | 45 | 45 | 51 | 40 | 34.9 | 20 | 6 | 56-2 | 1.3 |
1 | 356 | 76 | 76 | 51 | 76 | 34.9 | 16 | 5 | 56-2 | 1.9 |
