Specifications
Polyethylene Foam Sheet Making Machine1.single screw design
2.high efficiency
3.good quality with CE Approved

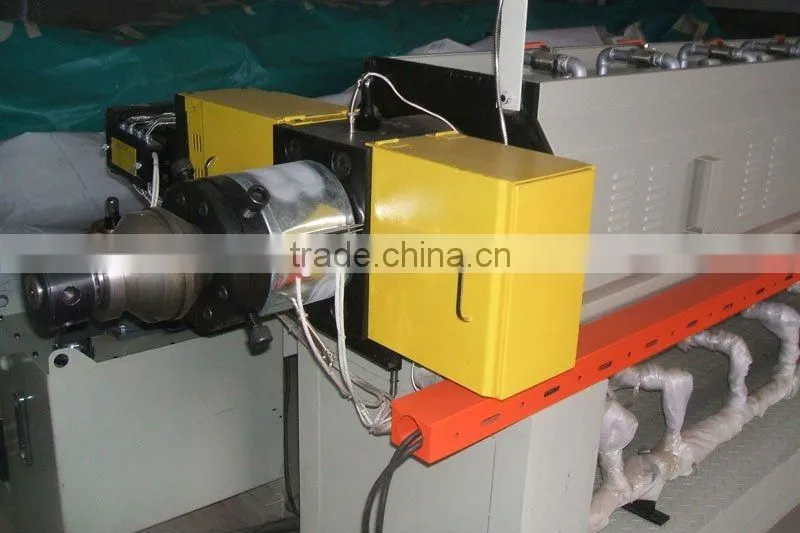

Top Performance Polyethylene Foam Sheet Making Machine
We specialize in making plastic machines for 30 years Epe foam sheet extrusion line with advanced technology and have accumulated vast experience. Our machines are sold well in many countries such as England, Brazil, Portugal, India, Russia, Uzbekistan, Iran, Indonesia, Cambodia, Vietnam etc. Sincerely hope to have chance to cooperate with you in near future.
Machine Instruction
EPE foam sheet extrusion line can produce foam sheet, net, tube, rob, edge and profile by changing mould head.
EPE foam sheet extruder produces closed fine cell Polyethylene foam sheet by our unique designed screw and barrel system using Butane, Tal powder and GMS (surface active agent) by accumulated experience and advanced technology.

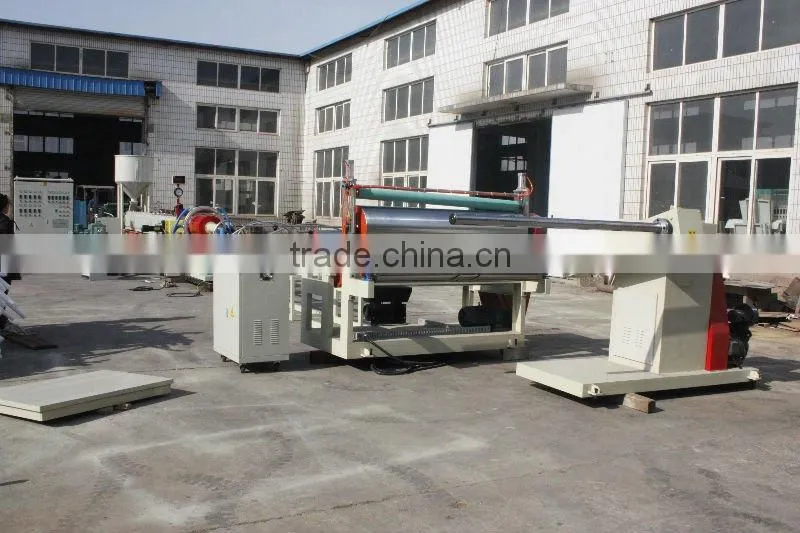

Top Performance Polyethylene Foam Sheet Making Machine
EPE foam machine can make different foam sheet width and thickness according to customer requirement. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile and so on through changing mould and machine parts.
The foam sheet has the features of dampproof , shockproof, soundproof, heat preservation and good plasticity. After laminating, the foam sheet will get high dampproof performance. These products are mainly used for placing under floor.
Applications:
I. Characteristics of Product
--High resilience and buoyant effect.
--Effective insulating capability.
--Low thermal conductivity.
--Negligent absorption and water permeability.
--Chemical resistant.
--Effective and safe to handle in installation application.
--Non-toxic and environmental friendly
--Fine round closed-cell cellular structure assure
--Excellent flexibility.
--100% recyclable and reusable.
II. Applications of Product
--External cushioning and packing material.
--Packaging for high-grade goods, industrial electronic parts.
--Construction materials for insulation
--Educational material
--Sport material
--Life vest etc.
Main Technical Parameters
Model |
Unit |
EPE90 |
EPE105 |
EPE120 |
EPE150 |
EPE170 |
Screw diameter L/D |
|
90/55:1 |
105/55:1 |
120/55:1 |
150/55:1 |
170/55:1 |
Screw speed |
r/min |
5-45 |
5-45 |
5-45 |
5-45 |
5-45 |
Foam rate |
|
20-40 |
20-40 |
20-40 |
20-40 |
20-40 |
Width of product |
mm |
1000-1400 |
1000-1500 |
1000-2000 |
1000-2000 |
1000-2000 |
Thickness of product |
mm |
0.5-4.5 |
0.5-6.5 |
0.8-8 |
1-12 |
2-16 |
Cooling method |
|
cooled by water |
||||
Installed capacity |
kw |
90 |
100 |
120 |
150 |
180 |
Dimensions(L×W×H)(approx) |
m |
22×2.3×2.2 |
23×2.3×2.2 |
25×2.3×2.2 |
30×2.3×2.2 |
32×2.3×2.2 |
Total weight(approx) |
t |
8.5 |
9 |
12 |
15 |
17 |
