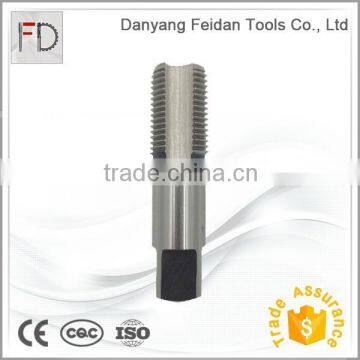

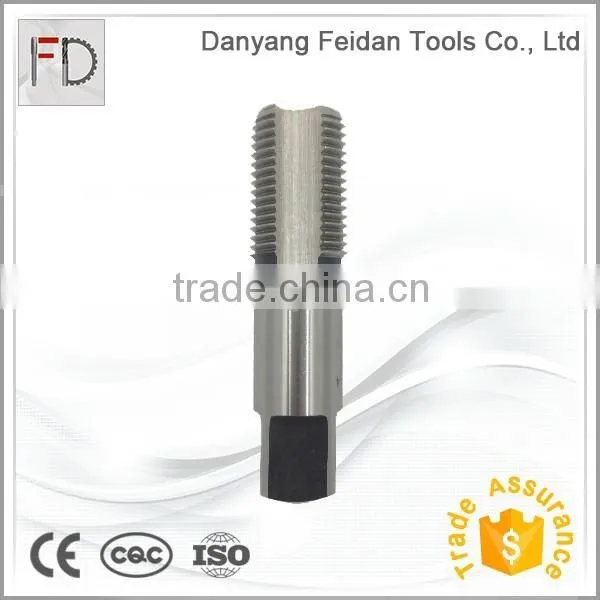

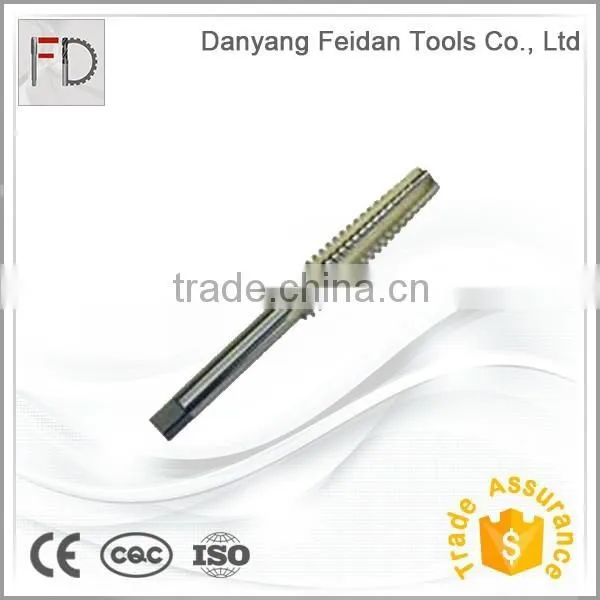

HSS Machine Taps
Different standards specification
| ISO Standard (Straight Fluted) | ||||||
| Coarse Thread (M) | ||||||
| M1.4×0.30 | M2.2×0.45 | M4.0×0.70 | M7.0×1.00 | M9.0×1.25 | M14×2.00 | M22×2.50 |
| M1.6×0.35 | M2.5×0.45 | M4.5×0.75 | M6.0×1.00 | M10×1.50 | M16×2.00 | M24×3.00 |
| M1.8×0.35 | M3.0×0.50 | M5.0×0.80 | M7.0×1.00 | M11×1.50 | M18×2.50 | M27×3.00 |
| M2.0×0.40 | M3.5×0.60 | M6.0×1.00 | M8.0×1.25 | M12×1.75 | M20×2.50 | |
| Fine Thread (MF) | ||||||
| M1.4×0.20 | M3.5×0.35 | M7.0×0.75 | M10×0.75 | M12×1.50 | M18×1.50 | M22×2.00 |
| M1.6×0.20 | M4.0×0.50 | M6.0×0.75 | M10×1.00 | M14×1.00 | M18×2.00 | M24×1.00 |
| M1.8×0.20 | M4.5×0.50 | M7.0×0.75 | M10×1.25 | M14×1.25 | M20×1.00 | M24×1.50 |
| M2.0×0.25 | M5.0×0.50 | M8.0×0.75 | M11×0.75 | M14×1.50 | M20×1.50 | M24×2.00 |
| M2.2×0.25 | M5.5×0.50 | M8.0×1.00 | M11×1.00 | M16×1.00 | M20×2.00 | M27×1.00 |
| M2.5×0.35 | M6.0×0.50 | M9.0×0.75 | M12×1.00 | M16×1.50 | M22×1.00 | M27×1.50 |
| M3.0×0.35 | M6.0×0.75 | M9.0×1.00 | M12×1.25 | M18×1.00 | M22×1.50 | M27×2.00 |

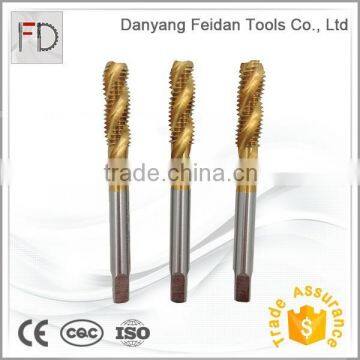

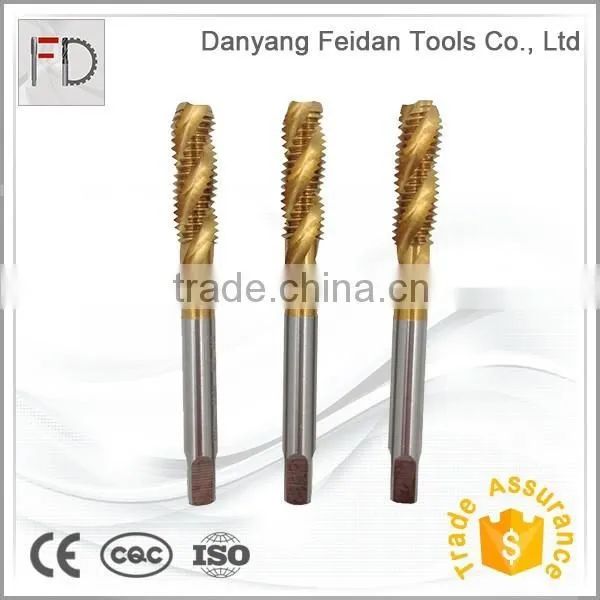

| ISO Standard (Spiral Fluted) | ||||||
| Coarse Thread (M) | Fine Thread (MF) | |||||
| M3.0×0.50 | M6.0×1.00 | M11×1.50 | M3.0×0.35 | M6.0×0.75 | M12×1.25 | |
| M3.5×0.60 | M7.0×1.00 | M12×1.75 | M3.5×0.35 | M7.0×0.75 | M12×1.50 | |
| M4.0×0.70 | M8.0×1.25 | M14×2.00 | M4.0×0.50 | M8.0×1.00 | M14×1.25 | |
| M4.5×0.75 | M9.0×1.25 | M16×2.00 | M4.5×0.50 | M10×1.00 | M14×1.50 | |
| M5.0×0.80 | M10×1.50 | M5.0×0.50 | M10×1.25 | M16×1.50 | ||

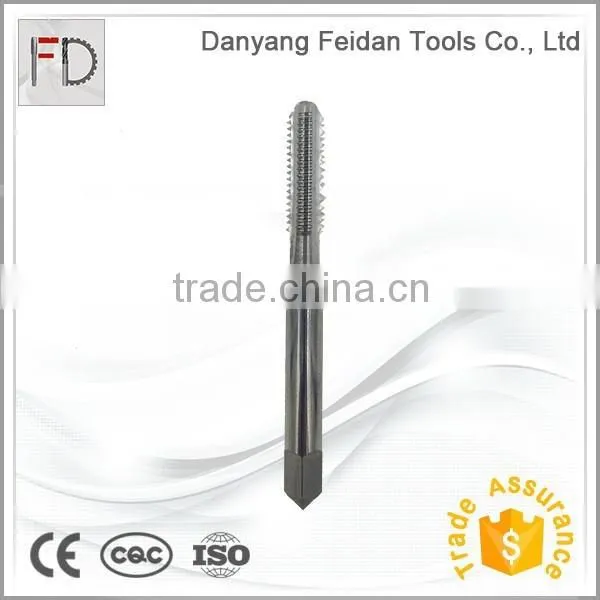

| ISO Standard (Spiral Pointed) | ||||||
| Coarse Thread (M) | Fine Thread (MF) | |||||
| M3.0×0.50 | M6.0×1.00 | M11×1.50 | M3.0×0.35 | M6.0×0.75 | M12×1.25 | |
| M3.5×0.60 | M7.0×1.00 | M12×1.75 | M4.0×0.50 | M7.0×0.75 | M12×1.50 | |
| M4.0×0.70 | M8.0×1.25 | M14×2.00 | M4.5×0.50 | M8.0×1.00 | M14×1.25 | |
| M4.5×0.75 | M9.0×1.25 | M16×2.00 | M5.0×0.50 | M10×1.00 | M14×1.50 | |
| M5.0×0.80 | M10×1.50 | M5.5×0.50 | M10×1.25 | M16×1.50 | ||
| ISO Standard (Thread Forming) | ||||||
| Coarse Thread (M) | Fine Thread (MF) | |||||
| M2.0×0.40 | M4.5×0.75 | M10×1.50 | M2.0×0.25 | M4.5×0.50 | M10×1.25 | |
| M2.2×0.45 | M5.0×0.80 | M11×1.50 | M2.2×0.25 | M5.0×0.50 | M12×1.25 | |
| M2.5×0.45 | M6.0×1.00 | M12×1.75 | M2.5×0.35 | M6.0×0.75 | M12×1.50 | |
| M3.0×0.50 | M7.0×1.00 | M14×2.00 | M3.0×0.35 | M7.0×0.75 | M14×1.25 | |
| M3.5×0.60 | M8.0×1.25 | M16×2.00 | M3.5×0.35 | M8.0×1.00 | M14×1.50 | |
| M4.0×0.70 | M9.0×1.25 | M4.0×0.50 | M10×1.00 | M16×1.50 | ||
| ANSI Standard | ||||||
| Coarse Thread (UNC) | Fine Thread (UNF) | |||||
| NO.5-40 | 1/4-20 | 9/16-12 | NO.5-44 | 1/4-28 | 9/16-18 | |
| NO.6-32 | 5/16-18 | 5/8-11 | NO.6-40 | 5/16-28 | 5/8-18 | |
| NO.8-32 | 3/8-16 | 3/4-10 | NO.8-36 | 3/8-24 | 3/4-16 | |
| NO.10-24 | 7/16-14 | 7/8-9 | NO.10-32 | 7/16-20 | 7/8-14 | |
| NO.12-24 | 1/2-13 | 1-8 | NO.12-28 | 1/2-20 | 1-12 | |
| DIN352 | ||||||
| Coarse Thread | ||||||
| M3.0×0.50 | M4.5×0.75 | M7.0×1.00 | M10×1.50 | M14×2.00 | M20×2.50 | M27×3.00 |
| M3.5×0.60 | M5.0×0.80 | M8.0×1.25 | M11×1.50 | M16×2.00 | M22×2.50 | |
| M4.0×0.70 | M6.0×1.00 | M9.0×1.25 | M12×1.75 | M18×2.50 | M24×3.00 | |
| DIN371 | ||||||
| Coarse Thread | Fine Thread | |||||
| M3.0×0.50 | M6.0×1.00 | M3.0×0.35 | M6.0×0.50 | M9.0×0.75 | ||
| M3.5×0.60 | M7.0×1.00 | M3.5×0.35 | M6.0×0.75 | M9.0×1.00 | ||
| M4.0×0.70 | M8.0×1.25 | M4.0×0.50 | M7.0×0.75 | M10×1.00 | ||
| M4.5×0.75 | M9.0×1.25 | M4.5×0.50 | M8.0×0.75 | M10×1.25 | ||
| M5.0×0.80 | M10×1.50 | M5.0×0.50 | M8.0×1.00 | |||
| DIN374 | ||||||
| Fine Thread | ||||||
| M3.0×0.35 | M6.0×0.75 | M10×1.00 | M14×1.00 | M16×1.50 | M20×2.00 | M24×2.00 |
| M3.5×0.35 | M7.0×0.75 | M10×1.25 | M14×1.25 | M18×1.00 | M22×1.00 | M25×1.50 |
| M4.0×0.50 | M8.0×0.75 | M11×1.00 | M14×1.50 | M18×1.50 | M22×1.50 | M26×1.50 |
| M4.5×0.50 | M8.0×1.00 | M12×1.00 | M15×1.00 | M18×2.00 | M22×2.00 | M27×1.50 |
| M5.0×0.50 | M9.0×1.00 | M12×1.25 | M15×1.50 | M20×1.00 | M24×1.00 | M27×2.00 |
| M6.0×0.50 | M10×0.75 | M12×1.50 | M16×1.00 | M20×1.50 | M24×1.50 | |
| DIN374 | ||||||
| Coarse Thread | ||||||
| M3.0×0.50 | M4.5×0.75 | M7.0×1.00 | M10×1.50 | M14×2.00 | M20×2.50 | M27×3.00 |
| M3.5×0.60 | M5.0×0.80 | M8.0×1.25 | M11×1.50 | M16×2.00 | M22×2.50 | |
| M4.0×0.70 | M6.0×1.00 | M9.0×1.25 | M12×1.75 | M18×2.50 | M24×3.00 | |
| BS Standard | ||||||
| Coarse Thread (BSW) | Fine Thread (BSF) | |||||
| 1/8-40 | 5/16-18 | 5/8-11 | 3/16-32 | 3/8-20 | 9/16-16 | |
| 3/16-24 | 3/8-16 | 3/4-10 | 7/32-28 | 5/16-22 | 5/8-14 | |
| 1/4-20 | 7/16-14 | 7/8-9 | 1/4-26 | 3/8-20 | 3/4-12 | |
| 5/16-18 | 1/2-12 | 1-8 | 9/32-26 | 7/16-18 | 7/8-11 | |
| 3/8-16 | 9/16-12 | 5/16-22 | 1/2-16 | 1-10 | ||
| JIS Standard | ||||||
| Coarse Thread | Fine Thread | |||||
| M3×0.5 | M12×1.75 | M3×0.35 | M8×0.75 | M14×1 | M20×2 | |
| M3.5×0.6 | M14×2 | M3.5×0.35 | M8×1 | M14×1.25 | M22×1.5 | |
| M4×0.7 | M16×2 | M4×0.5 | M10×0.75 | M14×1.5 | M22×2 | |
| M4.5×0.75 | M18×2.5 | M4.5×0.5 | M10×1 | M16×1 | M24×1.5 | |
| M5×0.8 | M20×2.5 | M5×0.5 | M10×1.25 | M16×1.5 | M24×2 | |
| M6×1 | M22×2.5 | M6×0.5 | M12×1 | M18×1.5 | ||
| M8×1.25 | M24×3 | M6×0.75 | M12×1.25 | M18×2 | ||
| M10×1.5 | M8×0.5 | M12×1.5 | M20×1.5 | |||
Our advantages
1.Manufacturer:Our company was established in 2006. We have been working on the research and development, manufacturing and trade business of all kinds of hardware tools especially the machine taps. Our company address:Gaoshiqiao Industry Park, Feida Village, Houxiang, Danbei Town, Danyang City, Jiangsu Province, China.
2.High quality: We are located in the tools township of China, have abundant and reliable raw materials. We also master mature manufacturing technologies and strict quality control system. So we can maintain stable and reliable product quality.
3.Quick delivery: Within 30 days after we receive your advance payment.
4.Personalized services: We are always ready to hear from you and will respond to your enquiry immediately.
5.Cometitive price: We provide the straight factory price to you.
6.OEM accepted: We are glad to make the products according to your requirement.
7.Non-standard: We can also make non-standard products according to your detailed sizes.
Our services
1.LOGO Printing: We can print your LOGO on the handle and package.
2.Samples: We are glad to provde free samples.
Payment
1.Terms of payment: 30% of the goods payment should be paid in advance as deposit. The balance need to be paid before delivery.
2.Terms of trading: FOB, CFR, CIF.
Process flow
Package
Company appearance
