12W*18 uniform color mixing 1 meter waterproofr led bar wall washer for stage outdoor led wall washer led stripe outdoor

Name: 12W*18 uniform color mixing 1 meter waterproofr led bar wall washer for stage outdoor led wall washer led stripe outdoor
Brand: ovation
Price: USD $39 - 299 / Piece

FOB Price

USD $39 - $299 / Piece

1 Piece(Min.Order)

Supply Ability 5300 Piece / Pieces per Month
Port GUANGZHOU
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	tianxin	Warranty(Year):	2	Input Voltage(V):	100v-240v nomial, 50/60 Hz
Lamp Power(W):	320	Lamp Luminous Efficiency(lm/w):	1770	Color Temperature(CCT):	Pure White
Working Temperature(℃):	-20, +50	Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum
IP Rating:	IP65	Certification:	CE	Place of Origin:	Guangdong, China
Brand Name:	ovation	Model Number:	tri-color bar 1228

Product Description

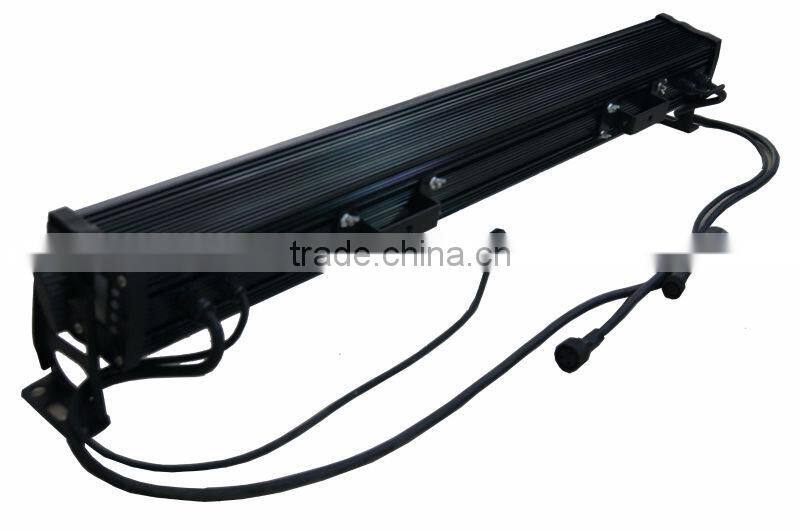

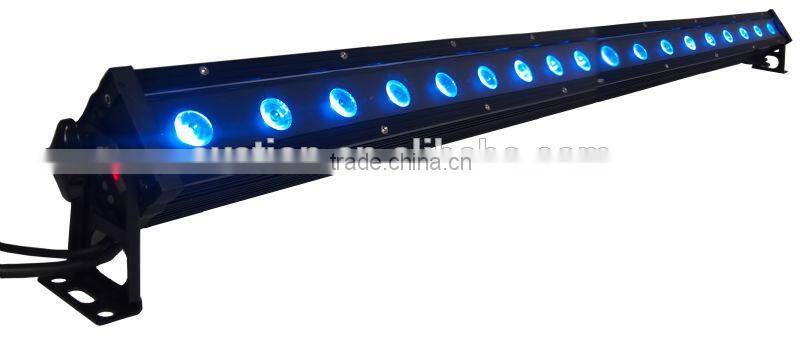

12WX18 6 IN 1(RGBWA+UV)LED LIGHT BAR

Specifications
Physical
Length	25cm
Width	22cm
Height	35cm
Weight	4.5kg
Dynamic effects
Color mixing	RGBWAUV
Electronic dimming	0-100% linear dimming
Strobe and pulse effects	0-25 times/second ,flicker free
Electronic "shutter" effect	instant open and blackout
Control and Programming
Control options	DMX, stand alone
DMX channels	7/11CH
White balance control	RGBAUV adjustment
DMX address setting	control panel with LCD display
Protocol	DMX 512

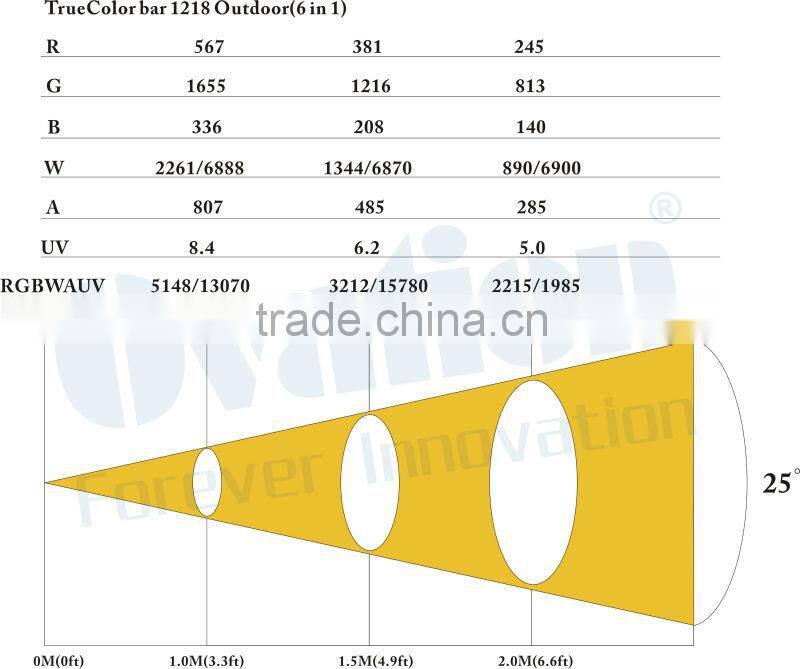

Optics
Light source	18 *12W 6 in 1 RGBWAUV
Minimum LED lifetime	50 000 hours
Construction
Housing	High-impact ,flame-retardant , excellent
Color	black
Protection rating	IP65
Installation

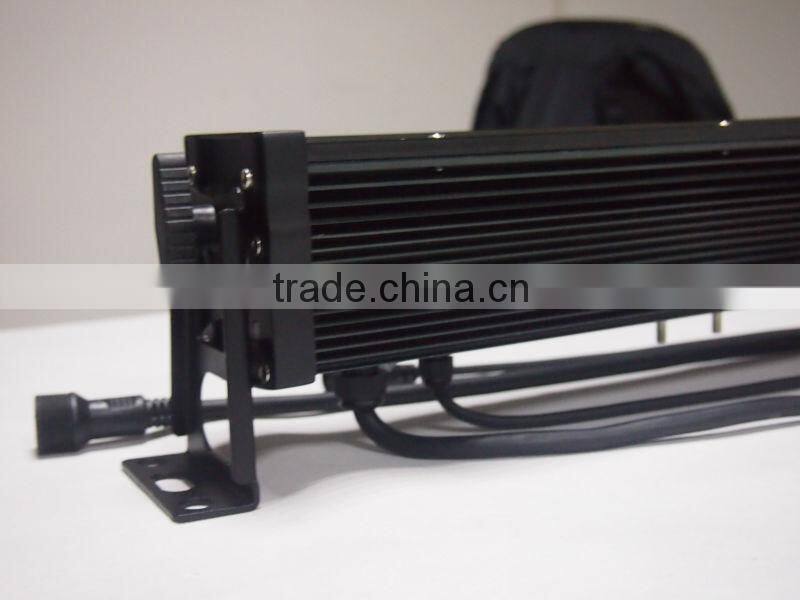

Mounting	Adjustment bracket, surface or truss mount
Orientation	Any
Location	Outdoor/indoor use
Connections
AC power in/thru	Neutrik Powercon
DMX data in/thru	3-pin XLR
Electrical
AC power in/thru	100v-240v nomial, 50/60 Hz
Rated power	320w
Thermal
Cooling	Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max)	40 centigrade (104 F)
Minimum ambient temperature (Ta min)	0 centigrade (32 F )

CHANNEL MODE

11 Channel mode	Function	Function Control
CH1	Dimmer	0:shut 1-255:dimming
CH2	Strobe	0-19:strobe shut; 20-255:strobe speed from slow to fast
CH3	Red	0:shut 1-255:dimming
CH4	Green	0:shut 1-255:dimming
CH5	Blue	0:shut 1-255:dimming
CH6	White	0:shut 1-255:dimming
CH7	Amber	0:shut 1-255 : dimming
CH8	UV	0:shut 1-255 : dimming
CH9	CT	0-10 : OFF 11-255 : 3000K-8000K
CH10	Color mixing	0 -9 : OFF 10-255 : The color wheel ( Rainbow effect )
CH11	Color Macro	0-5 : OFF 6-7 : Orange 8-13 : UV ..... 129-255 : Color Macro

Trade Terms
MOQ	1pcs
Price term	EXW Or FOB
Shipping method	By DHL,UPS,Fedax if small order; And ship by sea or air if bulk order
Payment terms	T/T or L/C 30% for deposit,the balance 70% before shipment.
Sample time	3-5 workdays after received the payment
Lead time	Usually 3-30 workdays depend on the quantity after we received the deposit
Packing	Carton or Flight case(Flight case need to buy)
After sells service	within three year,if there is damage, we free Provide all accessories and services,Except for glass parts; After one year, we provide all the accessories, the parts cost only charge
Accept	OEM

Mini moving head beam Robot 2R

Any interested, Pls contact us!

Contact Person: Christina Wong

Skype:ovationis01

Mob:0086-18939943491

Trade manager:cn1501492591
