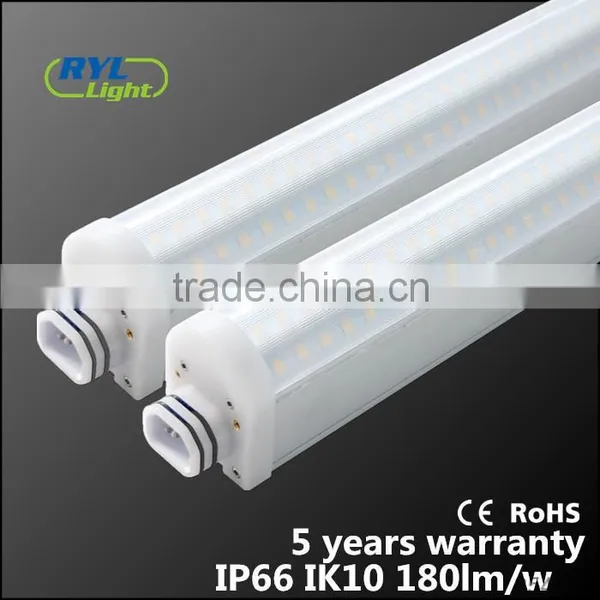

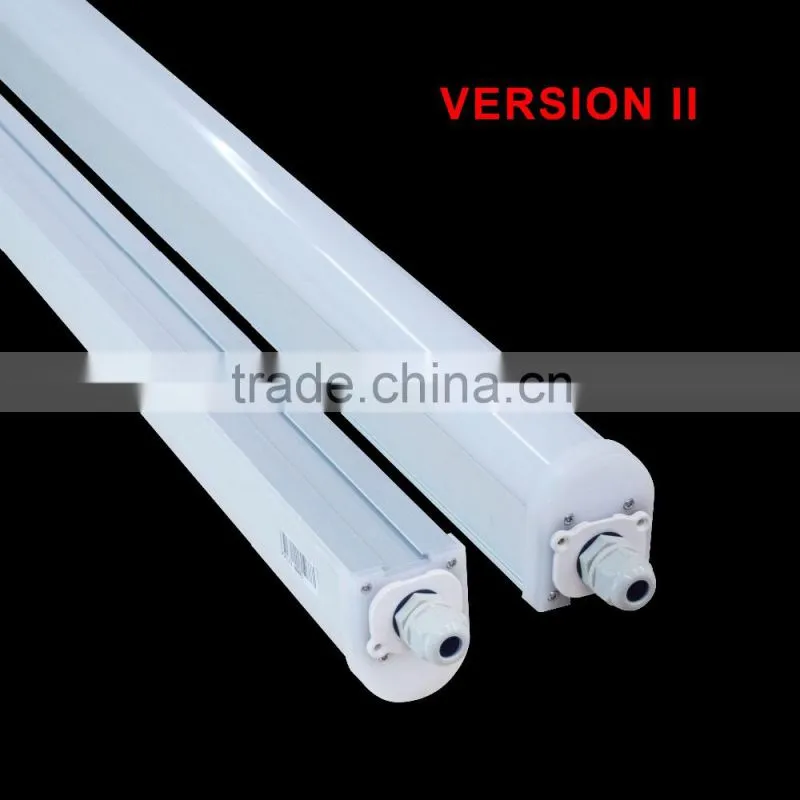

up to 160lm/w wholesale standard gapless interconnection waterproof dustproof IP66 led linear light fixture
Main features:
The tri-proof LED light fixture is a kind of top grade lighting products which is composed by a number of high-brightness LEDs. It is ideal solution for commercial and industrial lighting projects.

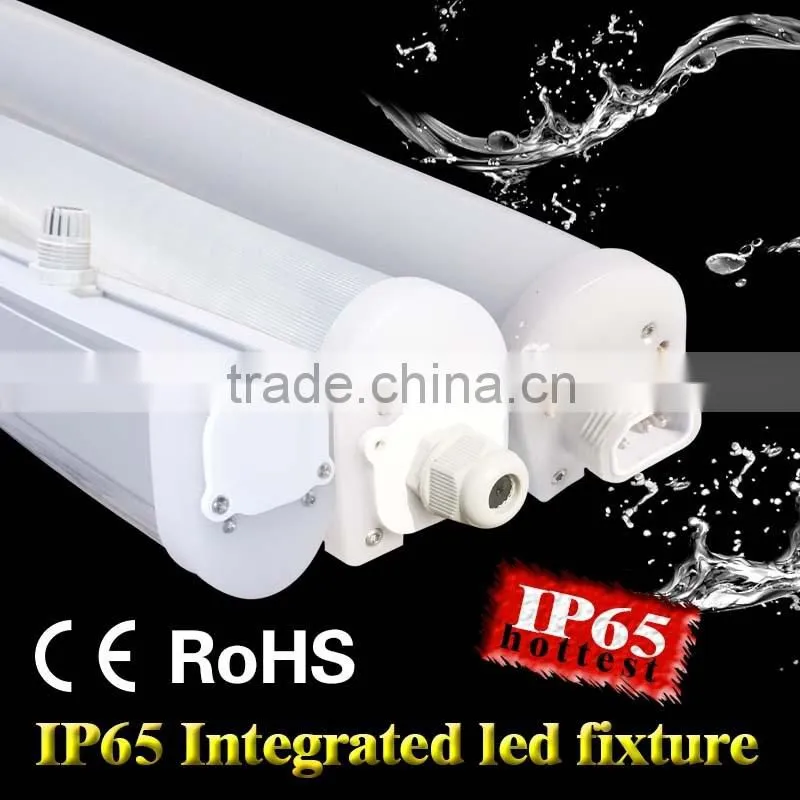

1. Tri-proof: IP65 water proof, dust proof, corrosion proof

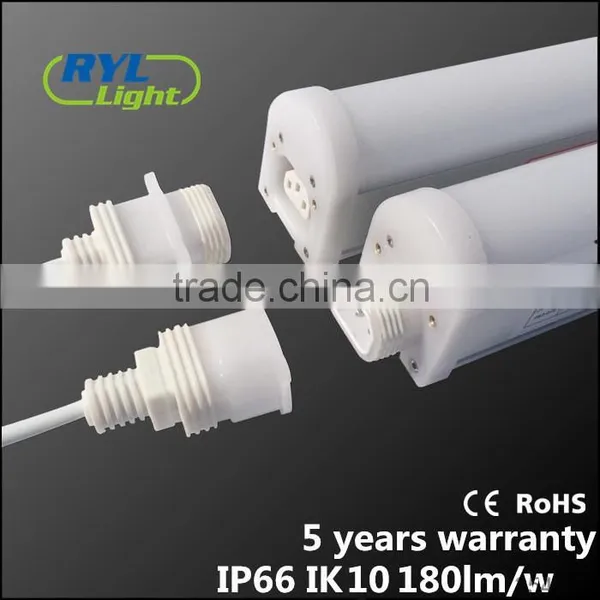

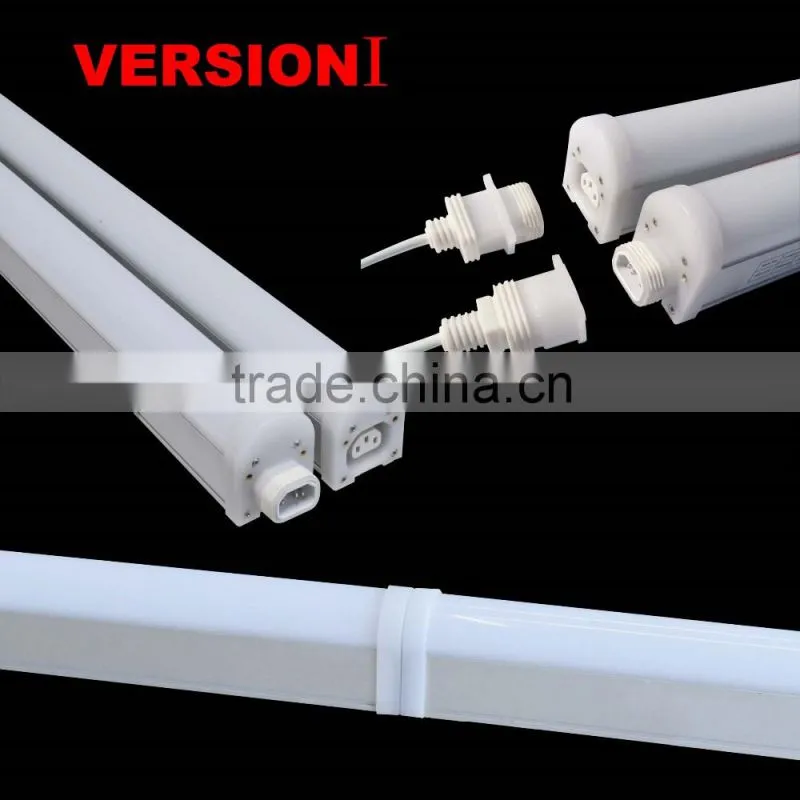

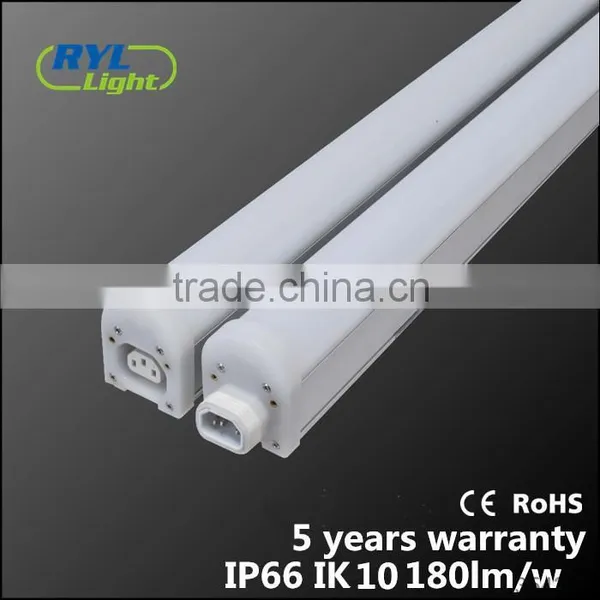

2. Gapless interconnection, easy installation, no dark space
3. High efficiency: up to 160lm/w

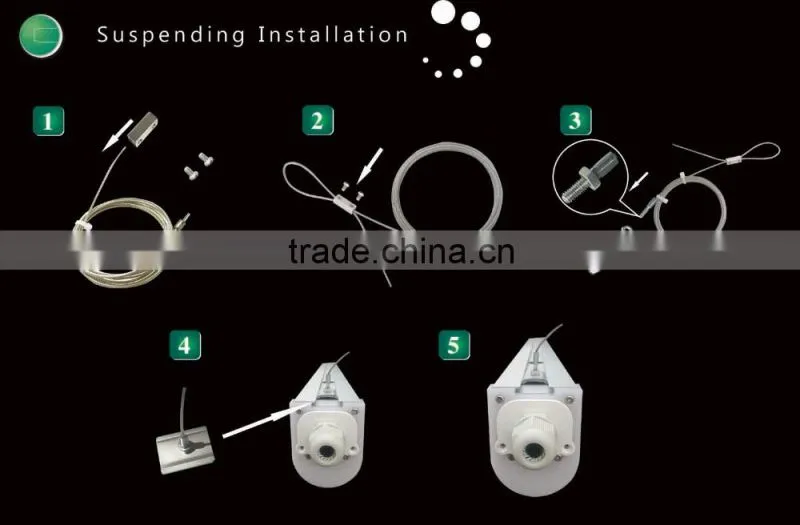

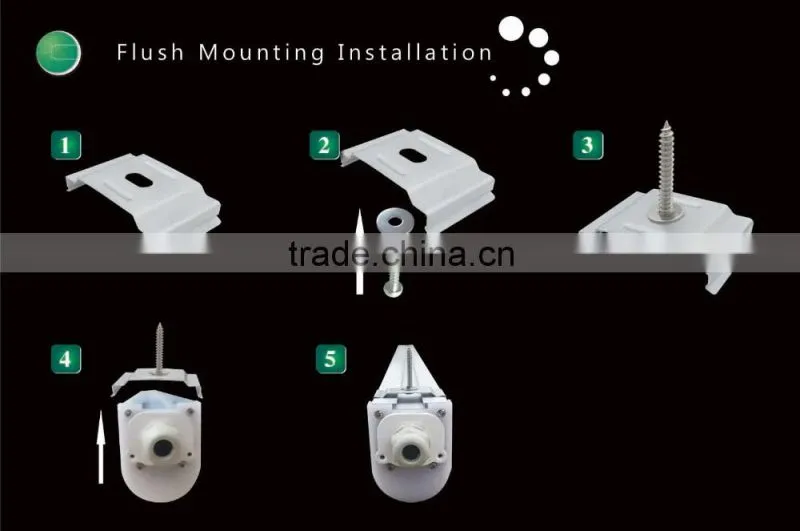

4. Various installation ways: flush mounting, suspending

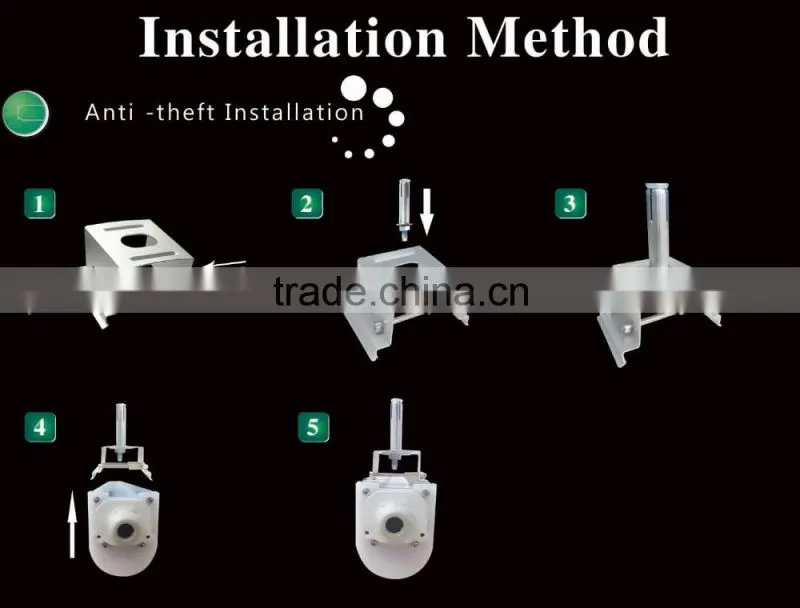

5. Unique anti-theft design
6. Cover type: clear, striped, striped&frosted

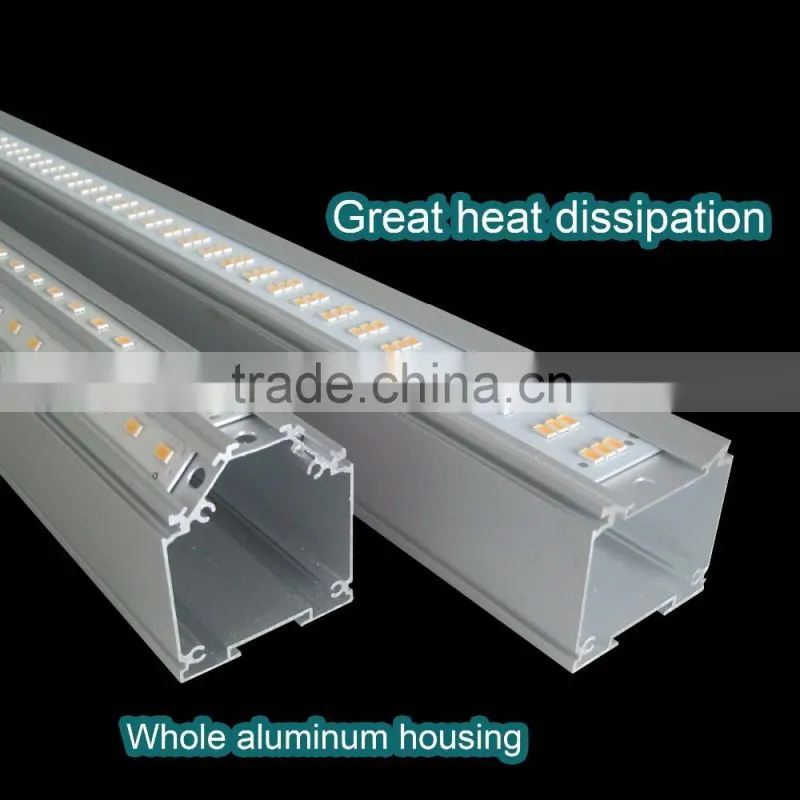

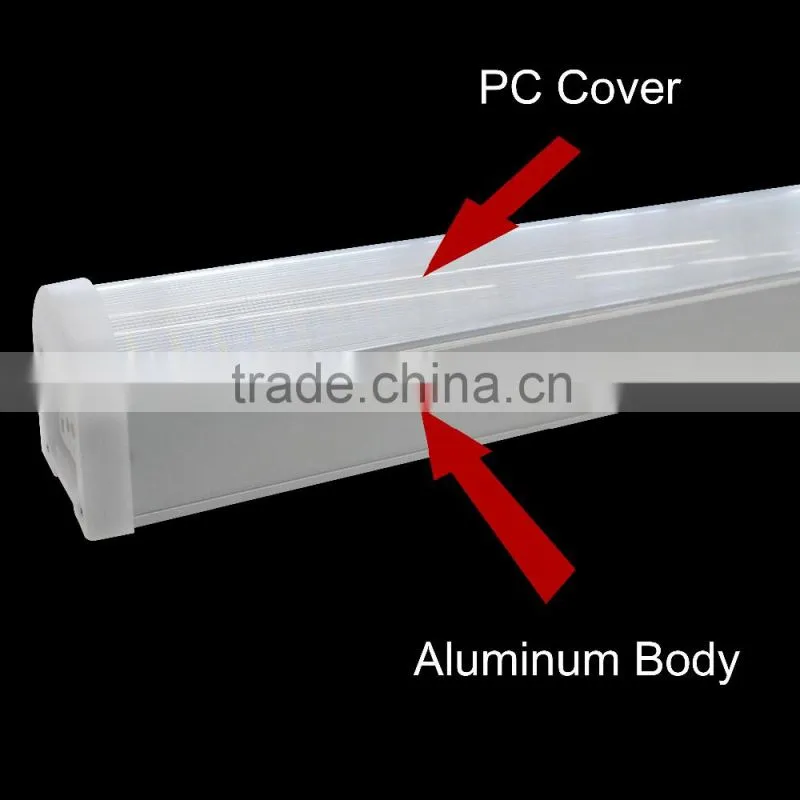

7. Material(PC+AL): light weight, high strength, excellent heat dissipation
8. Options: dimming function(1-10v or DALI), emergency function(battery backup), motion sensor(infrared sensor, microwave sensor)
9. 5 years warranty: lifespan>50000hrs(L70&B50)
Parameters:
| LED | CCT | Beam Angle | Length | Power | Lumen |
|
Samsung 5630 |
Standard: 110lm/W (at 5000K Striped-Frosted cover) | ||||
|
4000K 5000K |
120º | 1200mm | 36W | 3960lm±5% | |
| 160° | |||||
| 120º | 1500mm | 65W | 7150lm±5% | ||
| 160° | |||||
| Premium: 125lm/W (at 5000K Striped-Frosted cover) | |||||
|
4000K 5000K |
120º | 1200mm | 36W | 4500lm±5% | |
| 160° | |||||
| 120º | 1500mm | 65W | 8125lm±5% | ||
| 160° | |||||
|
Epistar 2835 |
Standard: 100lm/W (at 5000K Striped-Frosted cover) | ||||
|
4000K 5000K |
120º | 1200mm | 36W | 3600lm±5% | |
| 160° | |||||
| 120º | 1500mm | 65W | 6500lm±5% | ||
| 160° | |||||
| Premium: 110lm/W (at 5000K Striped-Frosted cover) | |||||
|
4000K 5000K |
120º | 1200mm | 36W | 3960lm±5% | |
| 160° | |||||
| 120º | 1500mm | 65W | 7150lm±5% | ||
| 160° | |||||
|
Epistar 2835 |
Super High Lumen:150lm/W (at 5000K Striped-Frosted cover) & 160lm/w (at 5000K Striped-clear cover) | ||||
|
4000K 5000K |
120º | 1200mm | 28W | 4200lm±5% | |
| 120º | 1500mm | 56W | 8400lm±5% | ||
|
Osram 3030 |
Narrow Beam Angle | ||||
|
4000K 5000K |
30º | 1500mm | 65W | 6500lm±5% | |
| 45º | 1500mm | 65W | 6500lm±5% | ||
|
Osram 3030 |
Batwing | ||||
|
4000K 5000K |
2*20º | 1500mm | 65W | 7150lm±5% | |
| 2*30º | 1500mm | 65W | 7150lm±5% | ||
|
Samsung 5630 |
AC Driver 100lm/W (at 5000K Striped-Frosted cover) | ||||
|
4000K 5000K |
120º | 1500mm | 65W | 6500lm±5% | |
| 120º | 1200mm | 36W | 3600lm±5% | ||
• 10 years' experience in design and manufacturing of Led lights
• Professional R&D team covering electronics, optics and structure engineering

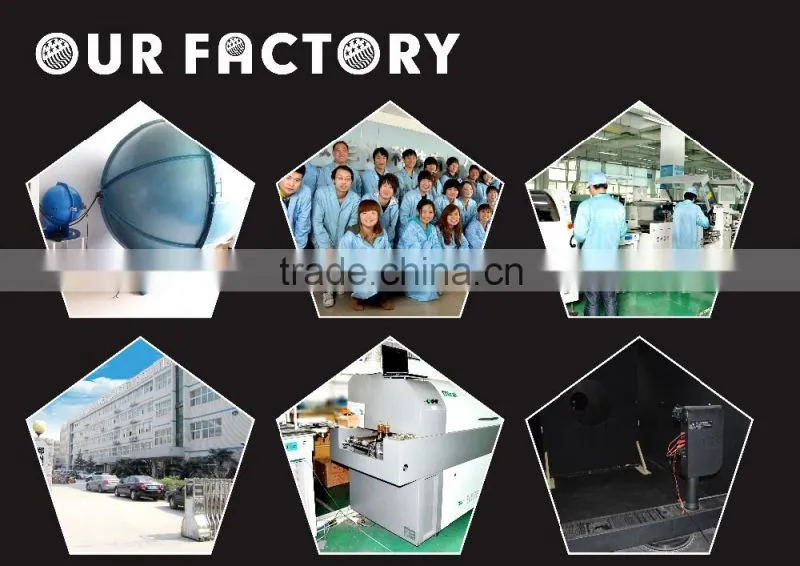

• Complete sets of devices and equipments for quality control and production(SMT, Gonio-photometer/IES, Dialux Simulation, Lead-Free Reflow Oven, Light Source Analysis System, etc.)
• All products export to Europe and North America
• wholesale, ETL, VDE, TUV, ENEC, IEC, CE, RoHS & ISO9001
Any questions or requirements, please do not hesitate to contact us.
