Truck Mounted Jib Crane For Sale

FOB Price

US$ 2,000 - 28,000 / Set

1 Set(Min. Order)

Port Any port of China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Widely for all kinds of working area
Rated Loading Capacity	10 ton	Rated Lifting Moment	As design
Max. Lifting Load	10 ton	Max. Lifting Height	10m
Span	5m	Place of Origin	China
Brand Name	Santo	Model Number	BZ
Certification	CE ISO	Warranty	24 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Truck Mounted Jib Crane For Sale

This floor mounted slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications.

The SHENGQI design allows maximum height of lift in restricted areas.

Crane comes complete with the following:

Set of signs to meet workcover requirements.
15 year structural warranty certificate.
Operator and maintenance manual.
Crane is supplied with end warning stripes, capacity sign & data plate.

Note:

Swing distance and height can be modified on request.
Suitability of existing base structure for imposed loads is the responsibility of the purchaser.

Features:

Model Capacity Range: 0.5 ton to 10 ton
Outreach Range: 2m to 12m
Maximum Slew: 360 degrees
Surface Treatment: Indoor or Outdoor Paint System
Cranes Built to Quality Standard ISO9001

Crane Options:

Hoist and Trolley (motorised or manual)
Jib Lock
Slew limits
Motorised or Manual Slew Drives
Crane Electrics
Explosion Protection in accordance to ATEX
Custom Paint Systems, Hot Dip Galvanised

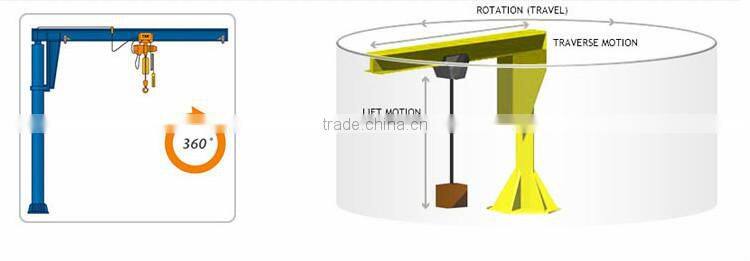

Sketch & Parameters


	Load Capacity:
	0.5 ton, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton

	Arm Length, Span:
	2m on wards

	Lift Height:
	1.5m onwards

Load Capacity, t	Arm Length, A, m	Lift Height, h, m	Total Height, H, m	Lift Speed, m/min	Travel Speed, m/min
0.5	As Required	1.5	h+0.5	7	10/20
1	As Required	1.5	h+0.55	8	10/20
2	As Required	1.5	h+0.55	8	10/20
3	As Required	1.5	h+0.6	8	10/20
5	As Required	1.5	h+0.7	7	10/20
10	As Required	1.5	h+0.75	7	10/20

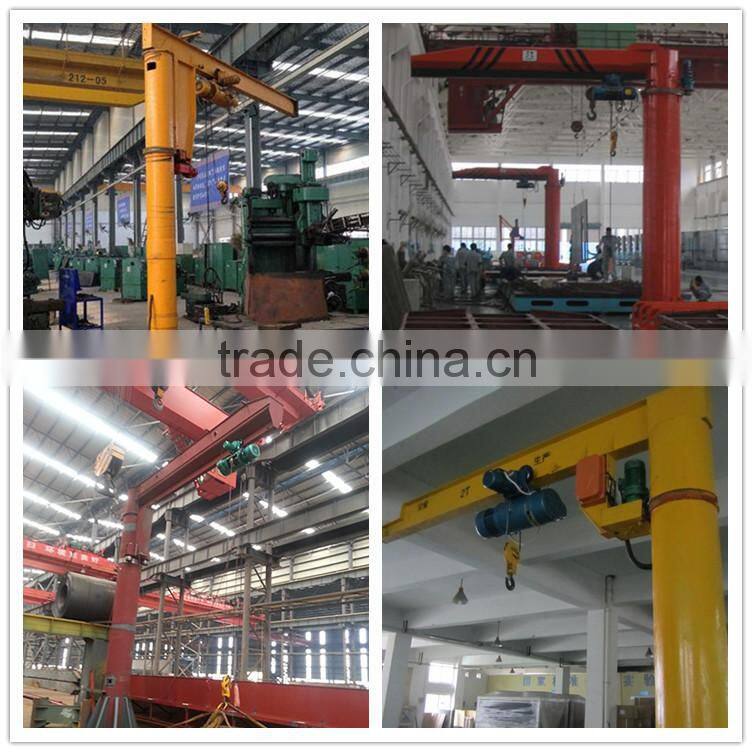

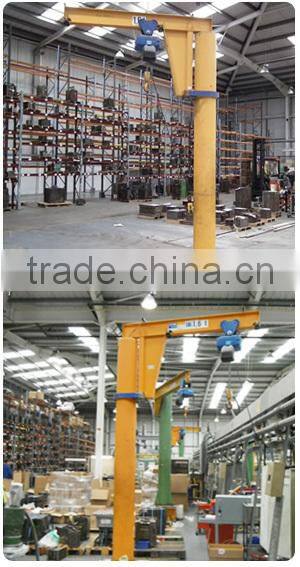

Product Showing

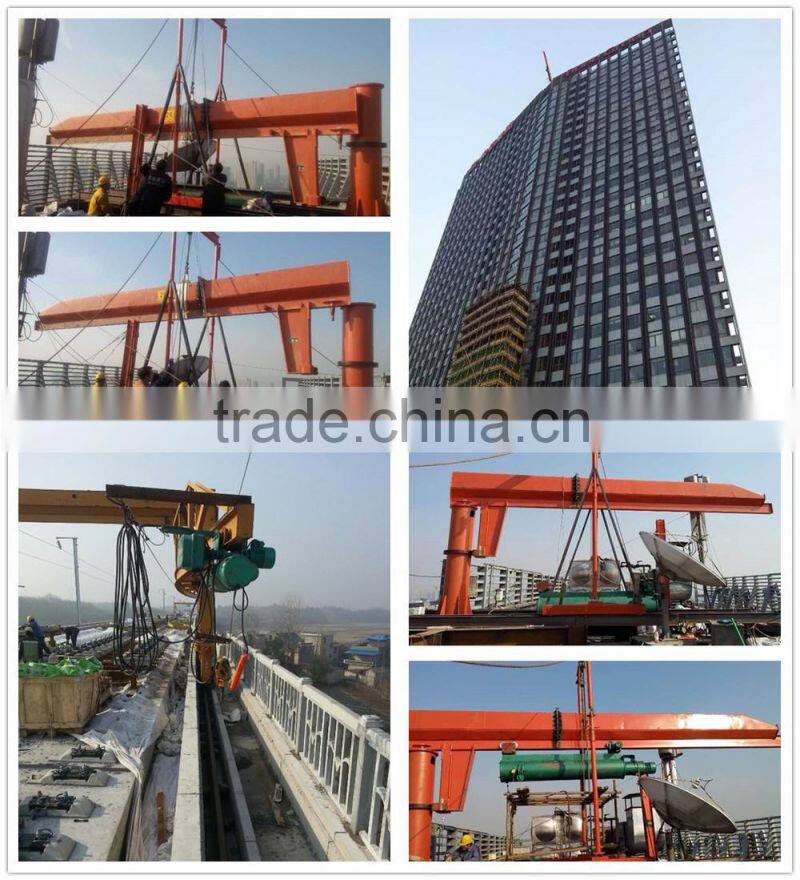

Jib Crane for Building Construction

Company View

Equipment Showing

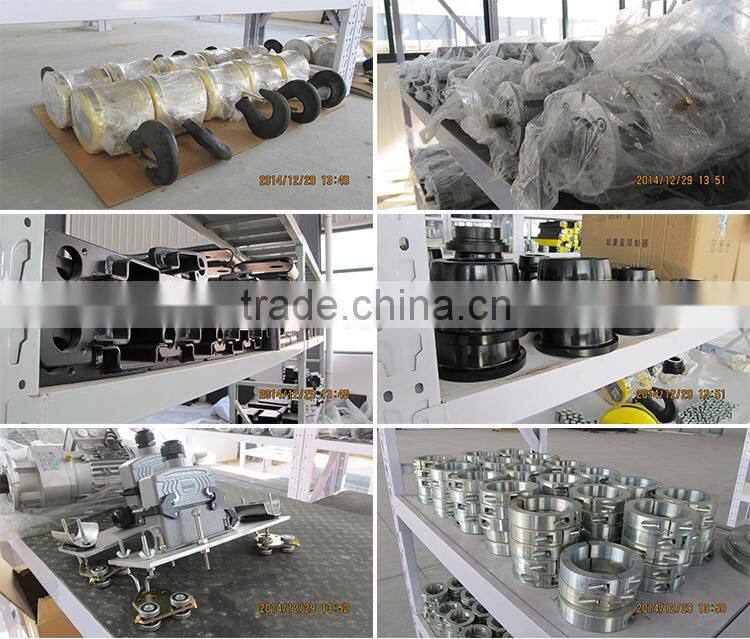

Spare parts Showing

Customer Visiting
