Pass ce New Style Electric Bike

Specifications

ELECTRIC BICYCLE (Model No.: LD-EB101)

Electric system

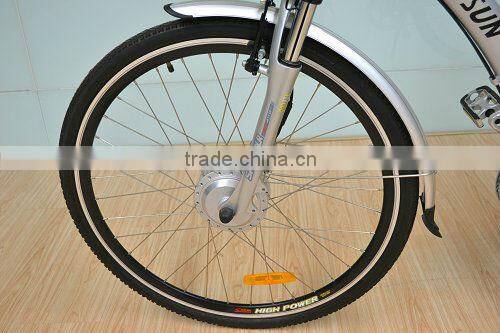

1. Motor: Motor front driving high speed brushless;

         Geared hub motor ;

         180W-250W for European;

         350W for USA&Canada

         200W for Australia&New Zealand;

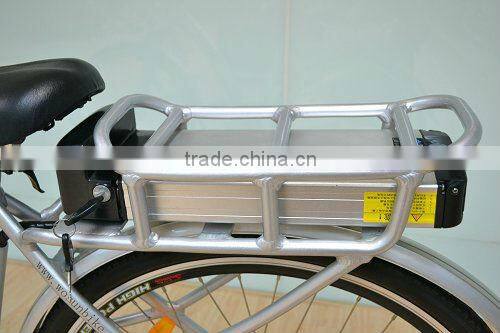

2. Battery: 36V/10Ah Li-ion battery

         24V/10Ah Li-ion battery optional

         All battery with electric protection circuit

3. PAS: Adjustable speed sensor PAS with displayer;

4. Controller: 36V intelligent brushless;

5. Charger: AC 100V-240V, 2 amps smart charger;

         Charging time: 4-6 hours;

6. Throttle: optional;

Performance

1. Max speed: 25km/h(EU), 32KM/H(USA&Canada)

2. Range: 50km with full electric (36V/10Ah battery);

         65km with PAS

3. Max loading: 100kgs

4. Net weight: 24khs including battery

5. Gross Weight: 27kgs including package;

6. Capacity: 86pcs/20ft, 180pcs/40HQ

Main components:

1. Frame: Al alloy

2. Tyres: 26" ×1.75KENDA brand;

3. Rim: Al alloy double wall and CNC side wall;

4. Front fork: Al alloy suspension;

5. Front brake: "V" brake (disk brake available)

6. Rear brake: "V" brake (disk brake available)

7. Speed gears: SHIMANO 7 speed gears

8. Derailleur: SHIMANO RD-TX51;

9. Handle Bar: ZOOM Al alloy;

10. Stem: ZOOM Al alloy;

11. Brake lever: Al alloy, cut-off when braking;

12. Chain: Rust resistant chain;

13. Chain wheel: steel 42T. Al alloy crank;

14. Mudguard: PP plastic;

15. Rear rack: Al alloy

16. Saddle: Soft comfortable;

17. Seat post: Al alloy suspension;

18. Pedal: Al alloy city style pedal with reflector;

19. Lighting: Front/rear LED light;

20. Optional parts: Tool kit, rack bage, helmet, lock, water bottle, mini pump, speed meter
