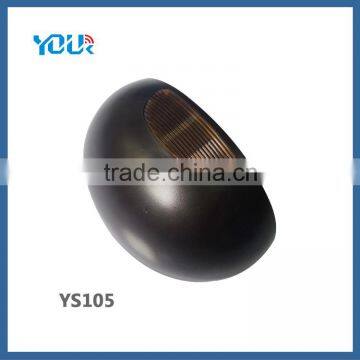

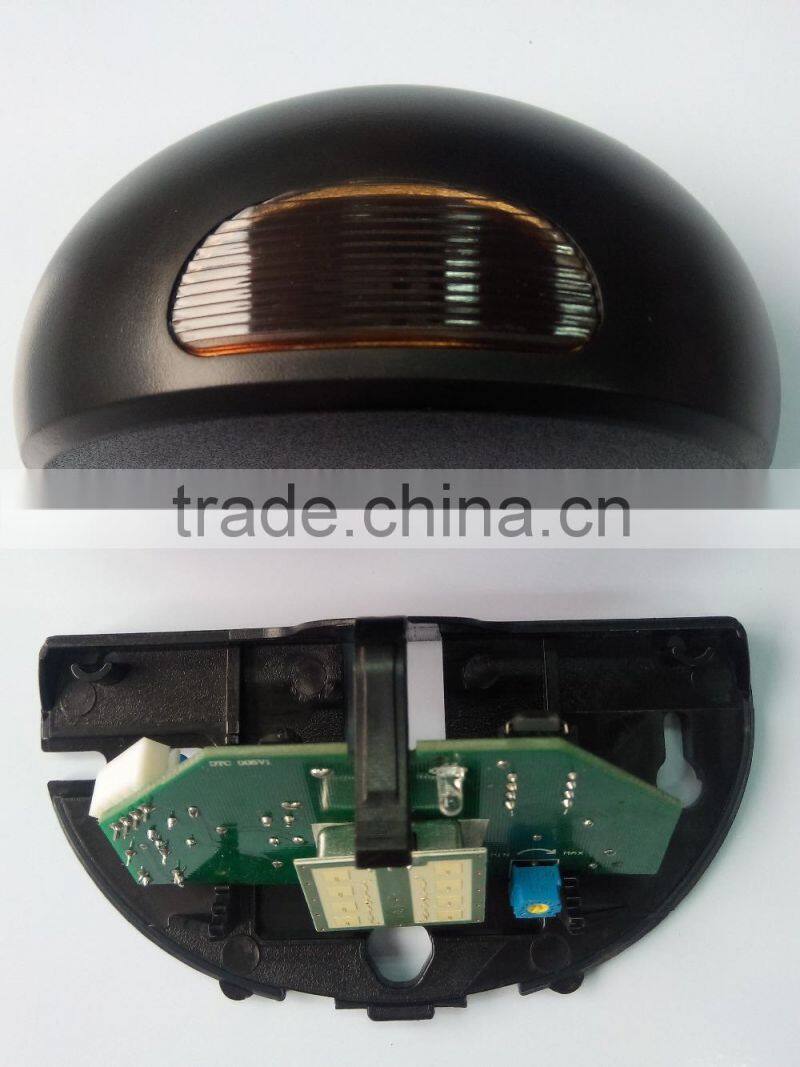

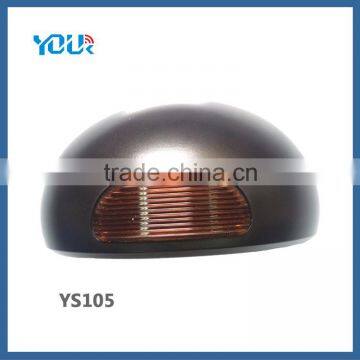

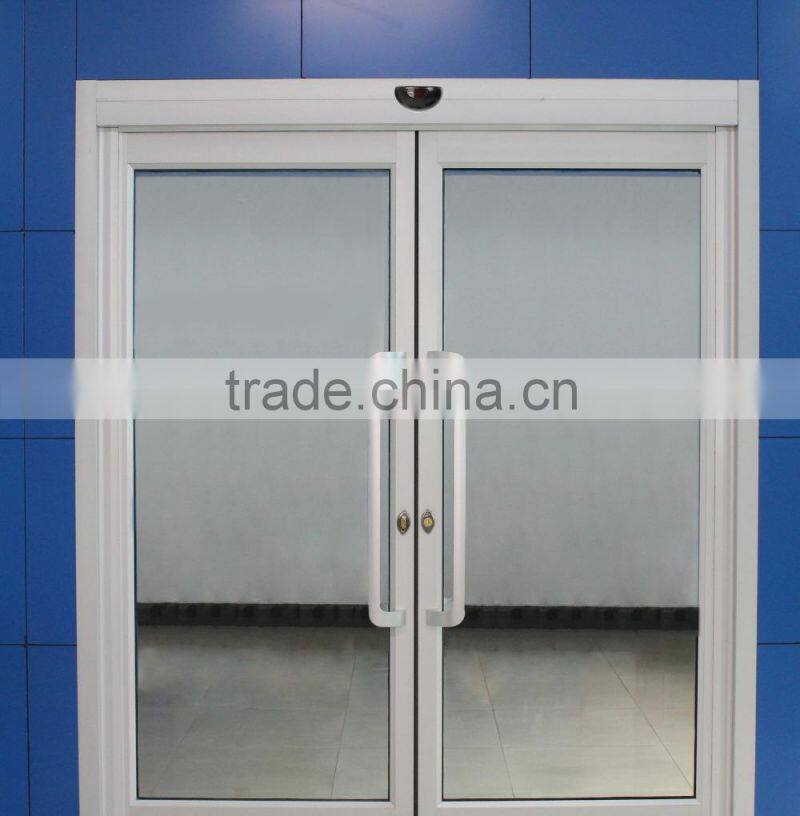

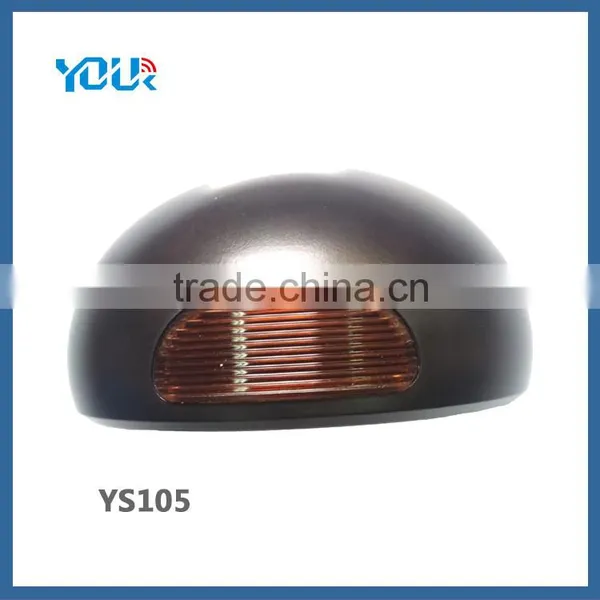

24 GHz Microwave Motion Sensor for Automatic Door Opening (YS105)

Name: 24 GHz Microwave Motion Sensor for Automatic Door Opening (YS105)
Brand: Yoursensor
SKU: 102152095
Availability: InStock

US$ 1 - 15 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Yoursensor

Model Number:

YS105

Ningbo Yoursensor Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Yoursensor

Model Number YS105

Usage Position Sensor

Theory Optical Sensor

Output Switching Transducer

1.Germany Innosent detecting chip, 24.125GHZ.

2.Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.

3.Safe, beautiful, economic, comfortable.

Specifications

24 GHz Microwave Motion Sensor for automatic door opening (YS105)
Approval	CE & ISO9001
Realization technology	Microwave and microprocessor
Power source voltage	12v-24v AC +/- 10%; 12v-30v DC
Launch frequency	24.125ghz
Launch power	<20 dBm EIRP
Launch frequency density	<5mW/cm ²
Output retention time	0.5 second
Assemble an altitude maximal	3m
Assemble a dip angle	15° ,30° ,45° , 60°
The maximum checks range (while assembling 2.2 meters of altitude)	4m(W) x2m(H)
Checking pattern	Move
The minimum checks speed	5cm/s (Along the longitudinal axis of air wire to tests)
Power source frequency	50-60 HZ
Power dissipation	<2W(VA)
The relay outputs (there be no initial electric potential)
Maximal contact voltage Maximal contact electric current The maximum change power	42V AC-60V DC 1A (Electric resistance) 30W(DC) / 60VA(AC)
Temperature range	-20°C to +55°C
Protection rate	IP 52
Outer covering material	ABS Plastic
Outer covering color	Black, Silver gray
Weight	100g
Conducting wire length	2.5m
External form dimension	1286660mm(DWH)
