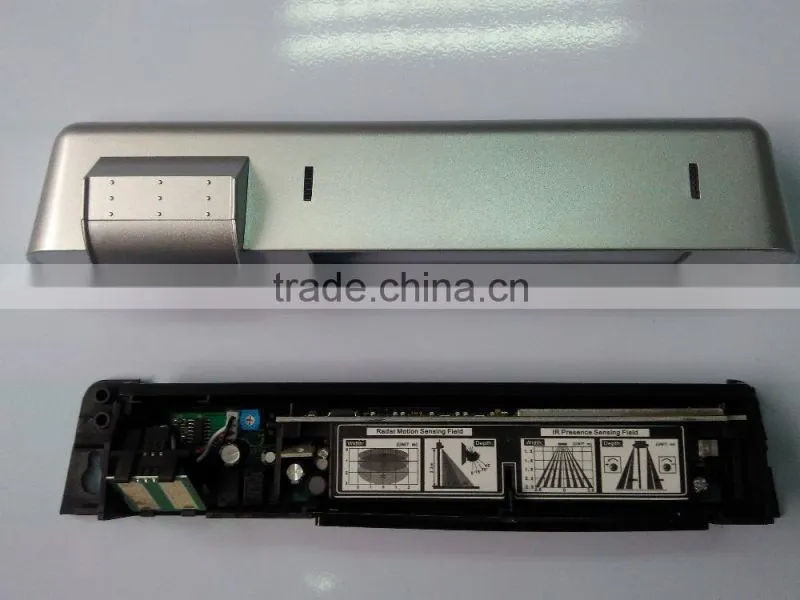

Infrared Motion Sensor for Automatic Door Opening (YS109)

Name: Infrared Motion Sensor for Automatic Door Opening (YS109)
Brand: Yoursensor
SKU: 102151813

US$ 30 - 60 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Yoursensor

Model Number:

YS109

Ningbo Yoursensor Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Yoursensor

Model Number YS109

Usage Position Sensor

Theory Optical Sensor

Output Other

1.Motion sensor is microwave type.

2.It's good for large place.

3.Presence sensor is infrared type.

4.It's good for installation.

5.Now the infrared part can be changed between NO & NC by wiring diagram.

6.Safe, beautiful, economic, comfortable.

Specifications

Infrared Motion Sensor for automatic door opening (YS109)
Approval	CE & ISO9001
Power supply	AC/DC 12-36V
IP	IP 54
Signal output	Relay, 1 pair contact point optional
Static current	65 mA
Working current	130 mA
Cover	ABS
Size	2605745mm(LWH)

Presence type:Infrared sensor
Type of ray	Reflect infrared
Ray source	Infrared 940 mm
Light beam	8 channel transmit, 8 channel receive
Self-learn time	10 s
Operating display	Standby: blue LED, Detecting: red LED
Temperature range	-40 ℃ to 60 ℃
Detection area	1600(W) X 800(D)mm
Hold-Up time	500 ms
Response time	≤100 ms
Optical surface	PMMA

Motion type:Microwave sensor
Technology	Microwave processor
Flight frequency	24.125 GHz
Launch power	< 20dBm EIRP
Launch frequency density	< 5mW/cm ²
Checking pattern	Move
Detection range	4m X 2m (W*D)
Output retention time	0.5 second
Temperature range	-20 ℃ to 55 ℃
