S-350-7.5 350W 7.5V DC Switching Power Supply

Wenzhou Junxiong Electrical Limited
S-350-7.5 350W 7.5V DC Switching Power Supply thumbnail-1
S-350-7.5 350W 7.5V DC Switching Power Supply photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JUNXELE
Model Number:
S-350-7.5 350W 7.5V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JUNXELE
Model Number S-350-7.5 350W 7.5V
Output Power Other, 15-500W
Output Type Single
Input Voltage Other, 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Output Voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Output Frequency 47-63HZ
Output Current 50A 40A 29A 25.8A 23.2A 14.6A 13A 7.3A

S-350-7.5 350W 7.5V  DC switching power supply



1. Low price and high reliable.



2. 105 `C output capacitor



3. AC input power suitable for the world



4. High efficiency and how operation temperature.



5. Soft-start current can reduce the AC input impact effecticly.



6. With short-circuit and overload protection.



7. Compact size, light weight.



8. 100% full-load buming test.



9. installed with EMI filter, minmum wave.





What is the story of JUNXELE ?





If Ask me, What is the Most Important switchgear in the World? Children will Tell You the Truth. in a Poor Village, Innocent Children no Education, no Happiness and no Hope. However, JUNXELE Brings new Power and Love There. After That,Sunshine Smile is Always around Children. They See Hope for Everything and Know How to Deliver Love with Lightness.







JUNXELE Brings Brightness, Warmness and Hope. Let me Know What is LOVE!!!







Product Description

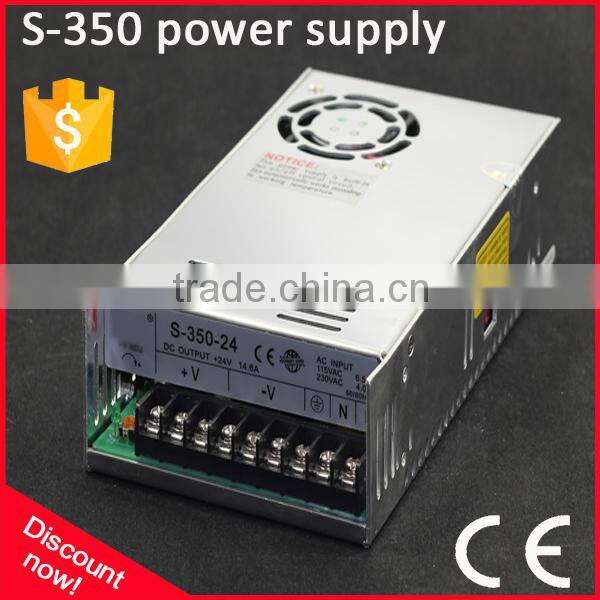

 S-350-7.5 350W 7.5V DC switching power supply

S-350-7.5 350W 7.5V DC switching power supply

Model SpecificationS-350-5VS-350-7.5VS-350-12VS-350-13.5VS-350-15VS-350-24VS-350-27VS-350-48V
DC Output Voltage5V7.5V12V13.5V15V24V27V48V
Iutput Voltage Error± 2%± 2%± 1%± 1%± 1%± 1%± 1%± 1%
Rated Output Current50A40A29A25.8A23.2A14.6A13A7.3A
Output Current Range0-50A0-40A0-29A0-25.8A0-23.2A0-14.6A0-13A0-7.3A
Tripple and Noise150mVp-p150mVp-p150mVp-p150mVp-p150mVp-p150mVp-p200mVp-p200mVp-p
Iniet Stability± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%
Tolerance Voltage± 1%± 1%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%± 0.5%
DC Output Power250W300W348W348.5W348W350.4W351W350.4W
Efficiency73%76%74%79%78%81%82%83%
Adjustable Range for DC Voltage4.5-5.6V6-9V10-13.2V12-15V13.5-18V20-26.4V26-32V40-56V
AC Input Voltage Range90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current6.5A/115V 4A/230V
AC Inrush CurrentCold-Start Current: 25A/115V, 50A/230V
Leakage Current<3.5mA/240VAC
Overload Protection105%~150% Type: Cut Output, Reset: Auto Recovery
Over Voltage Protection…………
High Temperature Protection…………
Temperature Coefficient± 0.03% /°C (0~50°C)
Start, Rise, Hold time200ms, 100ms, 20ms
Vibration10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand VoltageBetween Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation ResistanceInput and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity`-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity`20°C~+85°C, 10%~95%RH
Overall Dimension215*115*50 mm
Weight1.15 kgs
Safety StandardsMeet UL 1012 requirement (Not apply for the mark)
EMC StandardsMeet FCC Part 15J Conduction class B



 S-350-7.5 350W 7.5V DC switching power supplyS-350-7.5 350W 7.5V DC switching power supplyS-350-7.5 350W 7.5V DC switching power supplyS-350-7.5 350W 7.5V DC switching power supply



Packaging & Shipping





S-350-7.5 350W 7.5V DC switching power supplyShipping



1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Payment Terms
1. Payment: T/T, Western Union, B/L ; 30% deposits; 70% balance before delivery.
2.MOQ: 1pcs.



Our Services



1.We are Alibaba Assessed Gold Supplier.

2.We are a factory manufacturing circuit breaker,contactor,power supply, transformer,best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment.

4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price.

S-350-7.5 350W 7.5V DC switching power supply
