Help CenterS-15-24 15W 24V DC Switching Power Supply
Related Products
-
S-25-24 25W 24V DC Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece -
S-25-15 25W 15V DC Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
S-25-12 25W 12V DC Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
S-25-5 25W 5V DC Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
S-35-5 35W 5V DC Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece

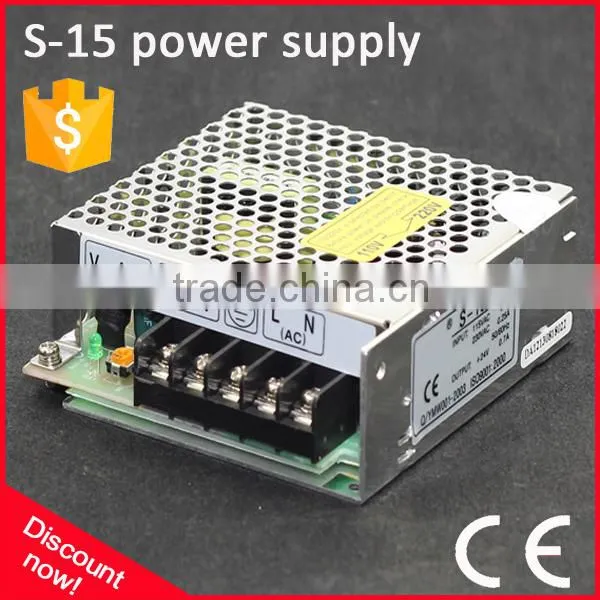

S-15-24 15W 24V DC switching power supply
1. Low price and high reliable.
2. 105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. Soft-start current can reduce the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8. 100% full-load buming test.
9. installed with EMI filter, minmum wave.
What is the story of JUNXELE ?
If Ask me, What is the Most Important switchgear in the World? Children will Tell You the Truth. in a Poor Village, Innocent Children no Education, no Happiness and no Hope. However, JUNXELE Brings new Power and Love There. After That,Sunshine Smile is Always around Children. They See Hope for Everything and Know How to Deliver Love with Lightness.
JUNXELE Brings Brightness, Warmness and Hope. Let me Know What is LOVE!!!
Model Specification |
S-15-5 |
S-15-12 |
S-15-24 |
DC Output Voltage |
5V |
12V |
24V |
Iutput Voltage Error |
± 2% |
± 1% |
± 1% |
Rated Output Current |
3A |
1.3A |
0.7A |
Output Current Range |
0-3A |
0-1.3A |
0-0.7A |
Tripple and Noise |
50mVp-p |
50mVp-p |
100mVp-p |
Iniet Stability |
± 0.5% |
± 0.5% |
± 0.5% |
Tolerance Voltage |
± 1% |
± 0.5% |
± 0.5% |
DC Output Power |
15W |
15.6W |
16.8W |
Efficiency |
65% |
68% |
72% |
Adjustable Range for DC Voltage |
`+10, -5% |
± 10% |
± 10% |
AC Input Voltage Range |
85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC |
||
Input Current |
0.7A/115V 0.3A/230V |
||
AC Inrush Current |
Cold-Start Current: 15A/115V, 30A/230V |
||
Leakage Current |
<0.75mA/240VAC |
||
Overload Protection |
105%~150% Type: Foldback Current Limiting, Reset: Auto Recovery |
||
Over Voltage Protection |
………… |
||
High Temperature Protection |
………… |
||
Temperature Coefficient |
± 0.03% /°C (0~50°C) |
||
Start, Rise, Hold time |
800ms, 50ms, 30ms,/ 115VAC, 300ms, 50ms, 80ms, /230VAC |
||
Vibration |
10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
||
Withstand Voltage |
Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
||
Isolation Resistance |
Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms |
||
Working Temperature and Humidity |
`-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH |
||
Storage Temperature and Humidity |
`20°C~+85°C, 10%~95%RH |
||
Overall Dimension |
99*97*35mm |
||
Weight |
0.3kgs |
||
Safety Standards |
Meet UL 1012 requirement (Not apply for the mark) |
||
EMC Standards |
Meet FCC Part 15J Conduction class B |
||
Shipping
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory manufacturing circuit breaker,contactor,power supply, transformer,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price.
