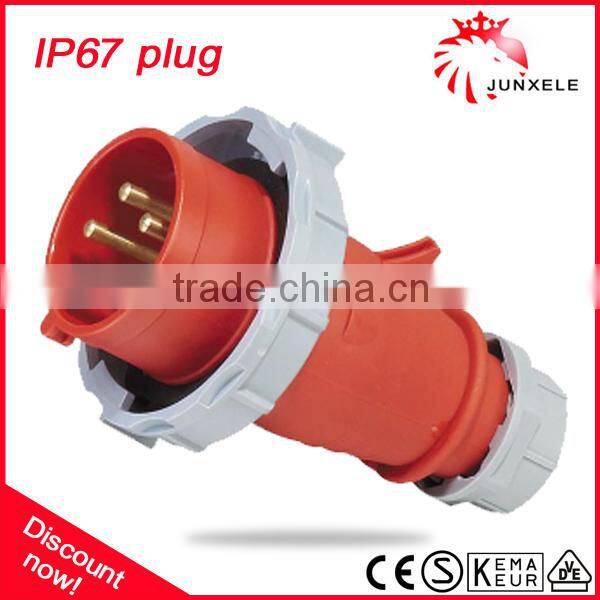

IP67 16A 400V 5P High End Type Industrial Plug

FOB Price

US$ 1 - 10 / Piece

100 Pieces(Min. Order)

Port NINGBO / SHANGHAI for IP67 16A 400V 5P high end type industrial plug
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	JUNXELE
Model Number	QX	Type	Plug with Socket
Grounding	Standard Grounding	Rated Voltage	110V 230V 400V
Rated Current	16A 32A 63A 125A	Application	Industrial

Product Description

IP67 16A 400V 5P high end type industrial plug

Product Description

Earth Contact Position		6h
Rated Current(A)		16
Poles		5

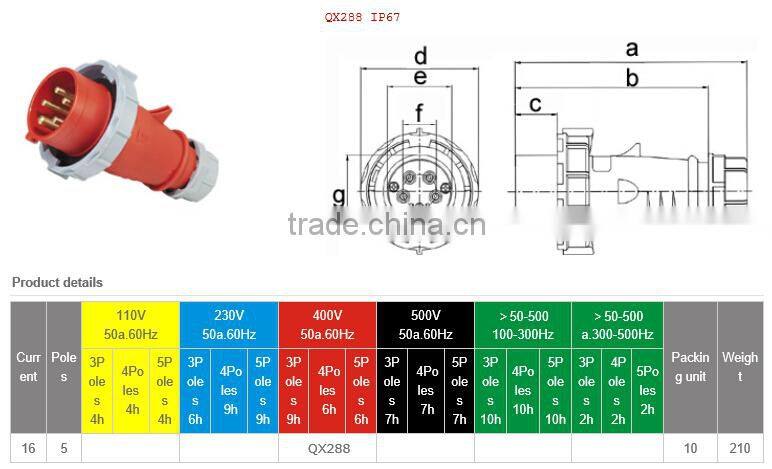

Dimension(mm)	a b c d e f g	144 121 27 87 50 26.5 60
Cable nominal cross-sectional area(mm²)		1.5-2.5

TESTING AND QUALITY CONTROL:

Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands’ product.

Temperature-Rist Test:

When we design the product, the first thing we need to do is make sure that our product can work in tated current for a long time. To keep the high quality, we use the experimental apparatus which can test the temperture-risk, product life, and mechanical property together for finsh the test more fast and widely.

CTI/PTI Test:

When we were designing the product, we not only need to considering the metal part, but also for the plasic part. CTI/PTI is a very improtant test for testing the plastic. We only chose the raw material which can pass the CTI/PTI test to keep our product have high insulativity and safety.

Sand Dust Test:

The operational environment is the first problem we considered when we design the product. We need to make sure that our product can be used over the world. So we need to evaluate the flexible condition of environment for store, deliver, and use in dry-sands or abound with lots of dusts.

The sand dust test adopted the manual simulation of sand & dust conditions. So we can ensure that whether they had long-term usage in al kinds of harsh natural environments

Rainfall Test:

As we know, whatever the product , product can inordinately influence with all kinds of liquids, whatever they in operative or storage. It has varying effects on their raw materials and features and even can damage the structures when they are permeated.

Rainfall test can exam the product outside case’s stabilities and reliabilities of against the liquid.

Insertion and Extraction Force Test:

We need to make sure the variable temperature at first when we design the product. Base on the variable temperature, we try to do the best feeling of inspection and extraction force.

The target of insection and extraction force test is translate the nastic feeling to the exactly data, base on the data, we can provide the information for design, improve, and inspect the product.

High And Low Temperature Test:

There are many type of nature environment and precipitating environment in the world, and hundreds of environment factor can effect the life of electrical equipment, especially for the temperature.

In the high temperature or low temperature condition, we can exam the product physical performance by the simulation. After the exam, we can judge the how is the performance of product by inspection. high end type industrial plug

Glow Wire Test:

Decrease the risk of risk fire disaster is necessary. The electrical equipment case more and more fire disaster in the modern life. The component of electrical equipment may be fire because overload or bad contact.

The glow wire test is use the simulation to know the risk of fire when the component is overload or glow in short time.

Packaging & Shipping

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door; relay

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. relay

high end type industrial plug

Payment Terms

1. Payment: T/T, Western Union, B/L ; 30% deposits; 70% balance before delivery.

2.MOQ: 1pcs.

Our Services

1.We are Alibaba Assessed Gold Supplier. high end type industrial plug

2.We are a factory manufacturing circuit breaker,contactor,transformer, plug and socket,best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment. high end type industrial plug

4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price.
