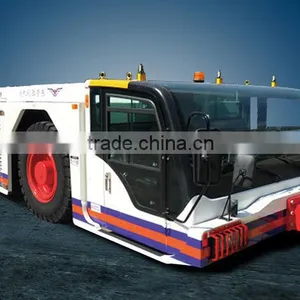

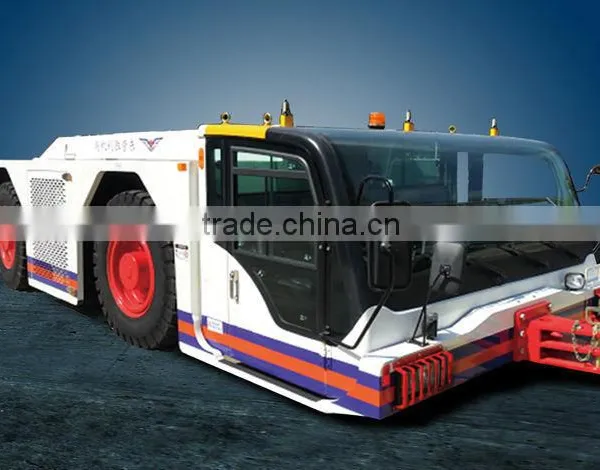

Help CenterCamel Aircraft Tow Tractor T270
Related Products
Specifications
Camel Aircraft Tow Tractor T270Gross Vehicle Weight:22t up to 27t
Overall:6470mm*2600mm*1650mm
Wheelbase:2.75m
Camel Aircraft Tow Tractor T270 Specification
Operating Performance
Drawbar Pull 200kN
Drive Speed 30km/hr
Turning Radius 8.2m, 2 wheels steering, outside
4.2m, 4 wheels steering, outside
Weight and Dimensions
Gross Vehicle Weight 22t up to 27t
Overall Dimension 6470mm(L)×2600mm(W)×1650mm(H)
Wheelbase 2.75m
Ground Clearance 200mm
Standard Equipment
Engine Deutz TCD2013/L06 181kw
Transmission Power shift with torque converter, 6 speed forward/3 speed reverse Axles 4-wheels drive, front axle leaf spring with shock absorber, rear axle rigid
mounted
Tires 12.00-24-PR24
Radial Steering Load sensing hydraulic power steering, all wheels steering Brakes Dual circuit hydraulic dry disc brake, all wheels Parking Brake Spring loaded with hydraulic release
Electrical 24Volt DC
Cab Elevating, air-conditioned, fully adjustable air suspension seat, adjustable
air vents, tinted windows opening side, intermittent two-speed windshield
wiper and washer.
Lights LED cab interior, front headlight, LED stop/tail lights, LED front and rear
turning signals, LED front fog light, front and rear working lights, flashing
beacon
Mirrors left and right main, right auxiliary, rear
coupler
Others Hydraulic jacking system Autolube system
Optional Equipment
Fleet manager
360°vision system
