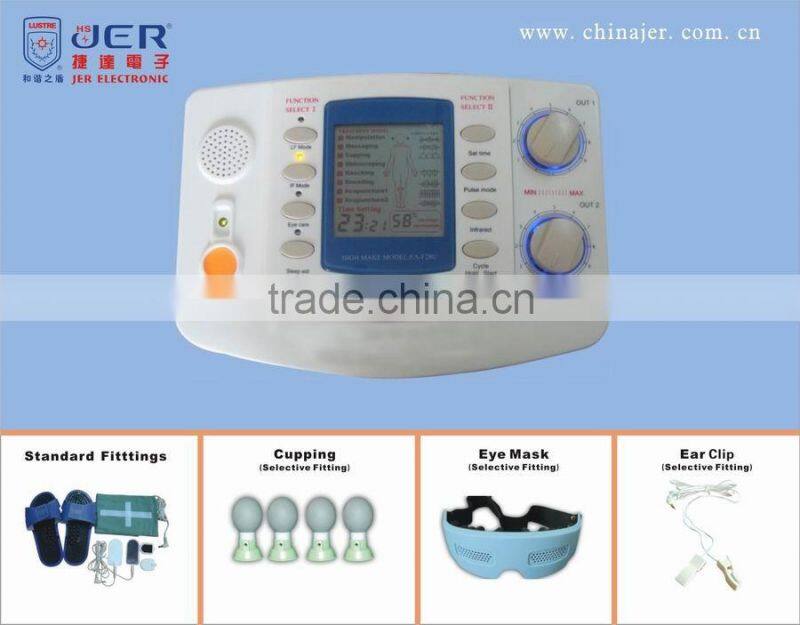

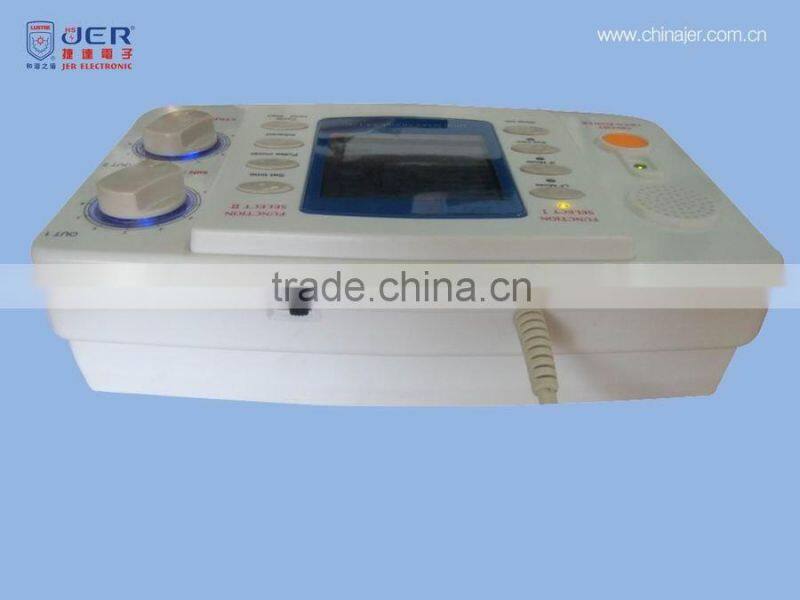

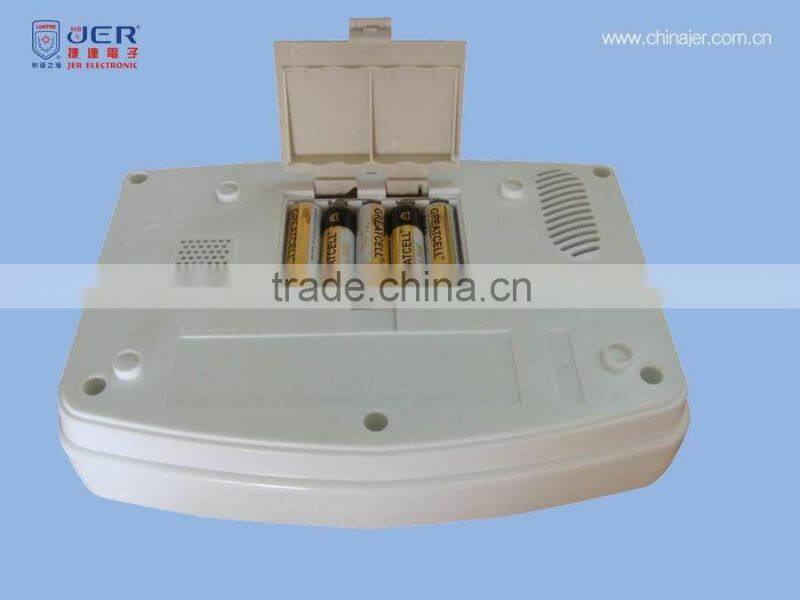

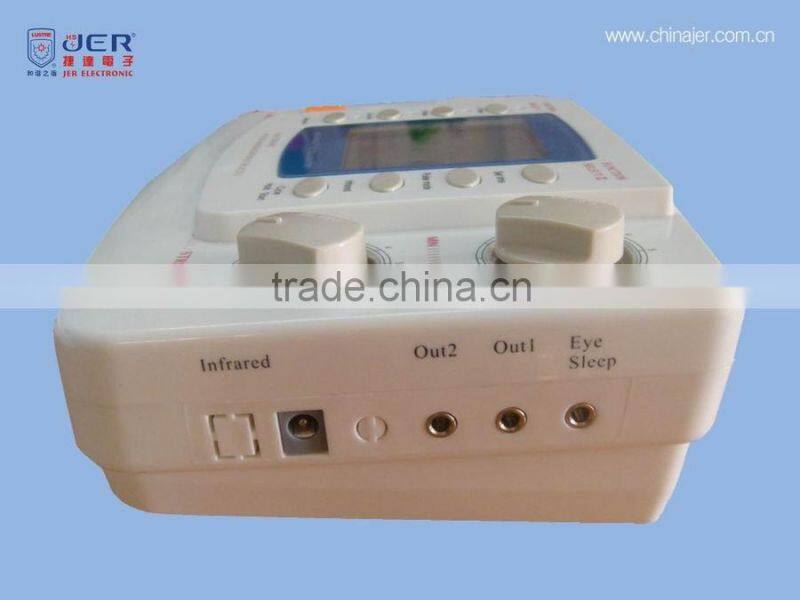

EA-F28U self-treatment digital infrared physiotherapy device with eye massager

Specifications

infrared physiotherapy EA-F28u
1,used with TENS
2,wide application for therapy
3,16 programmes,8 modes
4.4 channel,1 eye c

 EA-F28U self-treatment digital infrared physiotherapy device with eye massager Our Jer Brand gets most popularity in African and South-eastern Asia,esp in West and North African(Ivory coast,Ghana ,Nigeria,Egypt).





We have sole agent for this model EA-F28 U in many countries.



AC AND DC BOTH AVAILABLE



with ISO 13485,ISO 9001,CE certification



1. LCD, easy to operate, friendly, clear and distinct, with body acupuncture opoint display;
2. Power supply: A.C 220V±22V net power supply direct supply/ 5 NO.5 batteries;
3. Frequency range: low frequency (1Hz-1000Hz), middle frequency (1000Hz-3000Hz). Low frequency is used for Epidermis & shallow muscle; middle frequency can be to deep muscle & Skeletons.
4. 8 kinds of therapy & massager programs: acupuncture 1 & acupuncture 2; manipulation & massaging; skin scraping & cupping; knocking & kneading. All of the programs can be set automatic cycle or keeping one mode.
5. 4 channels, 3 for electronic pulse, 1 for far-infrared heating treatment. One of the channels is specialized for eye care (take the eye mask we special own) & sleep promotion (take the ear clip we special own).
6. Specially setting the programs for eye car & sleep promotion.

Efficacy Scope

1. Rheumatoid arthritis, periarteritis humeroscapularis, hyperosteogeny, lumbar

    muscle,strain vertebra cervical syndrome, head-ache, neuropathic, sastrosis,

    pericoronitis, cramp

2. Neutasthenic, insomnia, faint, headache, trigeminal nerve painful, hemiplegia,

    toothache, hucklebone neuralgia

3. High blood pressure, brain arteriosclerosis, apoplexy, menopause synthesize,

    galactophore flocculi hyperplasia

4. Rhinitis, stomach-ache, calculus, constipation;

5. Impotence, premature ejaculation, disorder of sexual function,emmeniopethy,

    dysmenorrhea,

6. Breast shaping and keep fit of shoulders, arms, back, waist, legmassage, belly,

thigh, and so on.





Main performance and technological index

NO.	Model Specification	Models EA-F28U
1	Power supply and voltage	a.c. 220V±22V,50Hz±1Hz net power supply direct supply
2	Power	less than 28VA
3	Frequency range	0.5Hz-1000Hz, 1000hz-5000hz
4	Pulse duration	0.07ms-1.2ms
5	Single electrode max output energy	less than 300mj
6	Single electrode output effective voltage	less than 25V
7	Fuse	φ5×20mm F1A250V  Notes: installed inside the apparatus, don't disassemble at will !
8	Output pulse feature curve	B mode linear continually adjustable V out min less than V out max ×2% (v)
9	Far-Infrared thermotherapeutic temperature	Within 35°C~58°C
10	Time setting	Six grades for 5,10,15,20,25,30min
11	Environmental requirement for apparatus application
	<1> operation	Environmental temperature range 5°C~40°C
		Relative temperature range less than 80%
		Atmospheric pressure range: 86Kpa~106KPa
	<2> transportation and storage	Environmental temperature range: -50°C~55°C
		Relative temperature range less than 93%
		Atmospheric pressure range: 50Kpa~106KPa
12	Dimensions(main unit)	195mm×155mm×75mm
13	Weight	1.5kg
14	Electrode pad size	82mmx43mm
