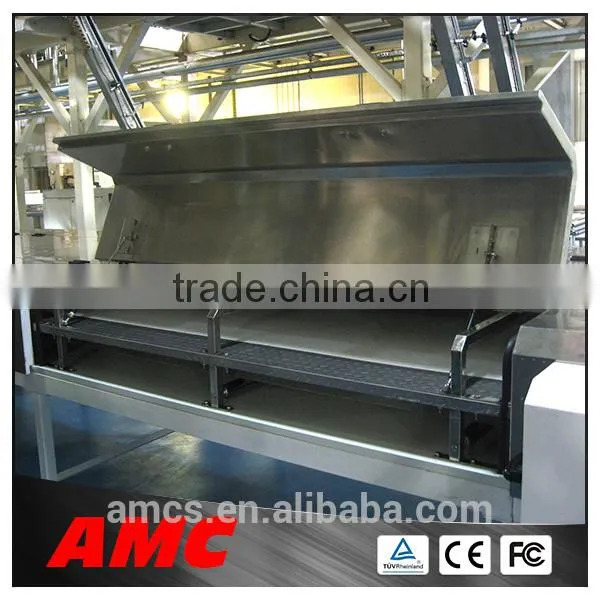

Help Center2014 New Design for Chocolate Enrobing Line
Related Products
-
2015 Newest Style Full Automatic Chocolate Enrobing Production LineUS$ 5,000 - 28,000MOQ: 1 Set -
Higher Capacity Automatic Stainless Steel Chocolate Coating MachineUS$ 5,000 - 28,000MOQ: 1 Set
-
Full Automatic Multifunctional Full Automatic Multifunctional Chocolate Enrobing Candy Bar Production Line Quality ChoiceUS$ 5,000 - 28,000MOQ: 1 Set
-
AMC Full Automatic Multifunctional Candy Bar & Chocolate Enrobing Production LineUS$ 5,000 - 28,000MOQ: 1 Set
-
Automatic Multifunctional Chocolate Tempering Machine for SellUS$ 5,000 - 28,000MOQ: 1 Set
Specifications
Chocolate Enrobing Line1 Material: Stainless Steel
2 PLC Controlling, PU Food Grade Belt
3 Good Quality, Easy Operation
Chocolate Coating Line Features
1Materials:
All parts contact with foods and the machine’s whole frame are made by stainless steel.
Material of conveyor belt: PU (food grade)
2 PLC Controlling
3 Features:
Withdrawable charging cylinder
Conveyor match with position correcting device
Match with cooling tunnel ( one set of 3HP and two sets of 5HP Refrigerating units).
Model Details:
Typ |
Belt width |
Belt speed |
Conveyor width |
Conveyor speed |
Tunnel work temperature(℃) |
Power (kw) |
Weight (kg) |
Dimension(m/min) |
|
TYJ1500 TYJ1200 |
1450 1150 |
0~7 0~7 |
1500 1200 |
0~~10 |
0-8 0~8 |
15 12.5 |
4800 4000 |
L*2100*1860 L*1850*1800 |
TYJ1000 |
950 |
0~7 |
1000 |
0~10 |
0~8 |
12 |
3600 |
L*1650*1800 |
TYJ800 |
750 |
0~7 |
800 |
0~10 |
0~8 |
9.17 |
2800 |
L*1400*1800 |
TYJ600 |
550 |
0~8 |
600 |
0~10 |
0~8 |
9.17 |
2300 |
|
1.packaging: inner wrap clear membrance ;outer with Wooden case
2.by sea or by express
vide you OEM /ODM service,and technology supporting service.
vide you all process quality control vedio &photos
3.speedily shippment once you place the order
1. Shipment arrange will offer by us logistics, can be so quick to arrange for you;
2. Production tracking day by day, we can offer photos from our product-lines, for your reference,only;
3. Complain from the customer, will handle by our sales directly and 48 hrs reply once the problems had.
