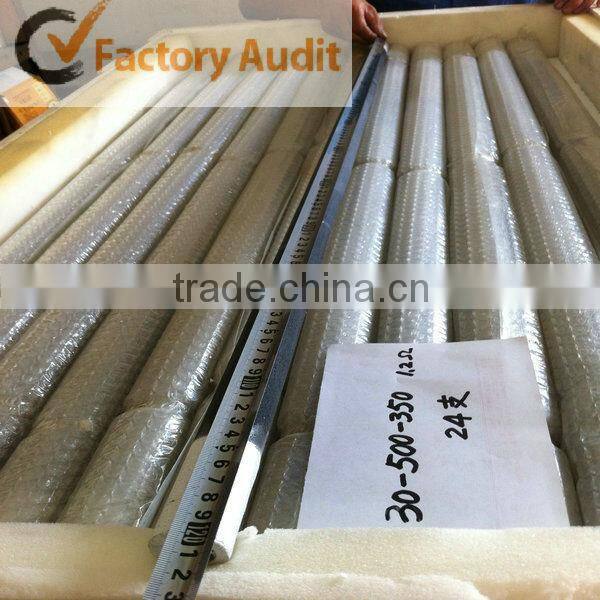

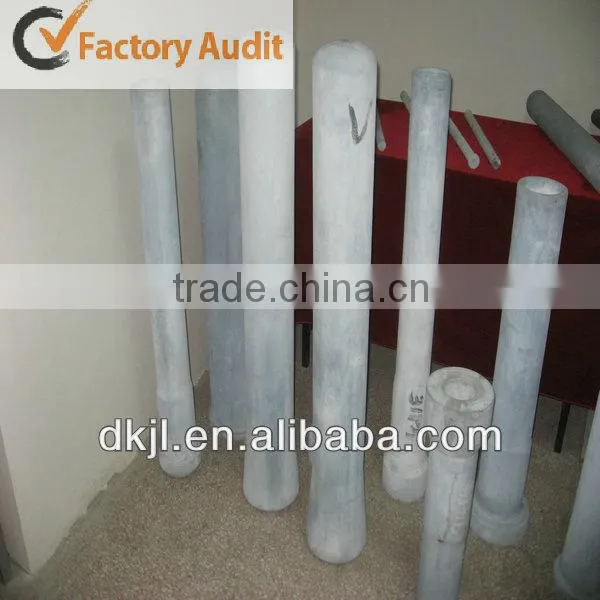

High temperature SiSiC thermocouple protection tubes/pipes
Application: RBSiC (SiSiC) Thermocouple Protect Tubes are used for top-end measurement-control in such as metallurgy, chemical and ceramics
Advantage: excellent properties of high strength, abrasive resistance and nonconductive, so the copolymer (Al2O3 and Cryolite). The copolymer likes protective film to protect the working lining and improve the service life of electrolytic bath. At the same time, the Si3N4 bonded SiC bricks have lower thermal conductivity than silicon bricks, so they can reduce the thickness of the side wall or input higher power to expanse the loading capacity of the electrolytic bath, and to increase the output. Because of the high resistivity of the material, it can reduce the power consumption of the side -wall about 15%, saving energy and protecting environment .
|
item |
unit |
index |
|
Sevice temperature |
°C |
1380 |
|
Bulk density |
g/cm3 |
>3.1 |
|
Porosity |
% |
<0.1 |
|
Rupture strenth |
MPa |
250(20°C) |
|
MPa |
280(1200°C) |
|
|
Elastic modulus |
GPa |
330(20°C) |
|
GPa |
300(1200°C) |
|
|
Thermal Conductivity |
W/m.k |
45(1200°C) |
|
Thermal expansion coefficient |
K-1×10-6 |
4.5 |
|
Hardness |
|
13M |
Packing: standard exported wooden case
Shipping: By vessel or plane from any Chinese port
Provide sample for test before order
Provide competitive price
Arrange prodcution on time
Control product quality and delivery time
Provide finished products and packing photos
Book the earliest and fast vessel
Provide original document and original certificate
After sale
DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
MOQ: 100pcs
Inquiry factors: Working temp, Size, Quantity
Contact person: Ms. Cindy Ji
Skype: cindy1980dkjl
...
