Help CenterXD935G 3.0 Ton 1.7 Cbm Earth Moving Machinery
Related Products
Specifications
XD935G earth moving machinery1..Engine:Chinese,Deutz or Cummins
2..Air conditioner,hydraulic pilot control
3.CE
XD935G 3.0 ton earth moving machinery
1.China famous brand YUCHAI YC6108 engine.
2.Hydraulic transmission and hydraulic steering.
3.Countershaft power-shift gearbox ,torque converter.
4.Air over hydraulic break system ,caliper break system.
5.Wheel reduction axle, automatic bucket flat.
6.Over load protection system
7.Optional engine: DEUTZ (WP6G125E23) CUMMINS(6BT5.9-C125)

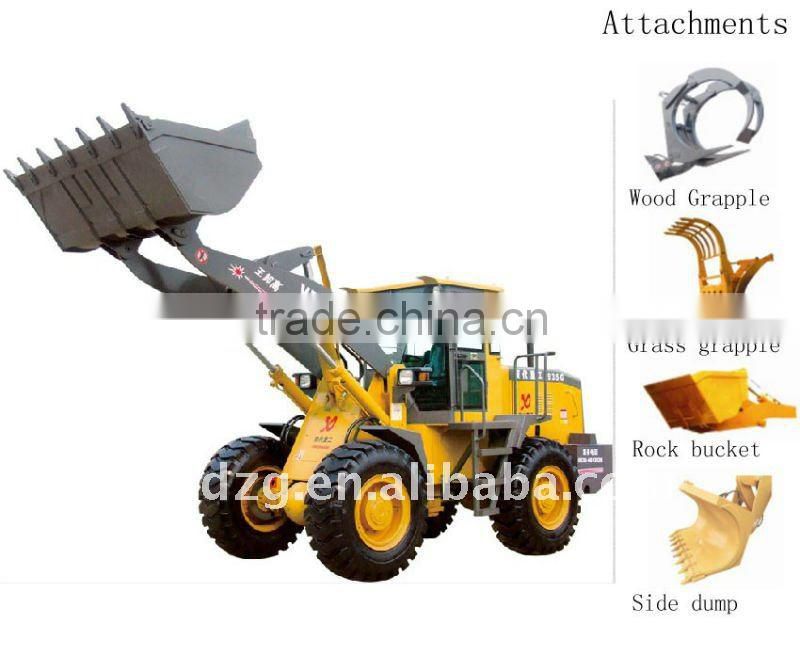

8.Optional attachments: wood grapple, grass grapple, fork, side dump bucket, 4 in 1 bucket etc.
Model |
XD935G |
Bucket capacity (m3 ) |
1.7/2.2 |
Weight (t) |
10 |
Rated load (t) |
3.0 |
Gear box |
4208 |
Lifting time of the arms (s) |
≤6 |
Hydraulic cycle time (s) |
≤11 |
Traveling speed (km/h) |
0-35 |
Forward gear I |
7-12.5 |
Forward gear II |
21-35 |
Reverse gear I |
0-14 |
Reverse gear II |
25 |
Max. climbing gradient |
30° |
Overall length (mm) |
7140 |
Overall width(mm) |
2400 |
Overall height(mm) |
3120 |
Wheel base (mm) |
2600 |
Wheel tread(mm) |
1800 |
Min. radius(mm) |
5100 |
Max. Breakout force(KN) |
96 |
Max. dumping height(mm) |
3260/3600 |
Dumping reach (mm) |
1180 |
Engine model |
YC6108G |
Rated speed (r/min) |
2200 |
Rated power(kw) |
92 |
Tires type |
17.5/25 |
