4.5m High Dump Wheel Loader for Sale XD935G Farm Machinery Express China Made

Name: 4.5m High Dump Wheel Loader for Sale XD935G Farm Machinery Express China Made
Brand: XIANDAI
SKU: 102084857

US$ 25,000 - 30,000 MOQ: 1 Unit

Key Specifications

Type:

cotton loader

Use:

farm machinery

Certification:

CE/ CE NOISE /ISO9001:2008

Taian Modern Heavy Industries Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other main ports as your demands

Delivery Detail:

Delivery time depends on order quantity.

Type cotton loader

Use farm machinery

Certification CE/ CE NOISE /ISO9001:2008

Place of Origin Shandong, China

Brand Name XIANDAI

Model Number XD935G 4500mm high dump

Condition New

After-sales Service Provided Overseas third-party support available

Specifications

1.1.6 ton loader for cotton or corn
2. 4.5m high dump with Engine:YUCHAI
3.A/C,Joystick,Rops&Fops
4.CE certificate

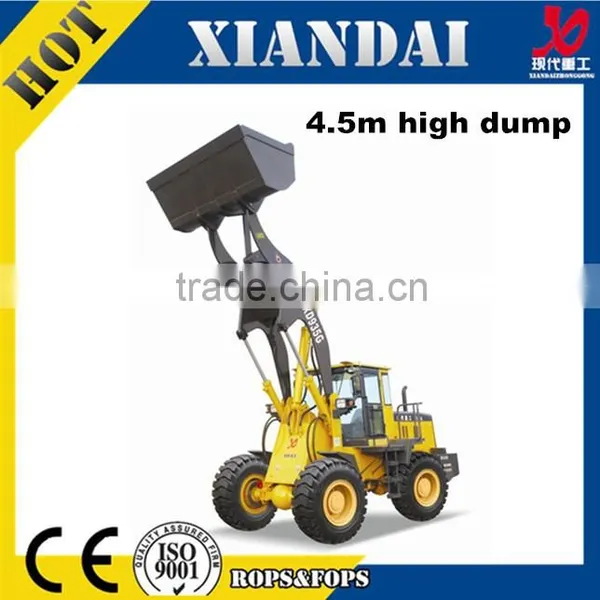

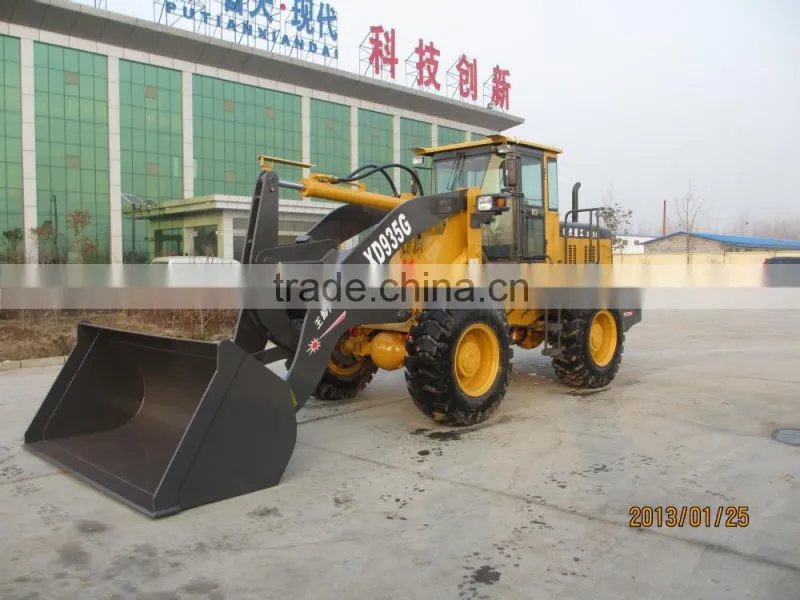

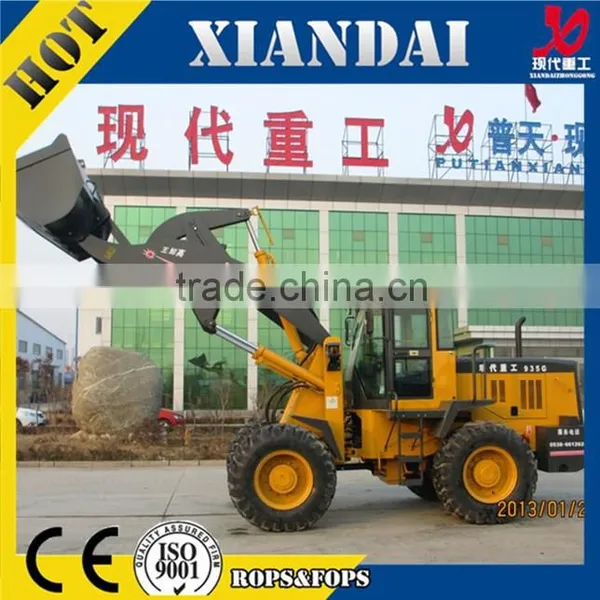

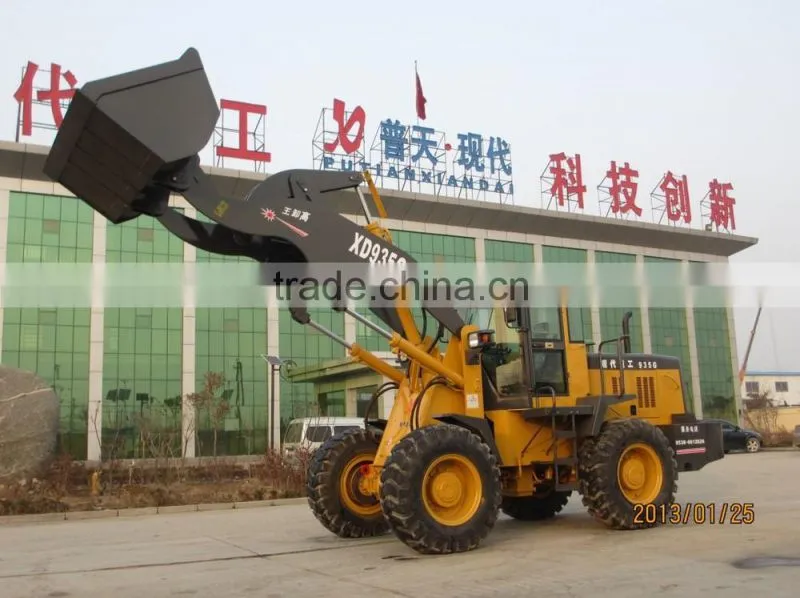

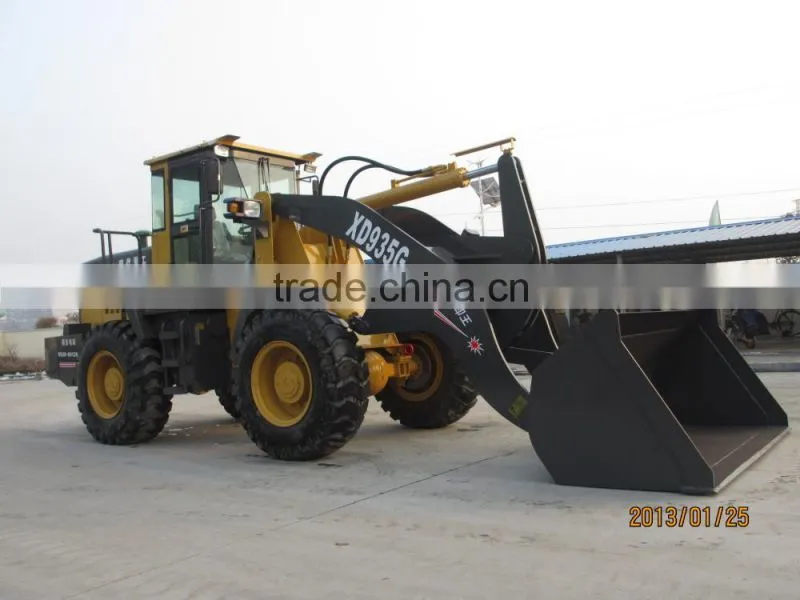

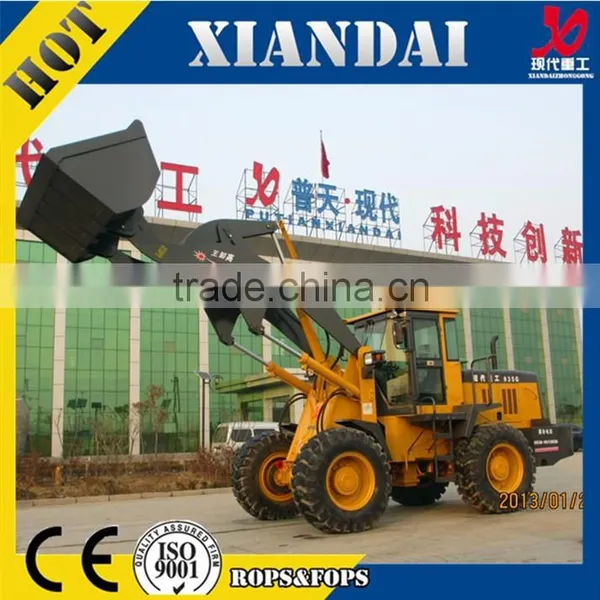

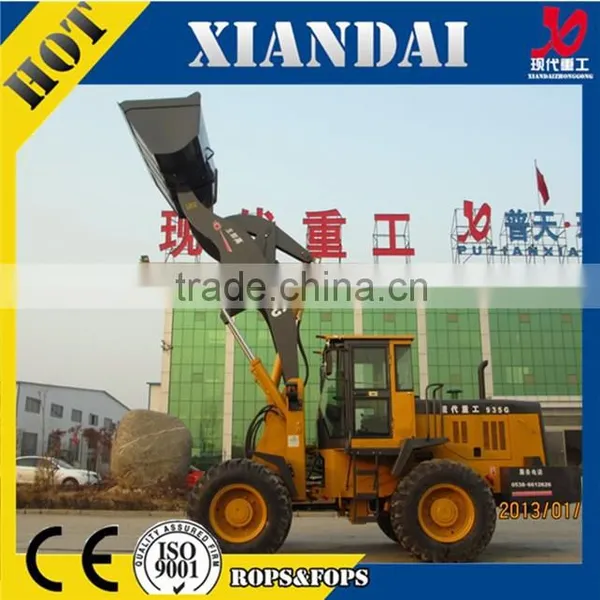

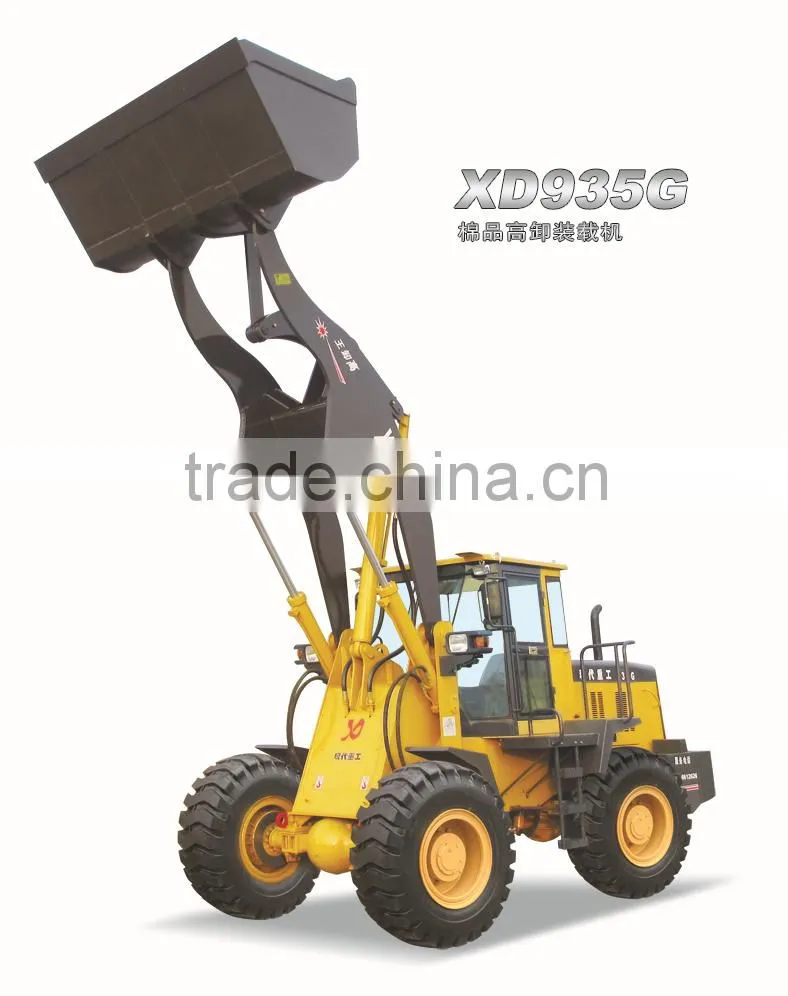

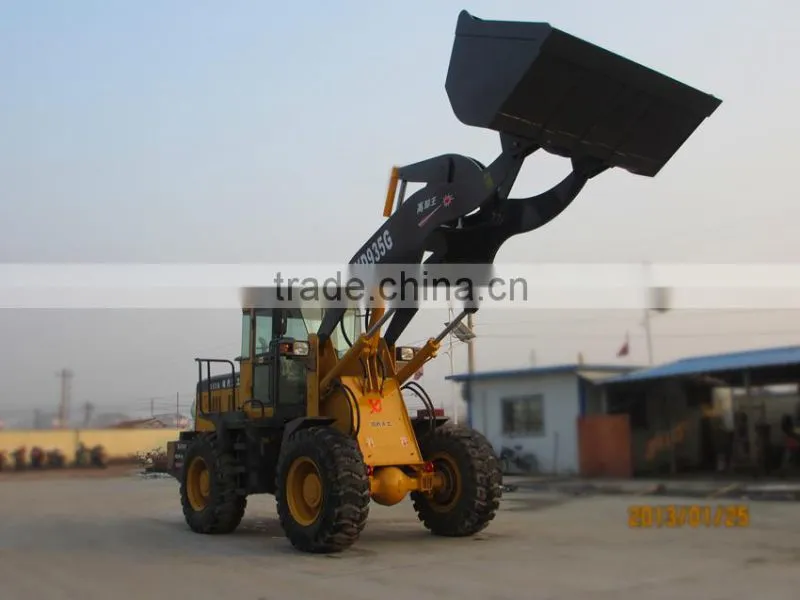

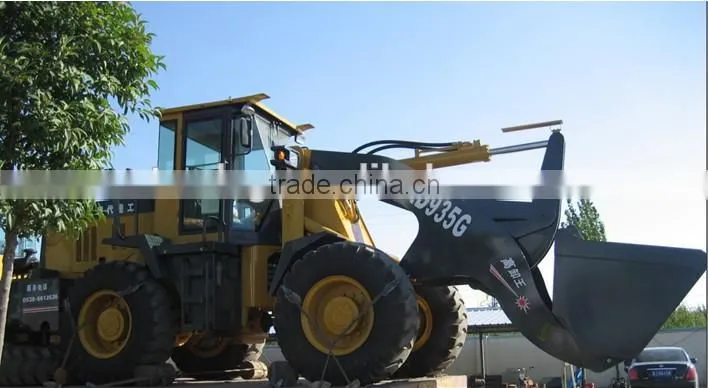

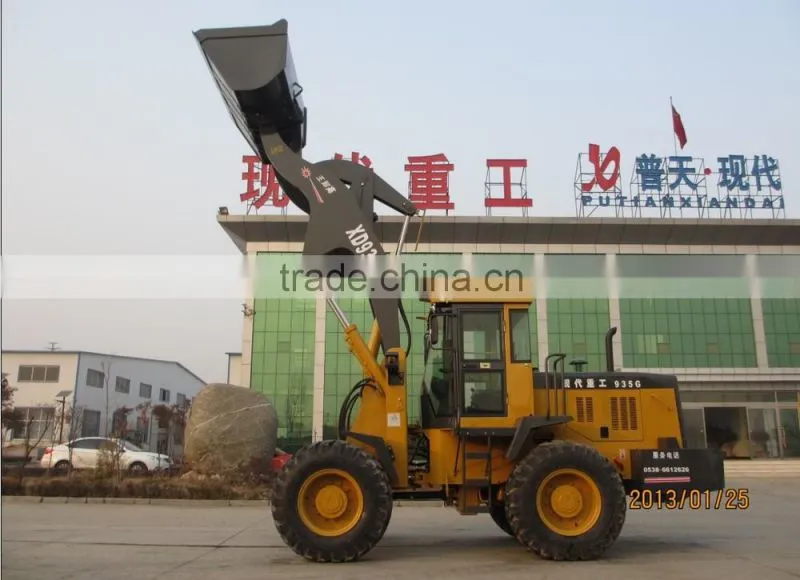

XD935G 1.6 ton 4.5m high dump wheel loader

Product Description

I.Basic Equipment

1.China top brand YUCHAI engine

2. Hydraulic transmission and hydraulic steering

3. China top brand SHANTUI Countershaft power-shift gearbox ,torque converter

4.Air over hydraulic break system ,caliper break system

5.Wheel reduction axle, automatic bucket flat

6.Over load protection system

7.Fan, Luxury Bumping bag spring seat, 17.5-25 low-pressure, wide-base tires

8.CE certification

9.Optional: LOVOL PERKINS engine(Europe IIIA&EPA Tire III)

II.Specifications

Description	Specification	Unit
Bucket capacity	1.7/2.2	m3
Rated load	1.6	t
Weight	10	t
Overall dimension(LWH)	714024203120	mm
Wheel base	2600	mm
Wheel tread	1800	mm
Min ground clearance	400	mm
Main Performance Specification
Dumping height	3260	mm
Dumping reach	1180	mm
Digging depth	218	mm
Dumping angel at any position	450
Max break out force	120	KN
Max draw force	75	KN
Lifting time of arms	≤6	s
Lowering time of arms	≤3.5	s
Dumping time of bucket	≤1.5	s
Min turning radius (outside of rear wheel)	5100	mm
Traveling speed	0-35	Km/h
Pivot angle frame	450±10
Oscillating angle of rear axle	±120
Diesel engine
Model	YUCHAI
Type	Four stroke, watering Cooling, turbo-charge engine
Rated power	92	kw
Rated speed	2200	r/min
Rated consumption	≤280	g/kwh
Engine oil consumption	≤270	g/kwh
Max torque	460/1500-1700 N·m/(r/min)
Fuel oil tank	160	L
Engine lubricating oil	17	L
Starting type	Electric start
Net weight	520	kg
Transmission System
Torque converter	China top brand SHANTUI 3 elements, single stage
Torque ratio	3.82
Cooling type	Pressure oil circulating
Gear box	China top brand SHANTUI Countershaft power-shift
Gear shift position	Forward 4, Reverse 2
Displacement of gear shift pump	32	ml/r
Oil for converter and gear box	35	L
Axle	China top brand YUNYU Hub reduction axle
Oil for driving axle	34	L
Brake system
Type	Air over hydraulic brake system, caliper disc brakes
Brake pressure	784-833	Kpa
