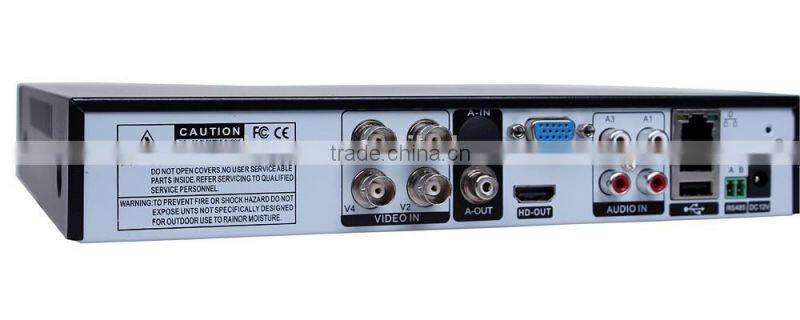

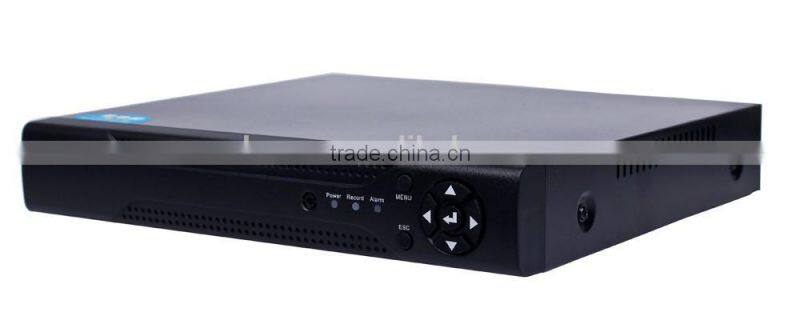

Mini 4CH H.264 CCTV DVR NVR Recorder P2P ICloud 4ch Full D1 Up to HD 1920*1080 CCTV DVR 1080P ONVIF NVR Recorder
US$ 10 - 30
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Heron
Model Number:
HE-AHD104B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini 4CH H.264 CCTV DVR NVR Recorder P2P ICloud 4ch Full D1 Up to HD 1920*10US$ 10 - 30MOQ: 1 Set -
CCTV DVR Mini 4CH H.264 NVR Rcorder P2P ICloud 4ch Full D1 Up to HD 1920*1080US$ 10 - 30MOQ: 1 Set
-
Mini 4ch CCTV DVR Security System hd H.264 Full d1 Hdmi Ptz Network Home Surveillance Video Recorder Dvr BlackUS$ 10 - 30MOQ: 1 Set
-
New Mini 4CH Full D1 DVR Real Time Recording 4 Channel Standalone CCTV DVR HDMI Output P2P Cloud Mobile Phone ViewingUS$ 10 - 30MOQ: 1 Set
-
CCTV HDCVI Camera HDMI CVR DVR Real-time Playback Preview 4 Channel CCTV Camera Kit CCTV System 4Ch DVR Video RecorderUS$ 10 - 30MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Heron
Model Number
HE-AHD104B
Mini 4CH H.264 CCTV DVR NVR Recorder P2P iCloud 4ch Full D1 Up to HD 1920*1080 CCTV DVR 1080P ONVIF NVR Recorder
Features :
Product Description
Specification :
| System | main processor | Hi3520A | Hi3521 |
| operating system | embedded linux | ||
| system resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||
| Interface | user interface | support 16-bit true color graphical menu interface and mouse operation | |
| preview screen | 1/4(take analog as an example) | 1/4/8/9(take analog as an example) | |
| video | vdieo standards | PAL(625line,50f/s);NTSC(525line,60f/s) | |
| vdieo compression | H.264(High Profile) | ||
| display quality | monitor:D1;VGA,HDMI:HD(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600) | ||
| play quality | 1080P/720P/D1/HD1/CIF | ||
| encode capacity | 4ch D1/960H real-time | 8ch D1/960H real-time | |
| decode capacity | 4ch D1/960H real-time | 8ch D1/4ch 960H real-time | |
| hybrid mode | Only analog(DVR): | Only analog(DVR): | |
| 4*D1 | 8*D1 | ||
| /4 *960H | /8*960H | ||
| analog+IP(HVR): | analog+IP(HVR): | ||
| 2*D1+(1*1080P+1*720P) | 4*D1+(1*1080P+3*720P) | ||
| Only IP(NVR): | Only IP(NVR): | ||
| 9*D1/8*960H /4*720P/2*1080P/1*720P+7*D1 | 16*D1 | ||
| /1*1080P+1*720P+2*D1 | /2*1080P +2*720P | ||
| /1*1080P+1*720P | |||
| +6*960H | |||
| /8*720P | |||
| motion detect | Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels) | ||
| audio | audio compression | G711A | |
| bidrectional talk | supported | ||
| Record&playback | record mode | manual>alarm>motion detection>timing | |
| local playback | 1~9ch playback,under analog mode 4*960H, | 1~16 ch playback,under analog mode 8*960h,Up to 4ch playback(4*960H@25fps) | |
| Up to 4ch playback(4*960H@25fps) | |||
| search mode | Time/calendar/event/channel search | ||
| Storage&backup | space occupation | video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;960H 12G~20G/ day*channel audio:691.2M/ day*channel | |
| record storage | HDD,network | ||
| backup mode | Network backup,USB,USB Burn,SATA | ||
| interface | video input | 4ch BNC | 8ch BNC |
| (1.0Vp-p,75Ω) | (1.0Vp-p,75Ω) | ||
| video output | 1ch CVBS/BNC(1.0Vp-p,75Ω),1ch VGA,1ch HDMI | ||
| Loop-through output | Not supported | ||
| audio input | 4ch RCA | 2ch RCA | |
| (200-2800mV,30KΩ) | (200-2800mV,30KΩ,able to expanded to 6ch) | ||
| audio output | 1ch RCA(200-3000mV,5KΩ) | ||
| alarm input | no(support 4ch expasion) | ||
| alarm output | no(support 1ch expasion) | ||
| net interface | RJ45 10M/100M | ||
| PTZ control | One RS485,one RS232;support multiple PTZ protocols | ||
| USB | 2 USB ports | ||
| hard disk | 2 SATA port(4T at most per one) | ||
| 3G,WIFI | supported | ||
| others | Power supply | 12V/4A | |
| Power consumption | <15W(hard disk without) | ||
| WorkingTemperature | 0℃-+55℃ | ||
| Working Humidity | 10%-90% | ||
| Atmospheric pressure | 86kpa-106kpa | ||
About Heron:
- Heron: Professional manufacturer in the security and CCTV surveillance field.
- We had been in business of chipset supplying for over 5 years.
- Warranty: 2 year for long term cooperation
- With long term OEM service for customer mainly from EU, USA, South America and Africa,
- we will be your ideal choice for OEM Home / Office security.
Certificates:
Packaging & Shipping
Package:
1* DVR
1*Power Supply ( US/EU/UK/AU Optional,12V2A support Max 1*3TB HDD)
1*Mouse
1* CD With Software
1*User Manual
