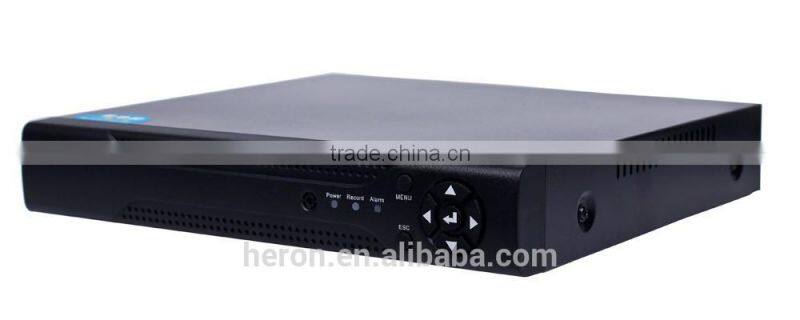

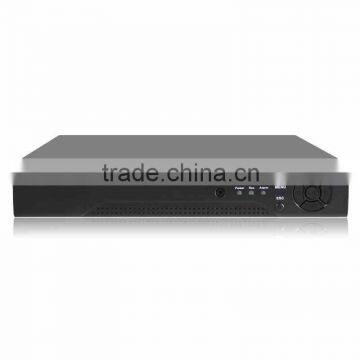

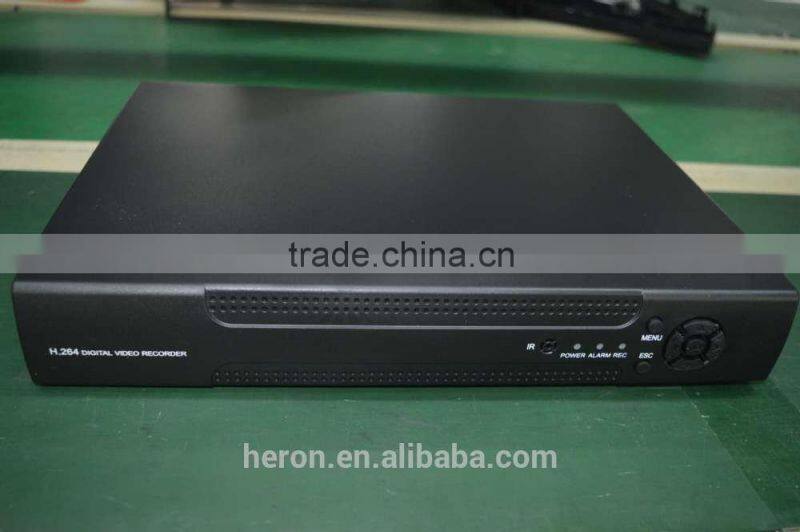

Car Mini Dvr Camera 4/ 8/ 16CH D1/ 960H AHD DVR/ Digital Video Recorder/ H 264 NVR/ P2P/ Cloud/ 1HDD/ CCTV DVR/ Security
US$ 10 - 30
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Heron
Model Number:
HE-108B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H 264 16 Channel Standalone Dvr Kit Ahd Dvr 4ch 8ch 16ch 720p 1080p Free Client Software H.264 Ahd Dvr NVR Quality ChoiceUS$ 10 - 30MOQ: 1 Set -
960H Hotsell HD H 264 DVR 8 Channel CCTV DVR China Manufacturer ,Real Time NetworkedUS$ 1 - 50MOQ: 1 Piece
-
Hot Sale 8CH P2P HDMI Output 960H CCTV DVR Quality ChoiceUS$ 1 - 50MOQ: 1 Piece
-
Hottest XM Software 4CH 960H CCTV DVRUS$ 1 - 50MOQ: 1 Piece
-
Heron 4ch h 264 Dvr 4ch Full 960h Dvr 4 Channels Standalone DvrUS$ 1 - 50MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Heron
Model Number
HE-108B

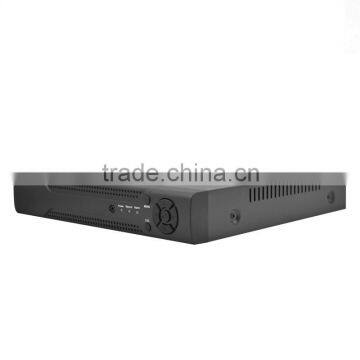

Car mini dvr camera 4/ 8/ 16CH D1/ 960H AHD DVR/ Digital Video Recorder/ H 264 NVR/ P2P/ Cloud/ 1HDD/ CCTV DVR/ security
Features :
Product Description
Specification :

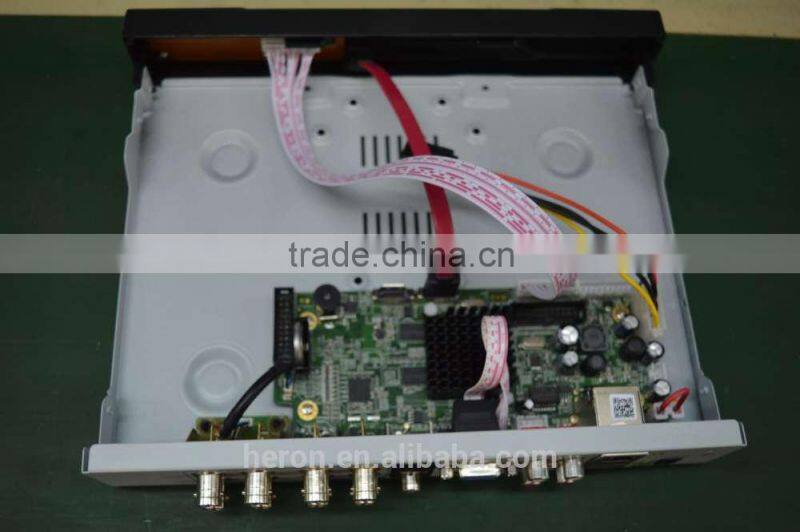

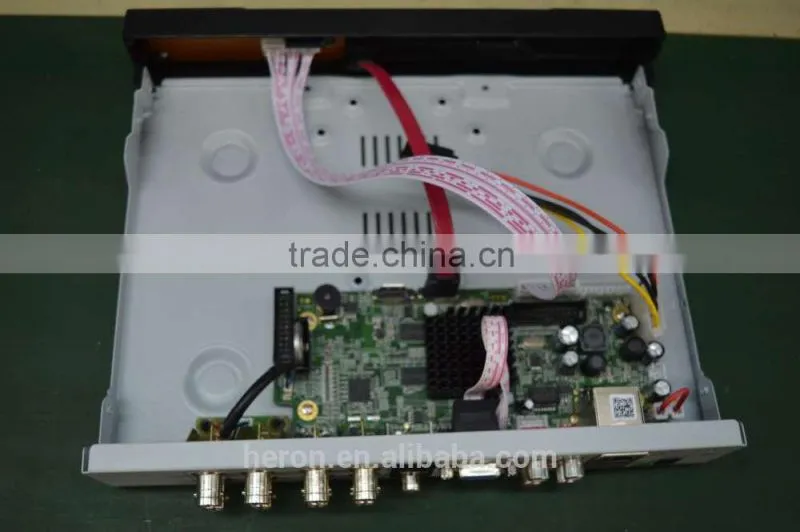

| System | main processor | Hi3520A | Hi3521 |
| operating system | embedded linux | ||
| system resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | ||

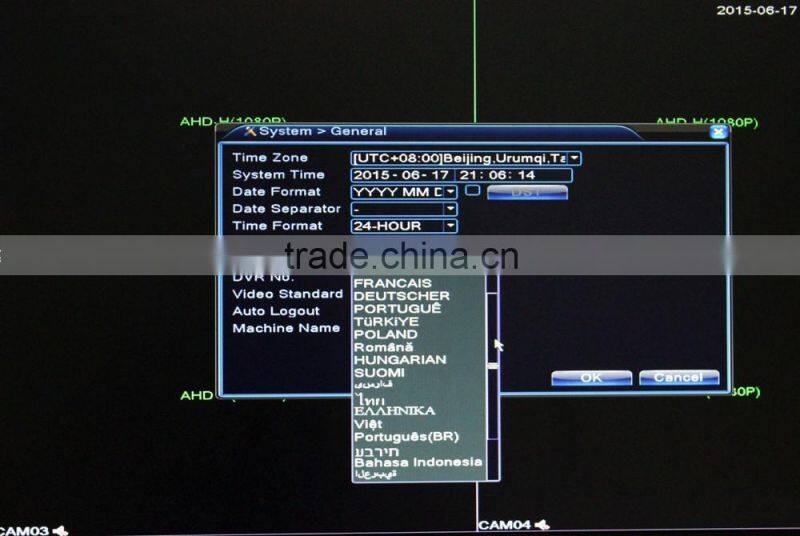

| Interface | user interface | support 16-bit true color graphical menu interface and mouse operation | |
| preview screen | 1/4(take analog as an example) | 1/4/8/9(take analog as an example) | |
| video | vdieo standards | PAL(625line,50f/s);NTSC(525line,60f/s) | |

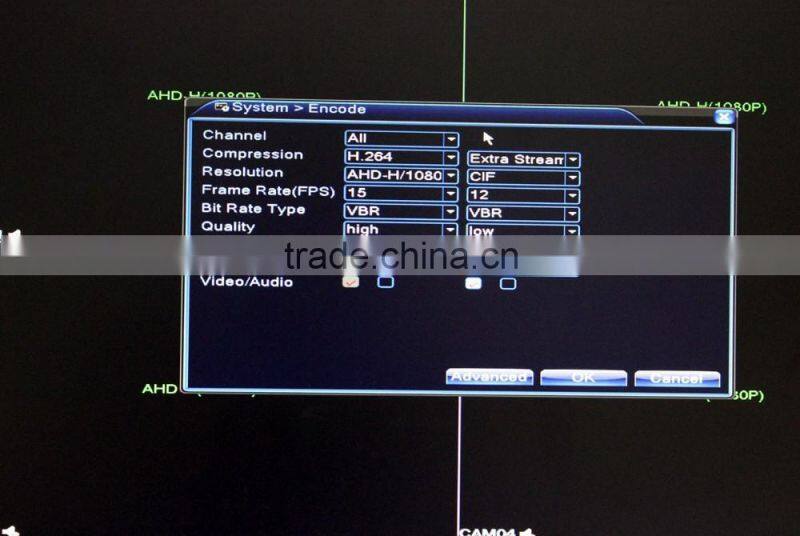

| vdieo compression | H.264(High Profile) | ||
| display quality | monitor:D1;VGA,HDMI:HD(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600) | ||
| play quality | 1080P/720P/D1/HD1/CIF | ||
| encode capacity | 4ch D1/960H real-time | 8ch D1/960H real-time | |
| decode capacity | 4ch D1/960H real-time | 8ch D1/4ch 960H real-time | |
| hybrid mode | Only analog(DVR): | Only analog(DVR): | |
| 4*D1 | 8*D1 | ||
| /4 *960H | /8*960H | ||
| analog+IP(HVR): | analog+IP(HVR): | ||
| 2*D1+(1*1080P+1*720P) | 4*D1+(1*1080P+3*720P) | ||
| Only IP(NVR): | Only IP(NVR): | ||
| 9*D1/8*960H /4*720P/2*1080P/1*720P+7*D1 | 16*D1 | ||
| /1*1080P+1*720P+2*D1 | /2*1080P +2*720P | ||
| /1*1080P+1*720P | |||
| +6*960H | |||
| /8*720P | |||
| motion detect | Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels) | ||
| audio | audio compression | G711A | |
| bidrectional talk | supported | ||
| Record&playback | record mode | manual>alarm>motion detection>timing | |
| local playback | 1~9ch playback,under analog mode 4*960H, | 1~16 ch playback,under analog mode 8*960h,Up to 4ch playback(4*960H@25fps) | |
| Up to 4ch playback(4*960H@25fps) | |||
| search mode | Time/calendar/event/channel search | ||
| Storage&backup | space occupation | video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;960H 12G~20G/ day*channel audio:691.2M/ day*channel | |
| record storage | HDD,network | ||
| backup mode | Network backup,USB,USB Burn,SATA | ||

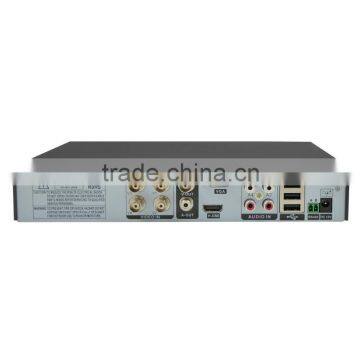

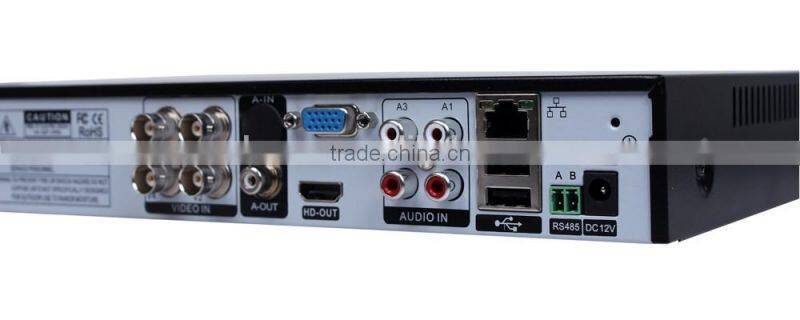

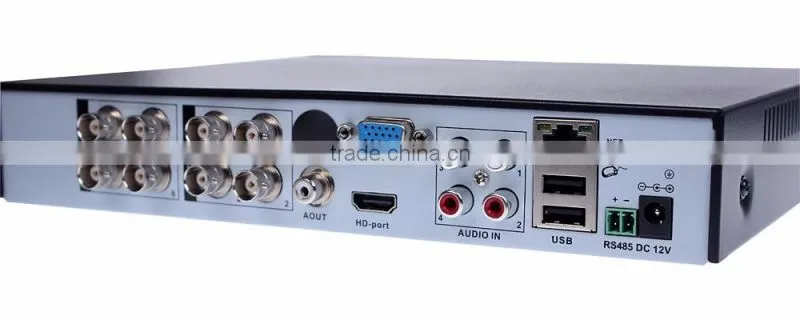

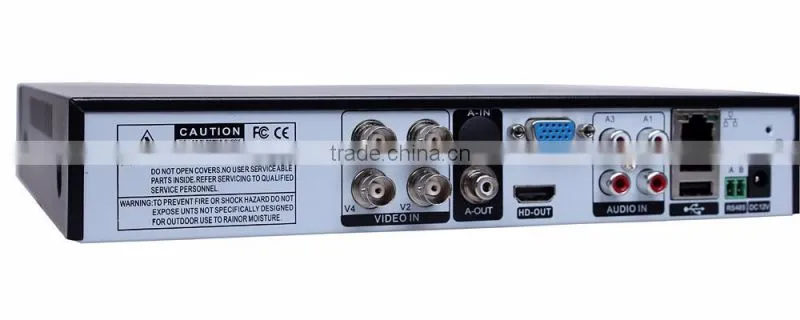

| interface | video input | 4ch BNC | 8ch BNC |
| (1.0Vp-p,75Ω) | (1.0Vp-p,75Ω) | ||
| video output | 1ch CVBS/BNC(1.0Vp-p,75Ω),1ch VGA,1ch HDMI | ||
| Loop-through output | Not supported | ||
| audio input | 4ch RCA | 2ch RCA | |
| (200-2800mV,30KΩ) | (200-2800mV,30KΩ,able to expanded to 6ch) | ||
| audio output | 1ch RCA(200-3000mV,5KΩ) | ||
| alarm input | no(support 4ch expasion) | ||
| alarm output | no(support 1ch expasion) | ||

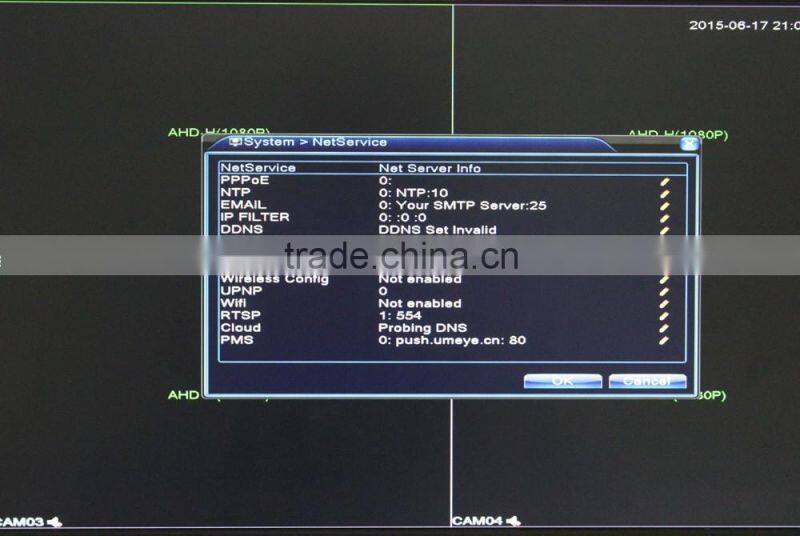

| net interface | RJ45 10M/100M | ||
| PTZ control | One RS485,one RS232;support multiple PTZ protocols | ||
| USB | 2 USB ports | ||
| hard disk | 2 SATA port(4T at most per one) | ||
| 3G,WIFI | supported | ||
| others | Power supply | 12V/4A | |
| Power consumption | <15W(hard disk without) | ||
| WorkingTemperature | 0℃-+55℃ | ||
| Working Humidity | 10%-90% | ||
| Atmospheric pressure | 86kpa-106kpa | ||
About Heron:
- Heron: Professional manufacturer in the security and CCTV surveillance field.
- We had been in business of chipset supplying for over 5 years.
- Warranty: 2 year for long term cooperation
- With long term OEM service for customer mainly from EU, USA, South America and Africa,
- we will be your ideal choice for OEM Home / Office security.
Certificates:
Packaging & Shipping

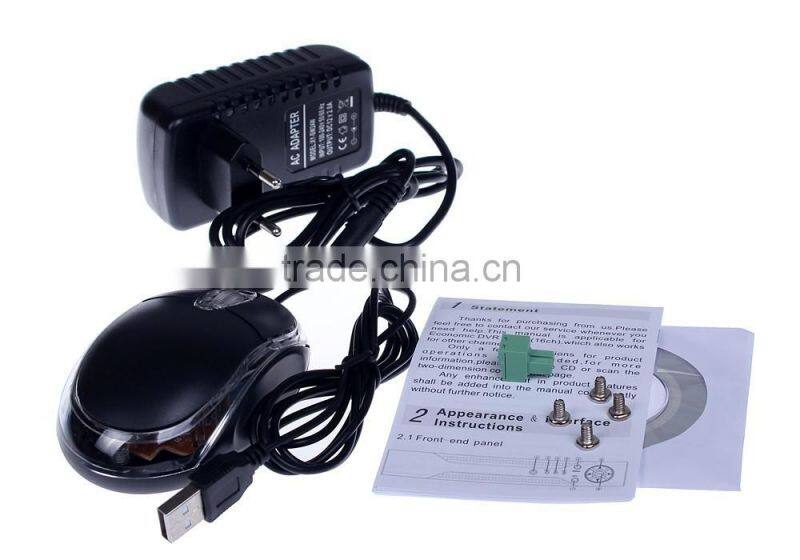

Package:
1* DVR
1*Power Supply ( US/EU/UK/AU Optional,12V2A support Max 1*3TB HDD)
1*Mouse
1* CD With Software
1*User Manual
Shipping:
- We generally ship goods via express couriers like DHL, FedEx, UPS and so on,which we have special discount with them. You can also arrange shipping agent to pick up goods from our factory
Payment Terms
-
T/T
a. We accept 100% T/T in advance for small amount;
b. For big amount, we can accept 30% deposit T/T in advance + 70% balance T/T before the shipment.
Note: When you make the payment, please write down the PROFORMA INVOICE (PI) NO. on the bank receipt as the reference. -
Paypal
4.5% commission charges will be added into the amount.(Less than 1000USD we accept paypal,more than 1000USD pls change other payment terms) - Security Payment of alibaba
-
Western Union
When you transfer to us pls give us the MTCN number -
CNY
If you have the Service and agent company in China,welcome to transfer CNY
Our Services
OEM Services:
1.LOGO
More than 50pcs of DVR total free print LOGO.(details pls confirm with us)
2.Label
Welcome to design your own label,and Please offer us your own model numbers
3.Packing box
If want to make your own boxes,please offer us CDR File. per size box at least 500pcs(more boxes more cheaper).
4.Manual
Please offer us the finished manual file that can be printed directly.
