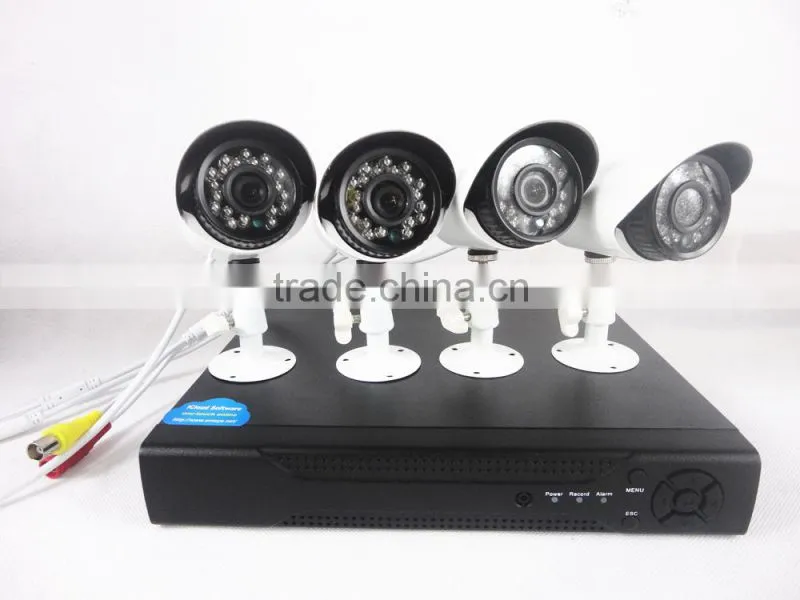

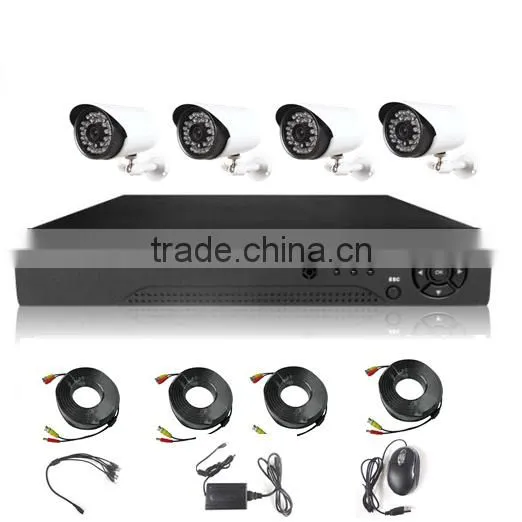

best price video surveillance hot sale high definition dvr 4ch cctv camera system
-----Welcome to Heron-----
Any question please feel free to contact with me,I am ready here
You are warmly welcomed to visit our factory
HBIR20-AHD322 HBAR18-AHD322 HBAR22-AHD322 HBIR33-4689 ER002
ER-AHD104D ER-D104A ER-AHD1016 ER-AHD104C ER-AHD104B
ER-01AHDA-4 ER-03AHDA-4 ER-06AHDA-4 ER-02AHDA-4 ER-07AHDA-4
Features:
DVR
1) 4CH 960H DVR
2) Real time monitoring
3) Hexaplex operation(Preview, recording, playback, and network live, backup, playback )
4) Connector:BNC,RCA,VGA,RJ45,USB,HDMI
5) 1 x mouse, 1 × IR Controller
6) Support IE&Mobile,PTZ,Static, Dynamic IP and DDNS.
Camera
1) Color 1/3" Cmos 700TVL,
2) IR LED: 20PCS, IR range: 20M.
3) Board Lens 3.6mm/F2.0

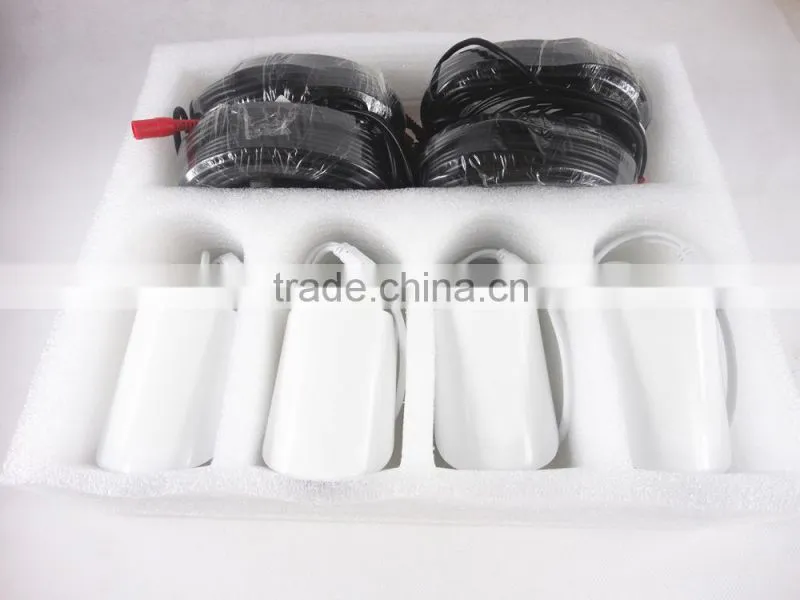

Cable
1) 4pcs 20m long BNC video cable with DC power cable
2) 1pcs 1 to 4 dc splitter cable

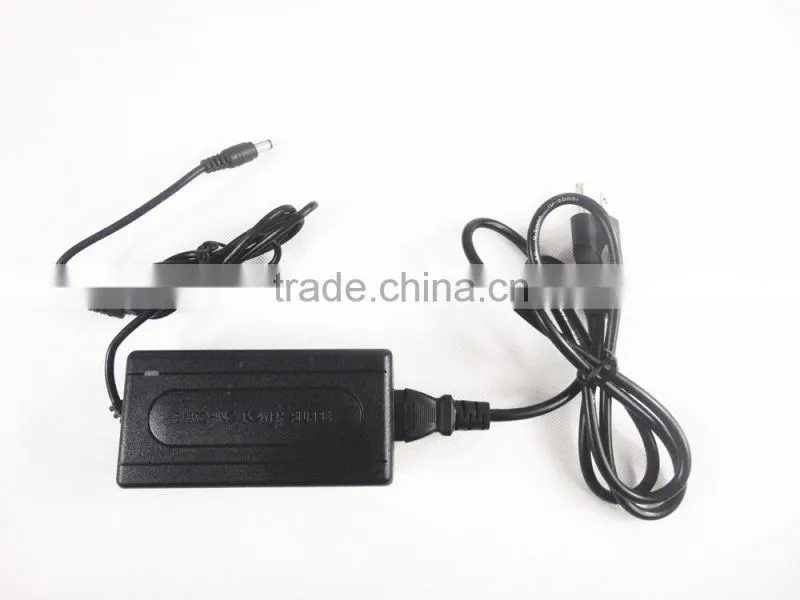

Power adapter
1)1pcs 12V 8A power adapter(USA,EU,UK,AU plug).
Specification:
| Model | ||
| DVR | ||
| System | Operation system: | Linux(embedded) |
| Multiplex Operation: | Pentaplex : Preview, record, playback, backup, network | |
| Video/ Audio/Alarm input | Video input: | 4CH,BNC, 1.0p-p, 75Ω, |
| Audio input: | 4CH, RCA, 2.0Vp-p,600kΩ | |
| Alarm input: | 4CH | |
| Video/Audio/Alarm output | HDMI output: | 1CH |
| VGA output: | 1CH | |
| Alarm output: | 1CH | |
| Video standard: | PAL/NTSC | |
| CVBS Output: | 1CH,BNC, (1.0Vp-p,75Ω) | |
| Audio output: | 1CH, RCA, 2.0Vp-p,600kΩ | |
| Video/Audio encoding parameters | Video compression: | H.264 |
| Display frame rate: | 960 x 480 ( NTSC ), 960x 576 ( PAL ); | |
| Record frame rate: | CIF:352×240 with 240 Fps (NTSC); 352×288 with 200 Fps (PAL) D1:720×480 with 240 Fps (NTSC); 704×576 with 200 Fps (PAL) 960H:960×480 with 240 Fps (NTSC); 960×576 with 200 Fps (PAL) | |
| Mobile phone monitoring: | Android / iphone / blackberry / windows / symbian | |
| Recording resolution: | Recording: 8ch CIF/D1/960H , Playback: 4ch 960H | |
| Synchronous Playback: | 4ch | |
| Hard Disk Driver | Type: | 1 SATA interface |
| capacity: | 1pcs SATA,Up to 4TB | |
| Network interface: | Static, Dynamic IP and DDNS , Support IE&Mobile,PTZ | |
| interface: | USB 2.0 | |
| Mechanical | Color: | Black |
| Dimension: | 354×245×45(mm) | |
| Net Weight: | 4kg | |
| Camera | ||
| Image Sensor | Color 1/3" cmos | |
| Horizontal Resolution | 700TVL | |
| Board Lens | 3.6mm/F2.0 | |
| LEDs | Φ5×20pcs IR LEDs | |
| Signal System | PAL/NTSC | |
| Effective Pixels | NTSC: 976(H)x494(V) & PAL:976(H)x582(V) | |
| SNR Ratio | ≥48dB(AGC OFF) | |
| Min. Illumination | 0.1 Lux | |
| ATR | yes | |
| Day and Night | yes | |
| Video Output | 1.0vp-p75Ω,BNC Connector | |
| Power | DC12V ±10% | |
| Operation Temperature | -10°C to +60°C | |
| Housing Color | White/Black | |
| Material | Metal | |
| Dimension | outdoor:86(W) x 60(H) x 55(D)mm,Indoor: 94 x 69(H) mm | |
| Net Weight | 400g | |
Shenzhen Heron Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.
We have more than years export experience with a turnover more than 20 million US dollars.
We win a high reputation with our great ideas of creation and High quality products. Shenzhen Heron has exported our products all around the world, like USA, European countries.
We are also OEM&ODM manufacturer .
We own a professional engineering team and with our own factories to service different need of customers.
We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. Shenzhen Heron Technology will be your first choice in the market.
1. Two years quality guarantee
3. Popular model will be suggested,keep our customer updated for the information about the products..
