Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr

Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr thumbnail-1
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr thumbnail-2
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr thumbnail-3
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr thumbnail-4
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr thumbnail-5
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr photo-1
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr photo-2
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr photo-3
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr photo-4
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p Free Client Software H.264 Ahd Dvr photo-5
US$ 1 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
ER
Contact Supplier Request Quote Chat Now
Shenzhen Heron Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number ER

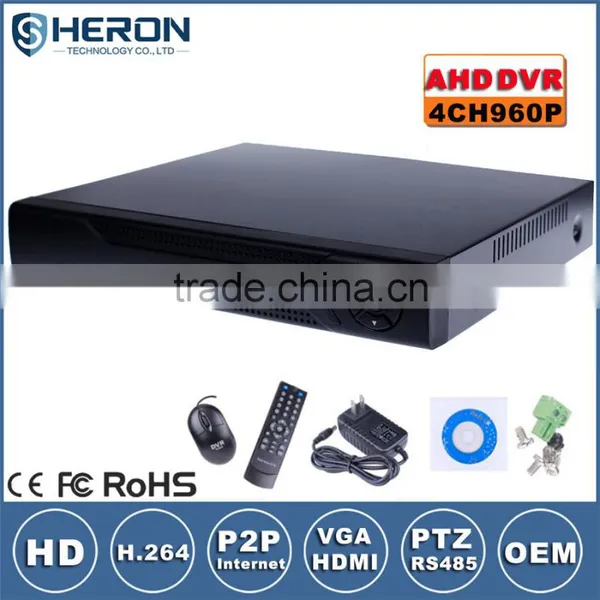

Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr

Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvrHybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvrHybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvrHybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr



Key Features:
1.Support AHD-M Series front realtime encoding;
2.Support 4ch 720P realtime recording resolution, ahead to 720P High-Definition period.
3.Support 1CH 720P playback ,each channel can be enlarge to full screen
4.Support High-Definition VGA/HDMI output(VGA and BNC can work at the same time)
5.Support Multiple cloud technology,Implement network penetration, alarm information push to mobile phones, and so on;
6.Support various cellphone surveillance(iPhone, Android Windows Mobile, BlackBerry,Symbian,);
7.Supports multiple web browser access ;
8.Support more than 20 languages(English Finnish French German,Greek Italian Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkey, etc.), breaking national boundaries;
9.Perfect protection circuit, unique triple watchdog function;;
10.Supporting web, CMS, center platform management software XMEYE



Specifications:





  Model ER-AHD104B
System Main processor Huawei Hi 3520D
Video video codec H.264(High Profile);
Encode 4*AHD-M
Decode 1*AHD-M
Multi-mode input

4*960H or
4*960P AHD(The hybrid access)
Audio Audio
compression		 G.711A
Intercom support
Recording and Playback Record mode Manual>alarm>motion detection>timing
Playback
Channels		 1(pure local input mode)
Storage and backup Space occupation 960H:12~20G/ day*channel
720P:20G~30G/ day*channel audio:691.2M/ day*channel
Backup mode Network backup,USB HDD, USB writer,
SATA writer
Interface Video input 4 BNC
Video output 1ch VGA,1ch HDMI
Audio input 1ch RCA
Audio output 1ch RCA
Alarm input NO
Alarm output NO
Network interface RJ45 10M/100M Adaptive Ethernet port
PTZ control YES
USB 2 USB ports
Hard disk 1 SATA(Each maximum support 6T  )
Wireless No
Other Power 12V/2A
dimension 255mm(length)* 236mm(width)*
44mm(height)















Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvrHybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvrHybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr

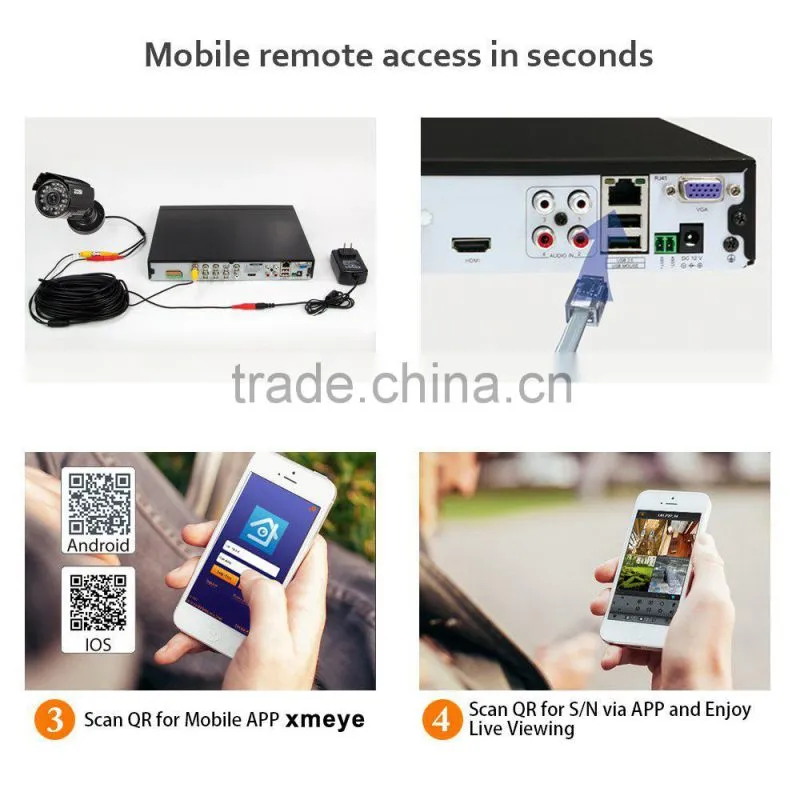

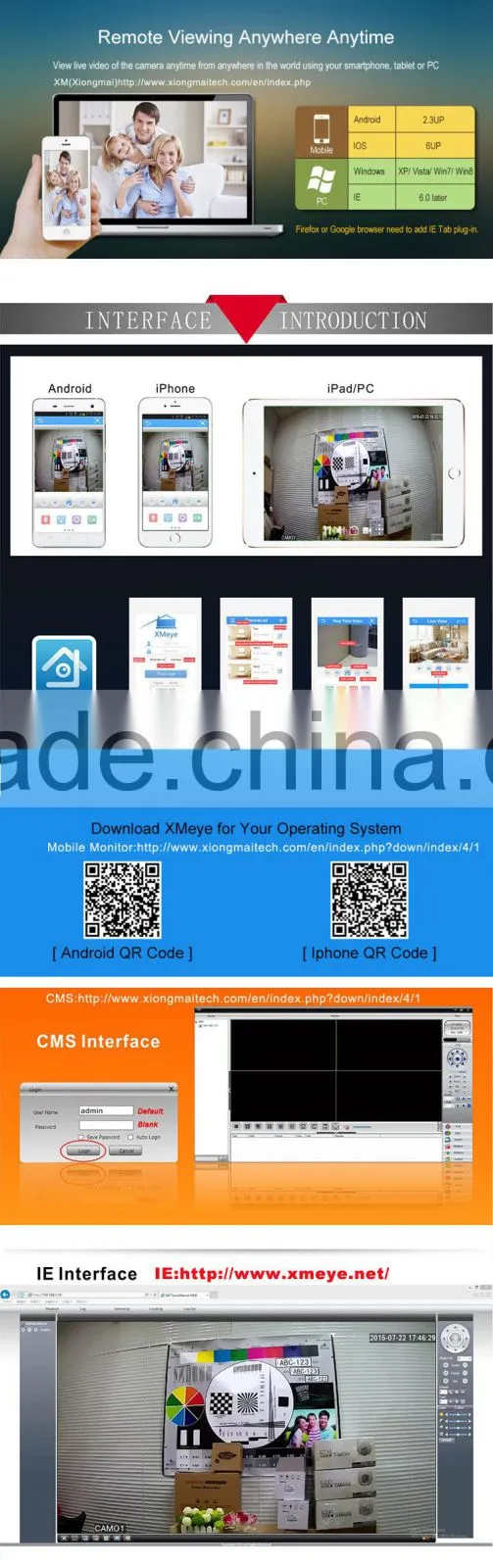

Mobile APP, CMS, web monitoring methods and Download Url

XM( Xiongmai ) Official website : /en/index.php

Mobile APP, CMS:/en/index.php?down/index/4/1
IE:





Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr

Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr

Factory:
Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr

Certification:

Hybrid 4ch 8ch 16ch 24ch 32ch AHD 720p AHD 1080p free client software h.264 ahd dvr



Company Information

 Shenzhen Heron Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.

We have more than years export experience with a turnover more than 20 million US dollars.

We win a high reputation with our great ideas of creation and High quality products. Shenzhen Heron has exported our products all around the world, like USA, European countries.

We are also OEM&ODM manufacturer .

We own a professional engineering team and with our own factories to service different need of customers.

We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. Shenzhen Heron Technology will be your first choice in the market.



Our Services



1. Two  years quality guarantee

2. OEM service to meet all your need.
3. Popular model will be suggested,keep our customer updated for the information about the products..
4. 7*24 Technical support
