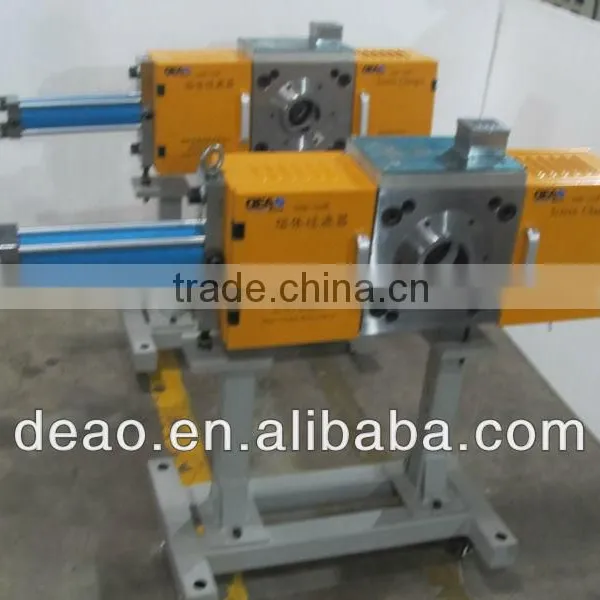

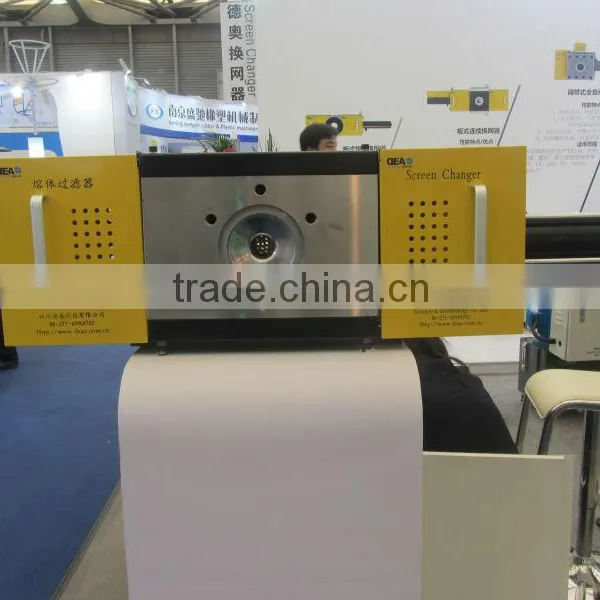

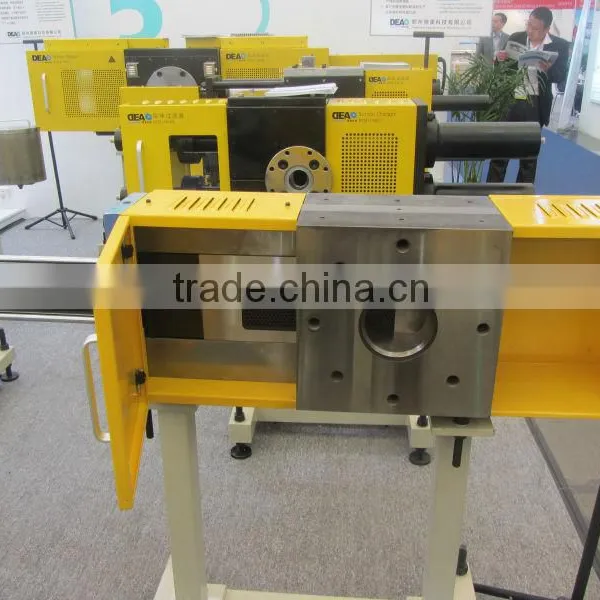

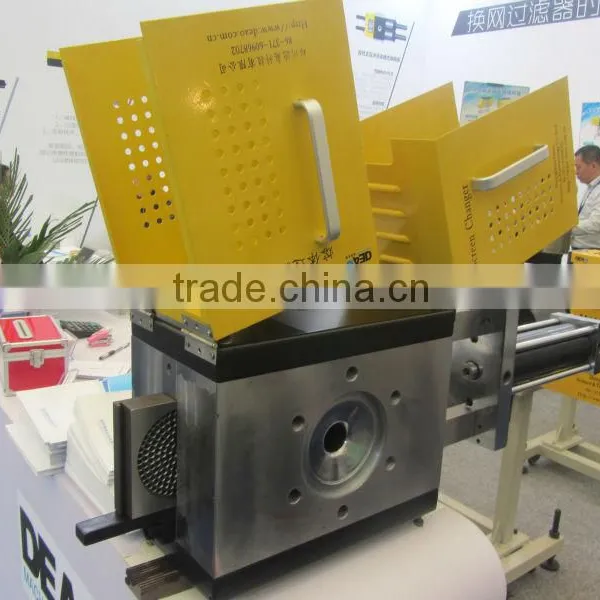

Normal Continuous Type Continuous Filtration for Film Machinery Single Screw
US$ 4,100 - 55,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Deao
Model Number:
DHBL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Newest Continuous Mesh Filter FOR Extrusion LinesUS$ 4,000 - 20,000MOQ: 1 Set -
Continuous FilterUS$ 5,000 - 20,000MOQ: 1 Set
-
Melt Filter for Pvc Conduit Pipe Extruder MachineUS$ 5,000 - 20,000MOQ: 1 Set
-
Polymer Melt Continuous Sceen Changer/melt Filter for Plastic Extrusion MachineUS$ 2,500 - 24,000MOQ: 1 Set
-
Plate Type Hydraulic Continuous Screen Changer for Polymer Melt FiltrationUS$ 1 - 9,000MOQ: 1 Set
Place of Origin
China
Brand Name
Deao
Model Number
DHBL
Product Description
Performance characteristics:
1No need to stop the working machine when changing the screen, no material explosion, noiseless, no material leakage, or production interrupt while working.
2This screen changer (self-owned patent ) is characterized by the convenience and safety to change the filtering screen with it. It is time-saving to install the filtering screen with the screen changer, and there is no need to manually disassemble the machine, adjust the para-position screen, or install the lock pact between different screens, thus the screen changing operation will be reduced by 90%.
How to work
the new continuous screen changer is based on the single plate screen changer, and it add the auto exhaust system , and the two square filter screen cavities distance is very close, when the screen replace is required, the plate with dirty screen is moved out and the new screen is moved to the working position. and the exhaust system started at the same time. so our screen changer can not only filter impurities, but also can greatly improve the plasticizing and homogenization effect of the raw material, make the product structure more homogeneous and product surface smoothness and higher quality
Our Services
Application fields:
1Applicable to all kinds of plastic products.
2Applicable to the production line of chemical fiber, rubber, collosol, adhesive, coating and finishing materials and other blending agent products, used for filtration of the material mixture.
Technical Data:
Type |
Screen type (mm) |
Heating power(kw) |
Pressure
(Mpa)
|
Output
(kg/h)
|
DHBL-80 |
70×70 |
3 |
≤25 |
≤250 |
DHBL-100 |
100×90 |
5.6 |
≤25 |
≤450 |
DHBL-130 |
120×110 |
6.8 |
≤25 |
≤550 |
DHBL-150 |
140×130 |
8 |
≤25 |
≤900 |
DHBL-200 |
190×170 |
10 |
≤25 |
≤1500 |
Company Information
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
