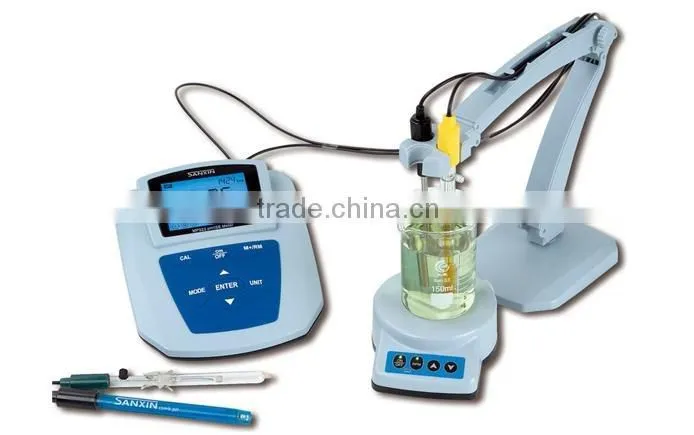

ISE/ PH Meter MP523
1.Technical Parameters:
1.1. pH:
Measuring range |
(-1.999 to 19.999) pH |
Resolution |
0.1/0.01/0.001 pH |
Accuracy |
Meter: ±0.002 pH, connect meter with electrode:±0.01pH |
Input current |
≤1×10-12 A |
Input impendance |
≥3×1012 Ω |
Stability |
±0.002 pH/3h |
Temp. compensation range |
(0 to 100) automatic or manual |
1.2. mV:
Measuring range (mV/ORP/EH) |
-1999.9 mV to 0 to 1999.9mV |
Resolution |
0.1mV |
Accuracy |
±0.03% FS |
1.3. Ion Concentration:
Measuring range |
0.00 to 14.00pX |
Display unit |
pX, mol/L, mg/L, ppm |
Accuracy |
Meter:±0.5 % reading(monovalent), ±1.0 % reading (bivalent) |
Temp. compensation range |
0 to 60 automatic or manual |
1.4. Temperature:
Measuring range |
-10 to 110 |
Resolution |
0.1 |
Accuracy |
5 to 60 range: ±0.4 other range: ±0.8 |
1.5. Other Technical Parameters:
Data storage |
900 groups |
Storage content |
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time |
Power |
DC9V/300mA |
Communication connector |
RS-232 |
Size and weight |
160 x 190 x 70mm/880g |
Quality and safety certification |
ISO9001:2000, CE and CMC |
1.6. Working Condition:
Environment temperature |
5 to 35 (0.01 grade) 15 to 30 (0.001 grade) |
Environmental humidity |
≤75% |
IP rating |
IP54 Dustproof and waterproof |
2.Meter’s Complete Kit:
2.1. Model MP523 pH/ISE meter
2.2. Model 602 flexible electrode holder
2.3. Model 901 intelligent stirrer
2.4. 201T-M plastic pH/ATC three-in-one combination electrode
2.5. 2503-C glass pH combination electrode
2.6. MP500 temperature electrode
2.7. Model 6213 double salt bridge reference electrode
2.8. pH standard buffer solution(pH4.00, pH7.00 and pH10.01/50mL)
2.9. 9V power adapter(meter use)
2.10. 6V power adapter(stirrer use)
2.11. B628 stirring bead
2.12. RS-232 communication cable
2.13. MP523 communication software disk
2.14. Operation manual
2.15. Brief operation instruction
