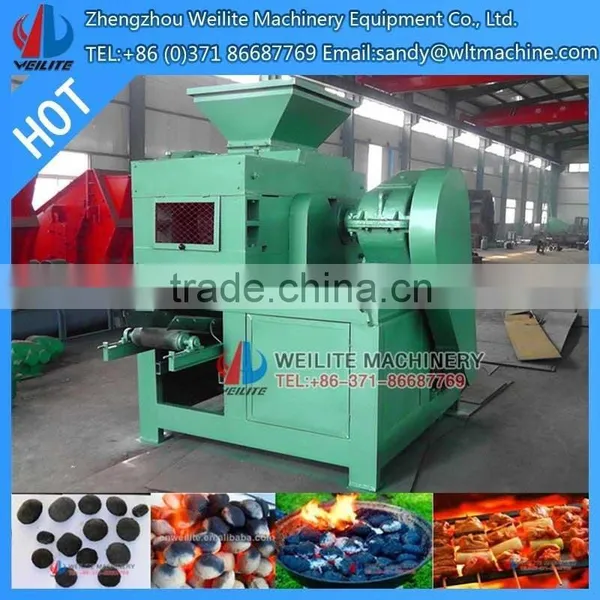

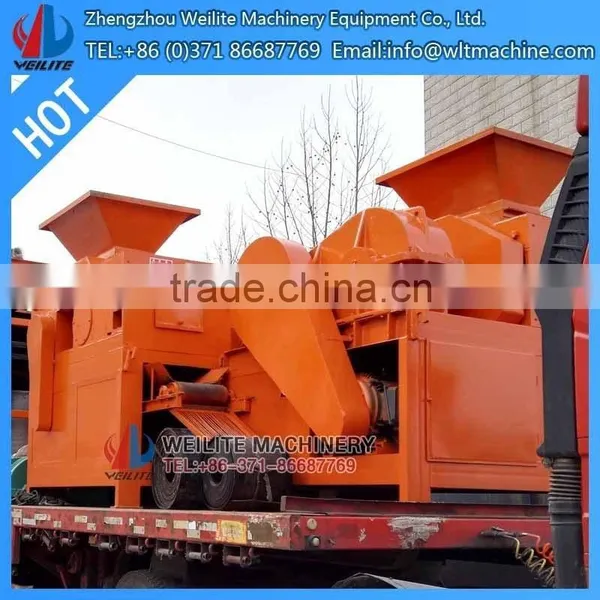

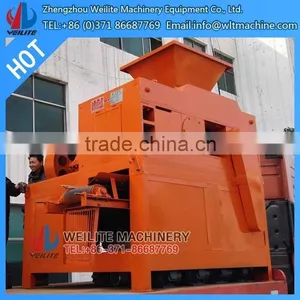

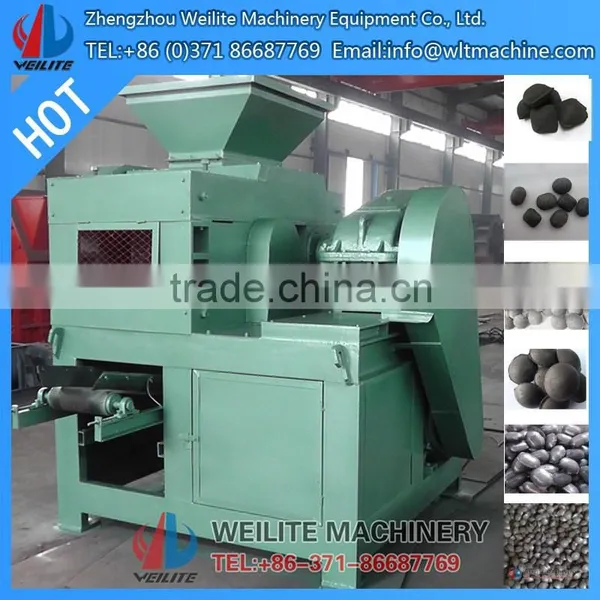

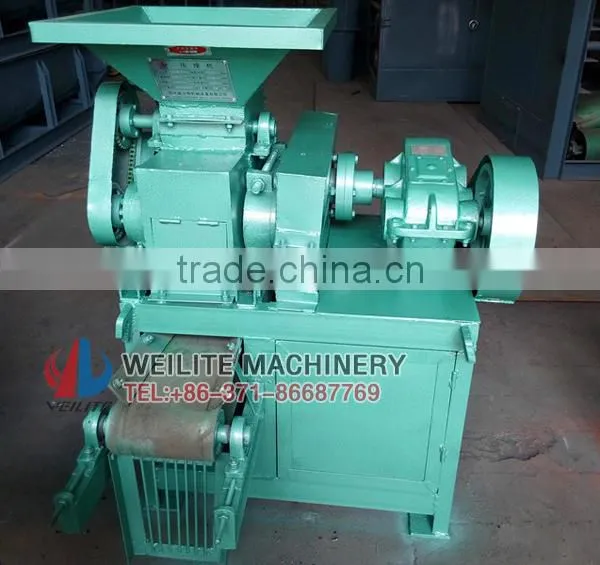

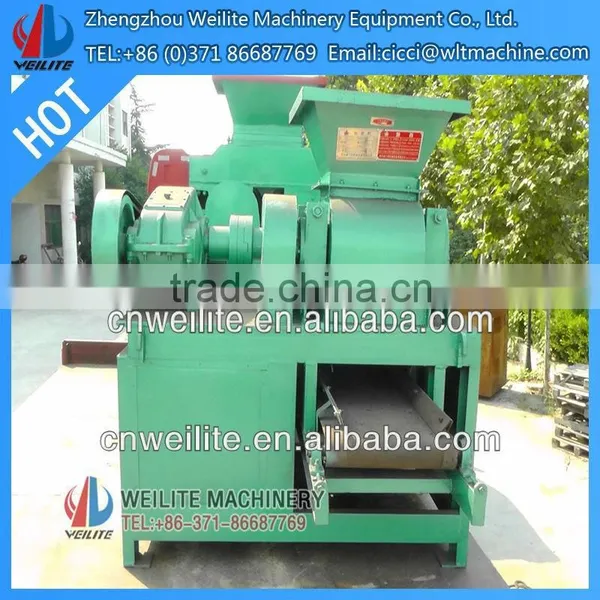

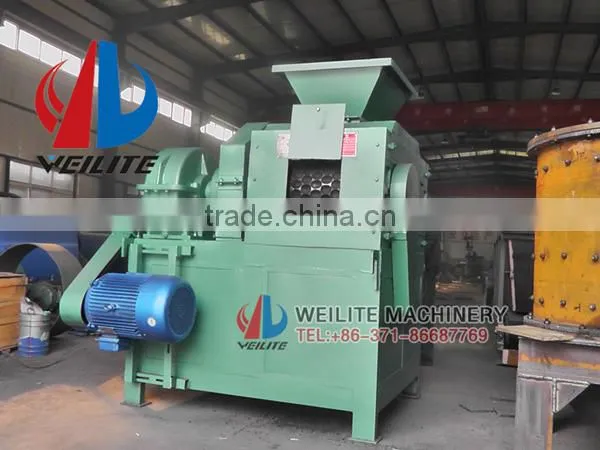

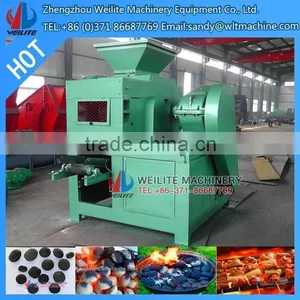

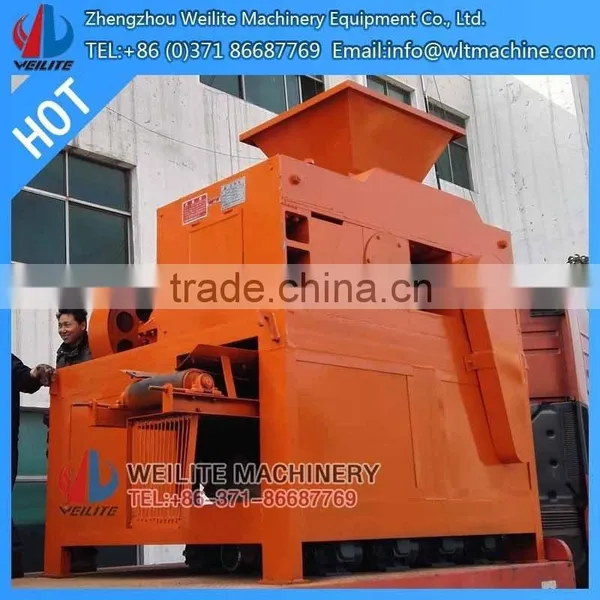

Part One: Brief Introduction of Briquette Making Machine
Briquette Making Machineis widely used in mining and chemical industry to press different molding powder materials such as charcoal ,coal ,gypsum,tailing,kaolin,activated carbon,coke powder,ferrous and non-ferrous powder and other ends into pillow,diamond,round or other shapes.

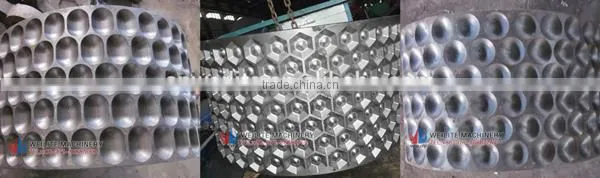

Part Two: Rollers of Briquette Making Machine
Part Three: Requirement of Raw Material and Final Products
Requirement of Raw Material
1)Raw material size requirements:≤5mm.(If larger, crusher should be used.)
2)Best raw material moisture:8%-12%.(If larger, dryer should be used.)

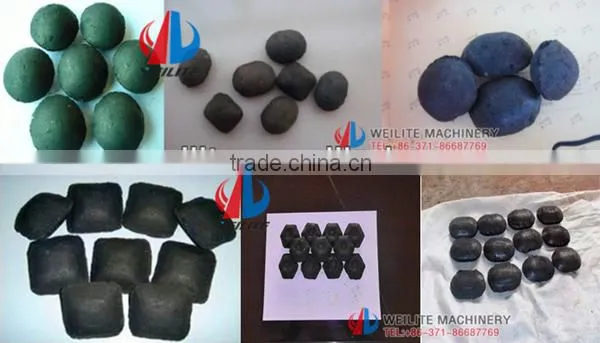

Final Product
1)Finished briquettes shape: round or square ,hard and tense.
2)Finished briquettes size:30*100mm or custom-made.

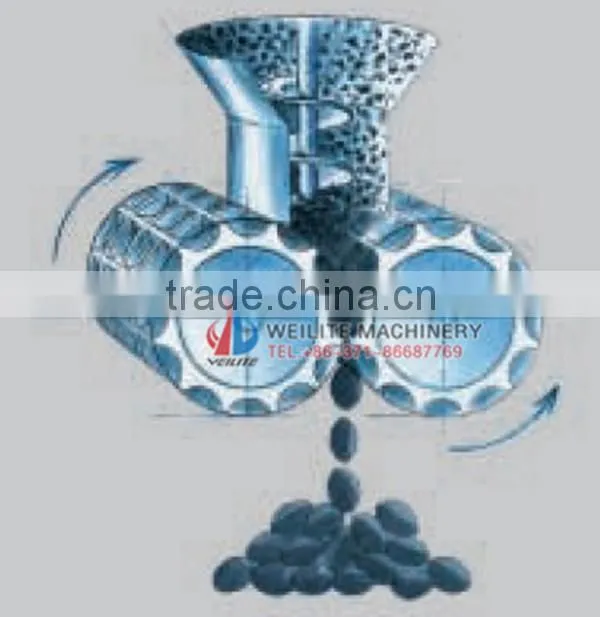

Part Four: Working Principle of Briquette Making Machine
Briquette Making Machine will pass the powder on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product .
Part Five: Main Data of Briquette Making Machine
Model |
WLXM- 360 |
WLXM- 400 |
WLXM- 500 |
WLXM- 650 |
WLXM- 750 |
WLXM- 850 |
WLXM- 1250 |
Capacity(t/h) |
2-4 |
6-8 |
8-11 |
13-18 |
18-25 |
25-35 |
40-70 |
Pressing roll width(mm) |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Pressing roll diameter(mm) |
360 |
400 |
500 |
650 |
750 |
850 |
1250 |
Motor power(KW) |
7.5 |
11-15 |
18.5-22 |
20-30 |
45 |
75 |
130 |
Speed(r/min) |
18 |
15 |
13 |
13 |
13 |
10 |
10 |
Reduction gear |
ZQ350 |
ZQ400 |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ1250 |
Sphere size |
Custom-made (Commonly used 30mm-60mm) |
||||||

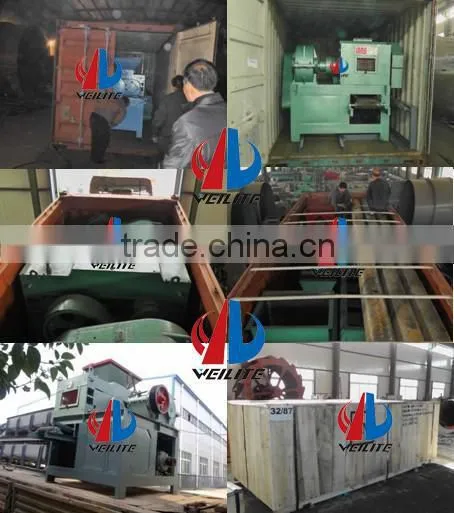

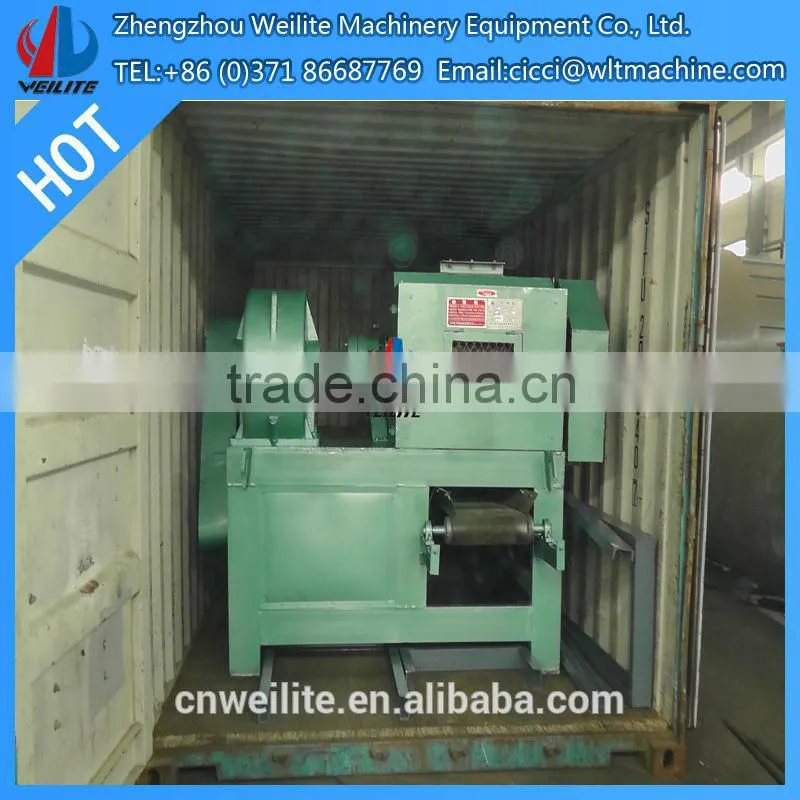

- standard containers
- bare main machine
- motors and small parts are packed in wooden cases
- or as your requirement
1. How much is the raw material moisture to shape right ? What is the special requirement for raw material?
- The moisture of raw material general control in 8% to 12%. The diameter of the raw material must be smaller than 5 mm.
2. What are the specifications of finished briquettes?
- According to the needs of customers, we can manufacture different specifications of the mold.
3. Whether you need drying after forming briquettes?
- You should better dry the finished briquettes. Drying methods usually use mesh belt dryer for drying.
Zhengzhou Weilite Machinery Equipment Co., Ltd. is a manufacturer and exporter oriented enterprise. Our company produces large and medium-sized mining machinery; our main products are briquette machine, dryer, crusher, conveyor belt, grinding mill etc. All of them have enjoyed great popularity in world markets.
Contact Information
- Contact person: Shayne Wang
- Tel:+86 (0)371 86687769
- Website: /
For more details, please don't hesitate to contact me!
