850-90 Type Trailer Use Stainless Steel Material Single Railway 850*850*90mm Trailer Turntable
1. 800-90 Type Trailer Use Stainless Steel Material Single Railway 800*800*90mm Trailer Turntable

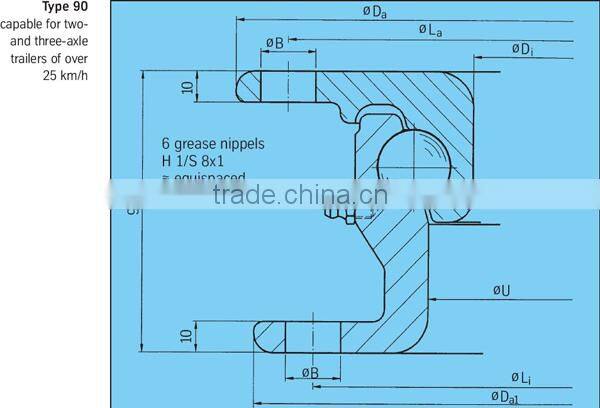

Below please find the reference number of trailer turntables, and click the number to see more details and specifications.
| Number · Type | DL mm | weight kg | Da mm | Di mm | H mm | La mm | Li mm | B mm | n1 | Da1 mm | U mm | d mm | 2 axles kN | more than 2 axles kN |
|
360.18.0800.000 Type 90/1000.18 |
894 | 64 | 1008 | 854 | 90 | 974 | 960 | 6 | 1000 | 885 | 18 | 75 | 70 | |
|
360.20.0800.000 Type 90/1000.20 |
894 | 64 | 1008 | 854 | 90 | 974 | 960 | 6 | 1000 | 885 | 20 | 90 | 80 | |
|
360.22.0800.000 Type 90/1000.22 |
894 | 64 | 1008 | 854 | 90 | 974 | 960 | 6 | 1000 | 885 | 22 | 110 | 100 | |
|
360.24.0800.000 Type 90/1000.24 |
894 | 64 | 1008 | 854 | 90 | 974 | 960 | 6 | 1000 | 885 | 24 | 160 | 140 | |
|
360.18.0900.010 Type 90/1100.18 |
994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 18 | 90 | 80 |
|
360.20.0900.010 Type 90/1100.20 |
994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 20 | 110 | 100 |
|
360.22.0900.010 Type 90/1100.22 |
994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 22 | 130 | 120 |
|
360.24.0900.010 Type 90/1100.24 |
994 | 71 | 1108 | 954 | 90 | 1074 | 1060 | 18 | 6 | 1100 | 985 | 24 | 180 | 160 |
|
360.22.1000.010 Type 90/1200.22 |
1094 | 79 | 1208 | 1054 | 90 | 1174 | 1160 | 18 | 6 | 1200 | 1085 | 22 | 160 | 140 |
|
360.24.1000.010 Type 90/1200.24 |
1094 | 79 | 1208 | 1054 | 90 | 1174 | 1160 | 18 | 6 | 1200 | 1085 | 24 | 200 | 180 |
|
360.22.1100.010 Type 90/1300.22 |
1194 | 87 | 1308 | 1154 | 90 | 1274 | 1260 | 18 | 6 | 1300 | 1185 | 22 | 180 | 160 |
2. DRE Trailer Turntables Applications
DRE turntables are widely used in trailers, semi-trailers, platform truck,trucks and agricultural vehicles.
3. DRE Trailer Turntables Packaging

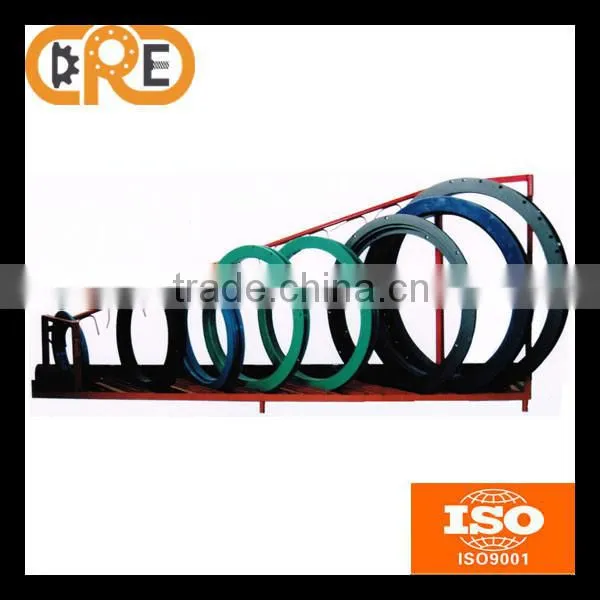

Turntables are packaged well then put on the tray.
4.Certification
Every step of processing from raw material to packaging is controlled strictly. The test report will be sent with commercial invoice,packing list and other documents to customer directly.
5.Delivery
1.Most of the standard ones are in stock which we can send in 3-5 days after inspection and package.
2.But there maybe some items are not in stock need to be produced,then please check with our sales before your payment.
Know More About Our Company
Brief Introduction
Our company is establisted in 1998.We supplied excellent product and service to every user.We have gained ISO9001 certificate for our control of quality. We are specialized in slewing bearing, slew drive, gears and other medium and large size bearing.We can provide our customerss with exact, suitable, economic products also the technical services.Our company website address is .
6. Market Distribution& Customer Reference
DRE customers are spreaded all over the world and annual turnover kept increasing in past 5 years.We've build up good relationship with our customers all over the wrold, eapecially in the Europe and USA market.
