Overview

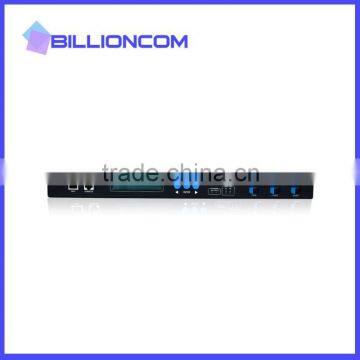

OLP6300B series optical line protection devices are engineered to provide rapid switching ability to protect important optical transmit system. It ensure the transmit system working normal even the main fiber was broken. It widely used in a variety of system, including: PDH, SDH, C/DWDM and CATV networks for optical fiber protection. OLP6300B includes a simplified and robust device management system, with a user-friendly intuitive GUI.
The user can clearly read optical parameters on a bright LCD screen on the front panel and perform simple manual settings through pressing buttons. Besides the button-setting mode, it also provides CLI and EMS network management, and also supports local serial port upgrade.
Function
- Support auto return, auto no return, manual/ forced mode optical switch;
- Support the liquid crystal display;
- Support the working channel optical power show;
- Allows users to adjust the decision threshold optical switching power;
- Support 220V and-48V dual power supply;
- Support the backbone lines dull sound alarm;
- Function menu:
- Part of optical power
- Threshold part of the wavelength
- Warning section
- The delay part
- Protection methods
- 1+1 / 1:1 Protection methods
- Warning display
- The main fiber failure
- Fiber optic equipment failure
- Tx matt input, the main power failure
- -48V power failure
Specifications
- Equipment Size: 440 × 220 × 44.5mm (1U/19 inches)
- Power supply: 220V AC 47 ~ 63Hz, or-48V DC
- Power consumption: <5W
- Device Weight: <4 kilograms
- Operating temperature: 0 ~ 60 º C
- Storage Temperature: -40 ~ +85 º C
- Humidity: 5% to 95% non-condensing
- Altitude: -40 meters to 5,000 meters
- Working Hours: MTBF 140127 hours
- Display: 160 × 32 pixels
- Management:
- net
- 2.Network management
- 3.Keys & LCD
- nsole
- Device Interface:
- RS232
- Model Management button
- SC optical interface or 6 FC / UPC
- 100M Ethernet port
Application

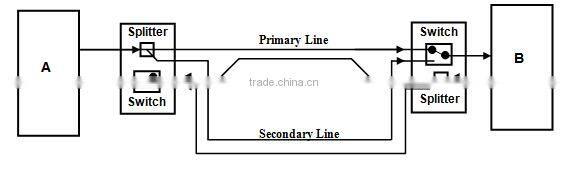

1+1
1:1
Technical Parameters
Performance |
Parameter |
||
1+1 |
1:1 |
||
Wavelength Range |
1310±50nm &1550±50nm |
||
Monitoring Range of Optical Power |
+23~50dBm |
||
Insertion Loss |
Transmitter |
≤3.8dBm |
≤1.5dB |
Receiver |
≤1.2dB |
||
Retum Loss |
≥45dB |
||
Crosstalk |
≥55dB |
||
Optical Power Resolution |
≤0.01dB |
||
Optical Power Measurement Accuracy |
≤0.5dB(+25dBm~-40dBm) |
||
Wavelength Dependent Loss |
≤0.25dB |
||
Polarization Dependent Loss |
≤0.1dB |
||
Switching |
≤15ms |
||
