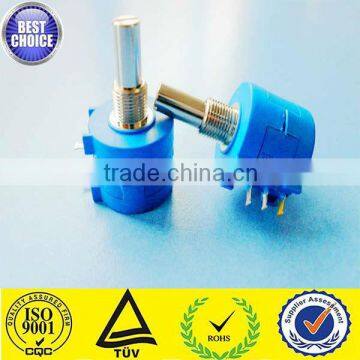

Precision Wire-wound Potentiometer WXD3590 multiturn potentiometer

FOB Price

USD $1.3 - $1.8 / Piece

50 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port guangdong shanghai ningboetc.
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	Bonens
Model Number	3590S potentiometer	Type	Rotary Potentiometer
Technology	Wirewound	Resistance	100Ω~100KΩ
Resistance Tolerance	±2%,±5%	Rated Power	2W
Max. Operating Voltage	500V	Operating Temperature	-55℃~+125℃

Product Description

Specifications

1.Manufacture
2.wire-wound potentiometer
3.100ohm~100Kohm
4.Rohs & ISO
5,Trial order welcomed

Electrical Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±2%, ±5%
	Terminal resistance	≤2%R or 5Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)

Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m

•Products of special resistance and specifications are provided.

•Products with linear accuracy of ±0.25% are provided.

•Products are corresponded to the general specifications of GB/T5729-94

Other Main Products:

Our Partners:

CHANGHONG

TAIWAN KEZHENGXIN ELECTRONICS CO.

XI’AN HONGXING ELECTRONICS CO.

JIALING MOTORCYCLE

KLS ELECTRONIC CO., LTD.

Some parts of our certificates

Workflow:

About Package:

25 pieces/plastic box

50 pieces/box

600 pieces/carton

The Weight:14.6kg

The Size of Carton:420mm*330mm*310mm
