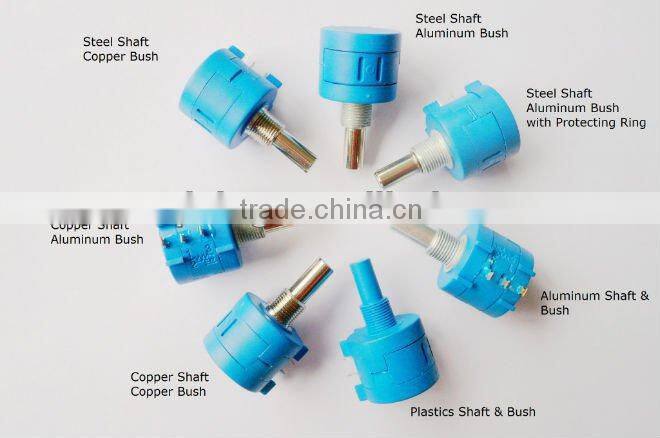

Multi Turn Flat Shaft Wirewound Potentiometers WXD3590 Rotary 10 Turns Potentiometer
US$ 1.2 - 1.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3590
Payment & Shipping
Payment Methods:
Port of Shipment:
guangdong shanghai ningboetc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dial for Potentiometer Wxd3540US$ 1 - 1.5MOQ: 1 Piece -
Dial for Potentiometer 3590US$ 1 - 1.5MOQ: 1 Piece
-
Metal Dial for WXD3590SUS$ 1 - 1.5MOQ: 1 Piece
-
3590 Wirewound Potentiometer With DialUS$ 1 - 1.5MOQ: 1 Piece
-
WXD3590-S 503 50k Standard Rotary Type PotentiometersUS$ 1.2 - 1.5MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
3590
Type
Other, precision
Technology
Wirewound
Resistance
100Ω~100KΩ
Resistance Tolerance
±2%,±5%
Rated Power
2W
Max. Operating Voltage
500V
Operating Temperature
-55℃~+125℃
Specifications
1.Copper Shaft,aluminium Bush2.range of nominal resistance:100ohm-100K ohm
3.resistance tolerance:2%,5%
4.best price&qualit
| Electrical Characteristics |
Range of nominal resistance | 100~100KΩ | ||||
| Resistance tolerance | ±2%, ±5% | |||||
| Terminal resistance | ≤2%R or 5Ω | |||||
| Linear accuracy | ±1%, ±0.5% | |||||
| Electrical angle | 3600°±10° | |||||
| Insulation resistance | ≥ 200MΩ | |||||
| Withstand voltage | 500V (DC or AC peak value) | |||||
| Environment Characteristics | Rated power | 2W (70°C) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±100×10-6/°C | |||||
| Temperature shock | ΔR≤±3%R | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability) | ΔR≤±3%R, Insulation Resistance≥100MΩ | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, Electrical break≤100μS | |||||
| Rotational life(10000cscles) | ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m | |||||
| Electrical endurance (70°C, 2W, 1000h) | ΔR≤±3%R | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m | |||||
| Physical Characteristics | Total mechanical travel | 3600°±10° | ||||
| Rotational torque | 2~10mN.m | |||||
| Stopper torque | ≥300mN.m | |||||
