Specifications
tungsten carbide drill bit nail1. a lot of grades can be choose according to different application

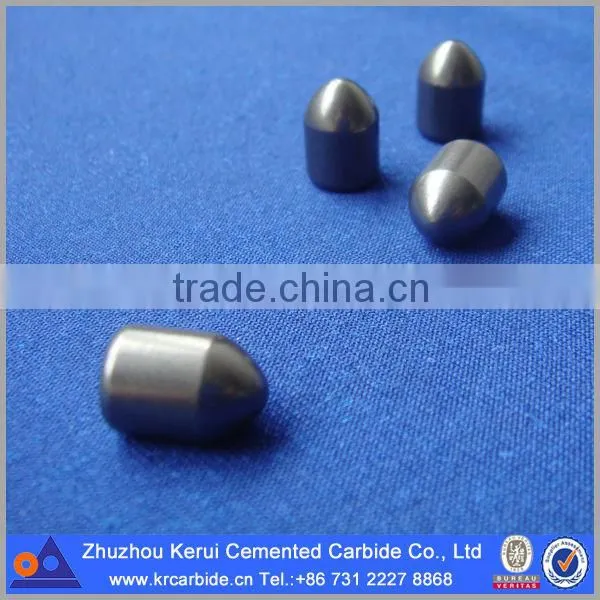

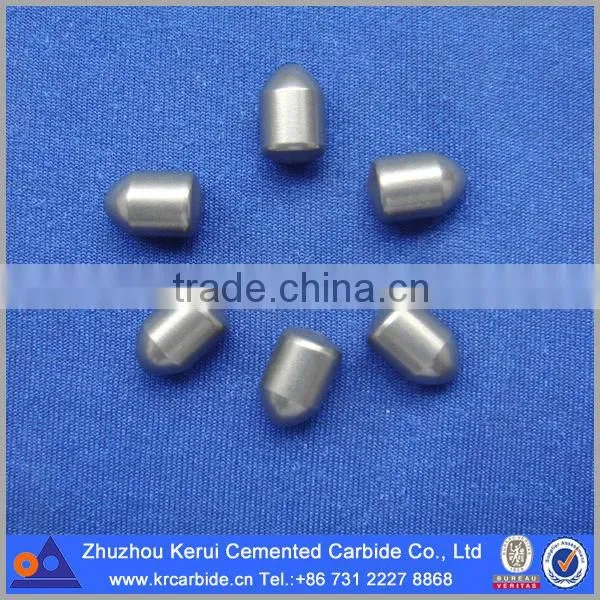

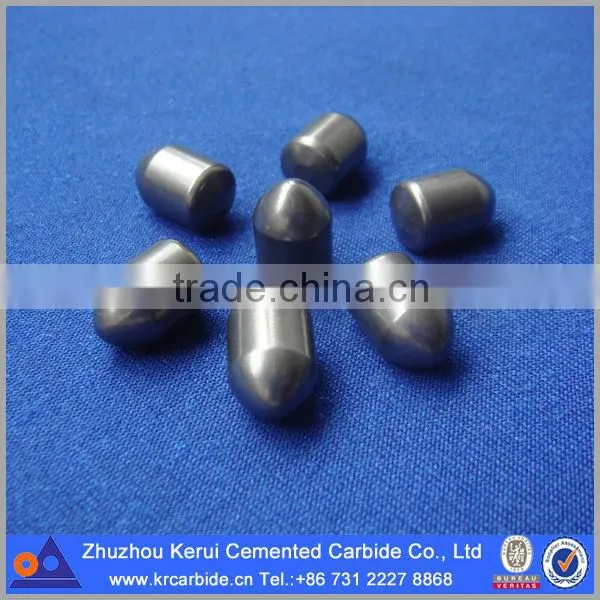

tungsten carbide drill bit nail
Advantage and application of tungsten carbide drill bit nail
1 Using over 99.95% high purity tungsten carbide powder,the strenght and hardness will be more better.thereby a longer service life .
2. Taking isostatic pressing precision machine,our carbide button has a uniform density,and do not break easily .
3. Through the overvoltage sintering furnace for sintering, The wear resistance of carbide buttons will be increased by 24%.
4. Grinded by centreless grinder ,its has precise size, welding will be more tightly, and not to drop from drill .
5. a lot of grades can be choose according to different application.
6. exactly suggestion for the button used for soft, medium hard, hard and very hard rock
7,application field:Widely used in open-pit mine for mining, quarry, water and electricity engineering, water well drilling, the support of excavation side column etc.
8,picture details:

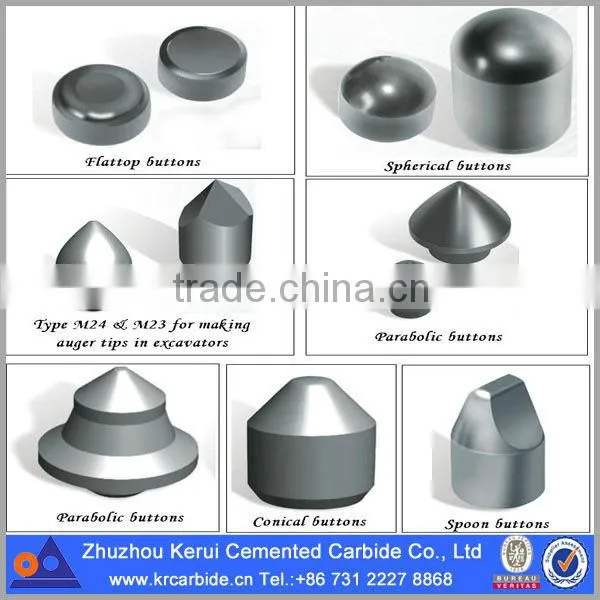

type Q(spherical),type Z(conical),type D(parabolic),type P(flat-top) for optional
Our main market is America, Mid-east, Europe, South Asia and Africa.
Followings are some of our distinguished customers:
- Incredilution LLC ( USA )
- AXMAK LTD ( Egypt )
- Erkimpeck Turism Ve Ticaret ( Turkey)
- Kings Wear Ltd ( Kenya )
- BNT Eastern Europe Zrt. ( Hungary )
- Sorkun Mermer Ltd STI ( Turkey )
- ABRATEK A/S ( Denmark )
Physical & mechanical properties of main grades:
Optional grade: YK10/YK20/YK25/YK40/YG6C/YG8C/YG11C/YG13C/YG15C
Full set of detection devices :
Every batches of material will be tested in density, HRA, TRS and magnetic saturation, test report will be kept in our files.
Strict quality control system to make sure every single piece can match your requests and we guarantee full payment returned if any quality problems with our tungsten carbide buttons.
Physical & mechanical properties of recommend standard grades:
Grade |
ISO grade |
Density |
Hardness |
TRS |
(g/cm3) |
(HRA) |
(Mpa) |
||
YG8C |
K30 |
14.7-14.8 |
>88.5 |
>2200 |
YG11C |
K40 |
14.4-14.5 |
>87.2 |
>2300 |
YG8C: used for the drilling of medium hard and soft rock formation.
YG11C: used for the drilling of hard and super hard rock formation.
Package & Transportation
About Us:
Zhuzhou Kerui Cemented Carbide Co. Ltd. is a professional tungsten carbide manufacturer with ten years' experience in Zhuzhou City,
We are specializing in carbide button,stone cutting tips,brazed tips,carbide insert as well as the carbide bars,strip and rods and OEM production as drawing and request.
