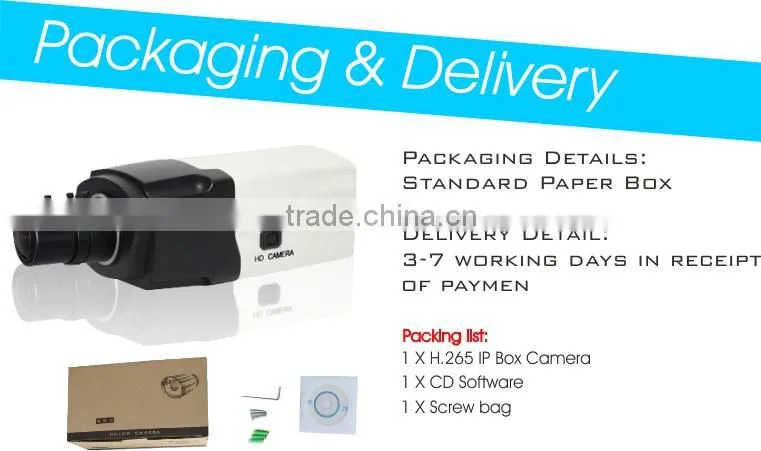

Help Center4K Lens Hi3516A + OV 4689 5.0 Megapixels Sony CMOS HD Network Box Camera H.265 Network Box CCTV Camera With POE Function Quality Choice
Related Products
-
Hi3516A SONY IMX185 IP H.265 CMOS Super Low-Illumination Vari Focal Outside Adjust IR Camera 1080P IP Bullet CCTV CameraNegotiableMOQ: 1 Piece -
H.265 PANASONIC 34229 CMOS Hi3516A WDR Outside Adjust IR Bullet Camera Vari Focal 1080P IP H.265 CCTV New Products CameraNegotiableMOQ: 1 Piece
-
High Quality Hi3516A 4.0MP H.265 1/3" CMOS HD IP Night Vision Bullet Camera IP CCTV CameraNegotiableMOQ: 1 Piece
-
H.265 Bullet Camera 5.0 Megapixels Sony CMOS Night Vision HD Network Camera H.265 IR Bullet CCTV CameraNegotiableMOQ: 1 Piece
-
Hi3516A Super Low-illumination H.265 Dome Camera 2.0MP HD IP Dome CCTV Camera IMX185 CMOSNegotiableMOQ: 1 Piece
Camera:

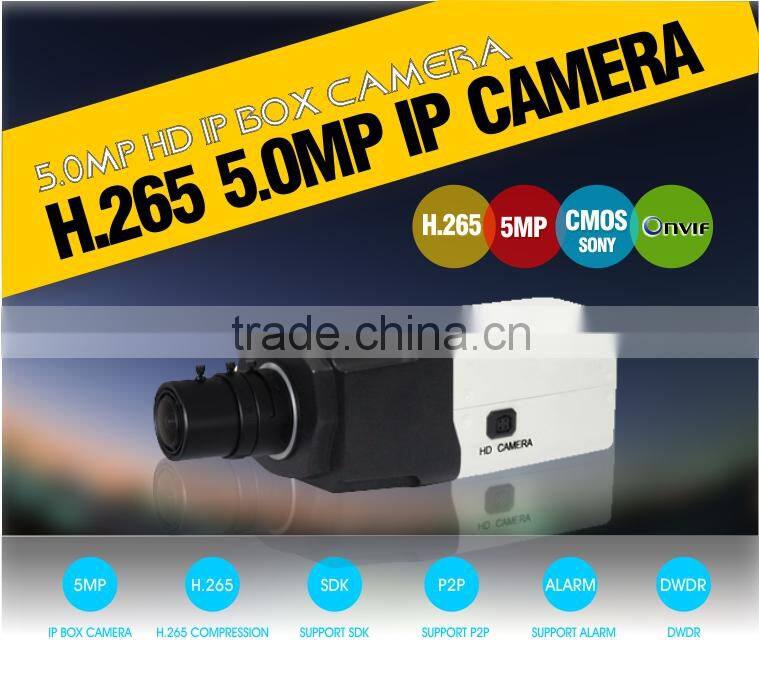

1/2" 5.0 Megapixels Progressive Scan Sony IMX178 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 2560X1920, 0.05 Lux/F1.2 (color); 0.01 Lux/F1.2 (black and white); TF card slot, IR - CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Dome Features:
1.1/2" 5.0 Megapixels Progressive Scan Sony IMX178 CMOS
2.Max 25/30fps/5.0 Megapixels (2560x1920)
3.H.264/H.265 & MJPEG dual-stream encoding
4.Privacy Mask, Motion Detection
5 Support Onvif 2.4 protocol
6. TF Card Slot,WDR≥120dB

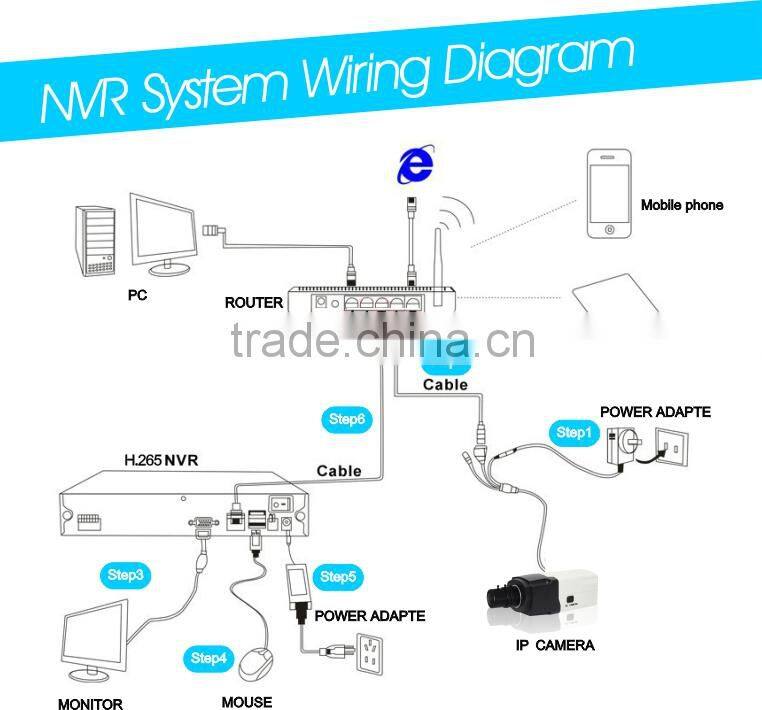

7.NVR Compatible:Hikvision DaHua &the NVR With onvif Protocols
8.POE function
9.IP66 rating
| Mode | Name and Description | ASIH30-B7-4520 5.0MP HD network Box Camera |
| ASIH30-B7-4520 | ||
| Camera Specification | Media Processor | Hi3516A + SONY IMX178 CMOS |
| Image Sensor | 1/2” 5.0 megapixels Progressive Sony IMX178 CMOS | |
| Effective Pixels | 2560(H)x1920(V) | |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 Lux/F1.2 (color), 0.01 Lux/F1.2 (black and white) | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Day/Night Mode | Auto,dual IR-Cut filter | |
| WDR Dynamic Range | Digital WDR | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Digital Denoise | 3D Digital Denoise | |
| Compression | Compression | H.264/MJPEG/H.265 |
| Resolution | 2560*1920/2560*1080/1080P(1920×1080)/D1(704×576)/VGA(640*480)/QVGA(320×240) | |
| Main Stream Frame | 2560X1920/2560*1080/1920×1080(1 ~ 25/30fps) | |
| Sub Stream Frame | D1/VGA/QVGA(1 ~ 25/30fps) | |
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP | |
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | Support | |
| RS422/RS485 | Support | |
| USB | Support (64G USB flash/WIFI/3G) | |
| Alarm in | Support | |
| Alarm out | Support | |
| IO Interface | Support | |
| Memory Card | Max 64G TF Card | |
| General Parameters | Operating Conditions | -30℃ ~ 60℃,Humidity less than95%(Non-condensing) |
| Power Supply | DC12V±10%/ PoE(Optional) | |
| Power Consumption | <7W | |
| Weather proof rating | IP66 | |

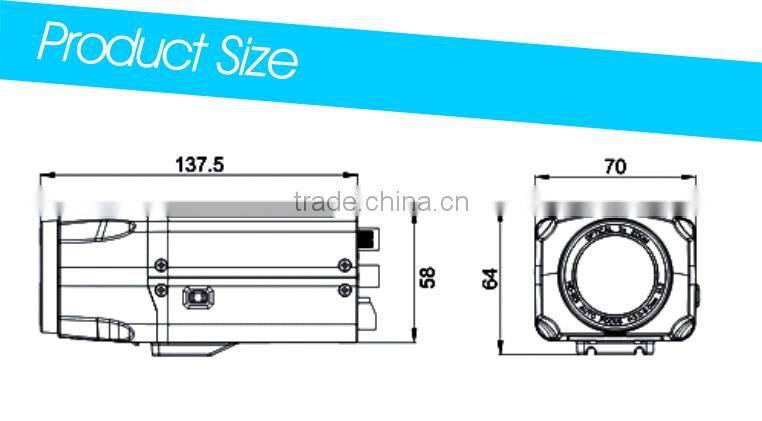

| Dimensions(mm) | 137.5mm×70mm×64mm | |
| Weight(kg) | 0.5kg |
As the massive application of high definition video, H.264 coding technology is far from enough to satisfy our customers’ demand of 4K even 8K high definition video transmission and display. Fortunately, H.265, the next generation high efficiency coding technology (HEVC) emerged at the right moment and thus paved the way to deal with this issue. Anxinshi Technology who took the lead in offering H.265 encoder and realized practical, large-scale application of it, now offer you a series of such encoders with various interfaces including HD-SDI, DVI, HDMI for a variety of video formats. These devices can secure the video transmission under unstable network environment, could even support video transmission under 45% system packet loss rate; Meanwhile, the size of data generated for same quality image transmission is 1/16 compared with MPEG2, 1/2 compared with H.264. 45% network packet loss rate Fluent transmission, Ultra high video compression ratio
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small
order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen

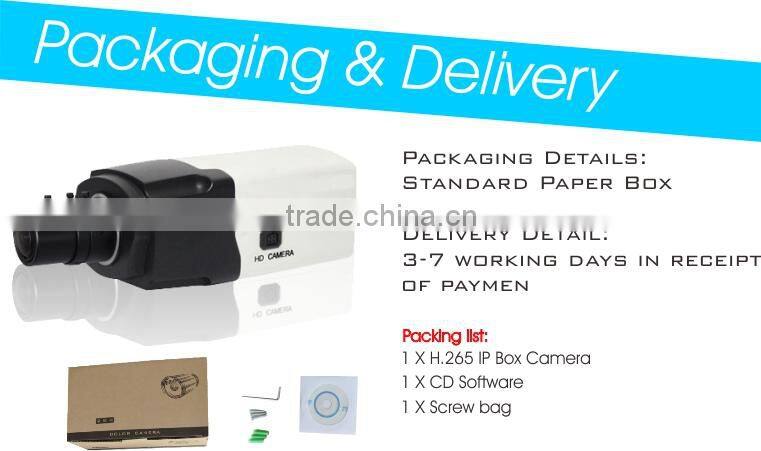

Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
