carbide cutting tool bits of saw tips
1.Advantages of our carbide cutting tool bits :
1).stable and reliable quality;
2).Material of WC with Cobalt;
3).made from 100% virgin materials;
4).all products go through in-process and final inspection;
5).free online technical service available;
6).Sample available;
7).Application fields: Brazing Carbide tips on tungsten carbide tool bits for woodworking cutting, rock cutting like fairy soft limestone on a wet saw or hard stone like sand stone etc.

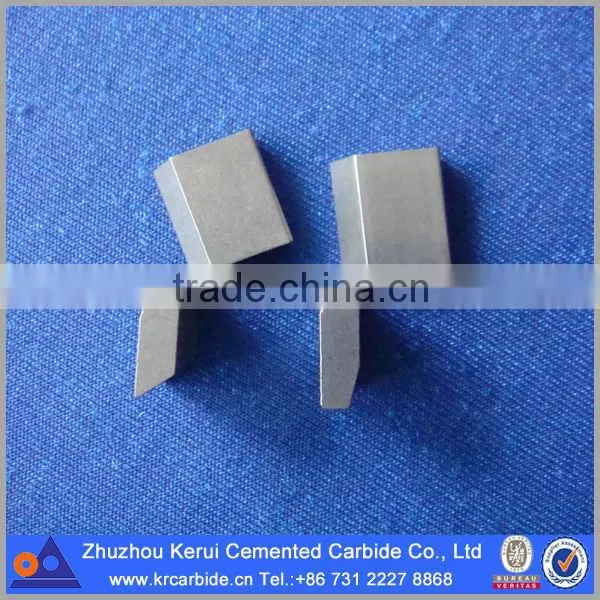

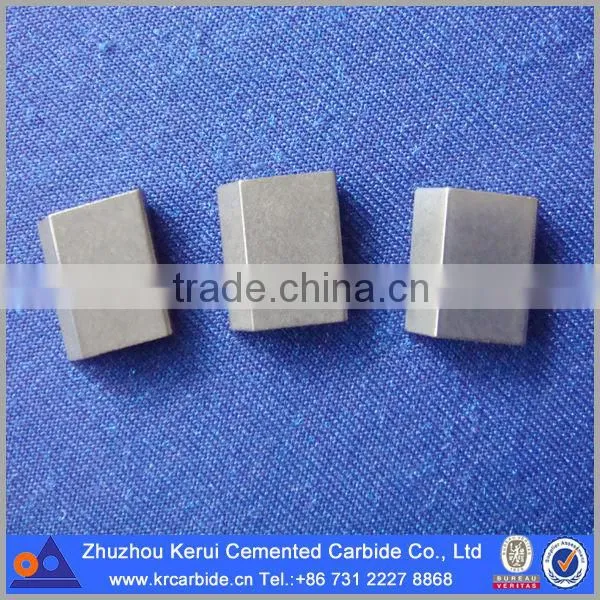

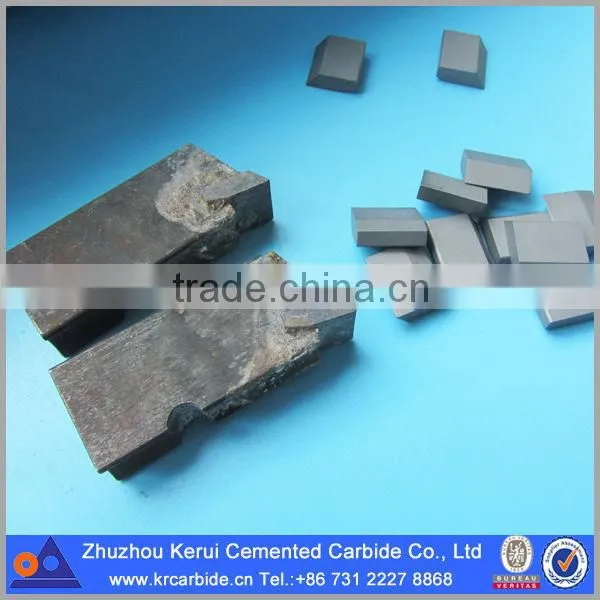

8).Detail Pictures:
Various Types for your choose: 12.5x4.0x14mm; 12.5x4.5x14mm.

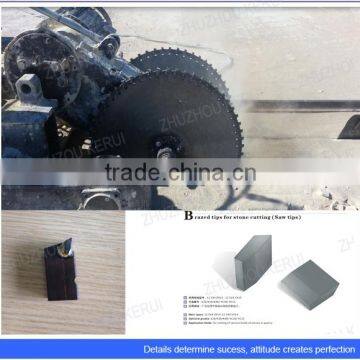

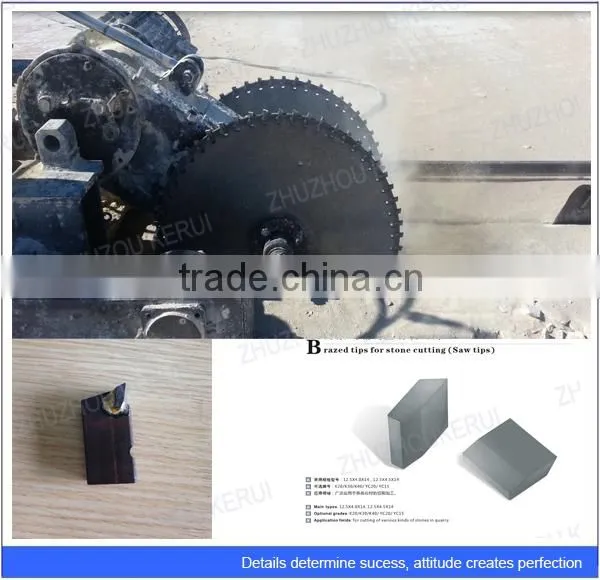

9).Brazing tool bits working like this
2.Recommend Grade:
| Grade | ISO | Density g/cm3 | Hardness HRA> | T.R.S>N/mm² | Performances or recommended applications | |||||
| Grade | ||||||||||
| Conventional grades | ||||||||||
| YG3 | K05 | 15.20-15.40 | 91.5 | 1400 | Medium grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG3X | K05 | 15.20-15.40 | 92 | 1300 | Fine grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG4C | 15.05-15.25 | 90 | 1620 | Coarse grain, for percussion drill bits and mining inserts | ||||||
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG6A | K10 | 14.85-15.05 | 92 | 1600 | Fine grain, for drawing dies and woodworking tools | |||||
| YG6X | K10 | 14.85-15.05 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals | |||||
| YG7 | K20 | 14.65-14.85 | 90 | 1900 | Medium grain with good wear-resistance and good impact- resistance | |||||
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies | |||||
| YG8A | K30 | 14.6-14.85 | 90 | 2000 | Medium grain, for the drawing dies and wood-working | |||||
| YG8X | K30 | 14.60-14.85 | 90.5 | 2000 | Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness | |||||
| YG8C | 14.55-14.75 | 88 | 2160 | Coarse grain, for button drill bits and the mining inserts | ||||||
| YG10 | K40 | 14.25-14.55 | 88 | 2160 | Medium grain, for machining gray cast iron with a low hardness | |||||
| YG11 | K40 | 14.30-14.50 | 87.5 | 2260 | Medium grain, for wear parts and mining tools | |||||
| YG11C | 14.20-14.40 | 87 | 2260 | Coarse grain, for mining inserts | ||||||
| YG12 | K40 | 14.10-14.40 | 87 | 2260 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG15 | 13.95-14.15 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies | ||||||
| YG20 | 13.45-13.65 | 84 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| YG20C | 13.40-13.60 | 82.5 | 2480 | Coarse grain, for die and moulds making screws of a diameter of 20-50mm | ||||||
| YG22 | 13.15-13.55 | 83 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| High-performance grade | ||||||||||
| YD40 | 13.10-13.55 | 82.5 | 2480 | High impact resistance, for cold heading and punching dies and hot heading and punching dies | ||||||
| YD45 | 13.25-13.65 | 83 | 2480 | High impact resistance, a special grade for hot heading dies | ||||||
| YG011 | K10 | 14.55-14.75 | 92.5 | 1840 | Ultra-fine grain size, for machining glass fiber reinforced plastics, titanium alloys, hardened steel with a high hardness | |||||
| YG012 | K20 | 14.25-14.55 | 91 | 2160 | Ultra-fine grain, for milling cutters and the hole-machining tools | |||||
| YG013 | K10 | 14.35-14.60 | 91.5 | 2060 | Ultra-fine grain with good wear resistance and toughness, for wood-working tools | |||||
| YG014 | K05 | 14.65-14.95 | 93 | 1760 | Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools | |||||
| Cutting steel class grade | ||||||||||
| YT03 | P10 | 14.75-14.95 | 91.5 | 1860 | Suitable for the semi-finishing and finishing machining of non-ferrous metals, stainless steel | |||||
| YT5 | P30 | 11.50-13.20 | 90 | 1750 | Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions | |||||
| YT14 | P20 | 11.20-11.80 | 91 | 1550 | Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate | |||||
| YT15 | P10 | 11.10-11.60 | 91.5 | 1500 | Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended | |||||
| YS25 | P25 | 12.80-13.20 | 91 | 1860 | A special grade for mining steel and cast steel | |||||
| SC30 | P30 | 12.70-13.20 | 90 | 1600 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate | |||||
| YC40 | P40 | 13.00-13.40 | 89.5 | 1860 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well | |||||
| YW1 | M10 | 12.85-13.40 | 92 | 1380 | Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
| YW2 | M20 | 12.65-13.35 | 91 | 1680 | Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs | |||||
| YW3 | M10 | 12.85-13.10 | 92 | 1420 | It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
3.Our main market is America, Mid-east, Europe, South Asia and Africa.
4.Followings are some of our distinguished customers:
- Incredilution LLC ( USA )
- AXMAK LTD ( Egypt )
- Erkimpeck Turism Ve Ticaret ( Turkey)
- Kings Wear Ltd ( Kenya )
- BNT Eastern Europe Zrt. ( Hungary )
- Sorkun Mermer Ltd STI ( Turkey )
- ABRATEK A/S ( Denmark
Grade |
Density |
Hardness |
TRS |
(g/cm3) |
(HRA) |
(Mpa) |
|
YG6 |
14.9 |
91 |
1800 |
YG6X |
14.8 |
92 |
1800 |
YKM6A |
14.7 |
92.5 |
1800 |
YG8 |
14.8 |
90 |
1950 |
YT5 |
13 |
90.8 |
1900 |
YT14 |
11.5 |
91.5 |
1500 |
YT15 |
11.3 |
91.8 |
1450 |
YW1 |
13.1 |
91.5 |
1600 |
YW2 |
13.1 |
91 |
1600 |
YS25 |
12.8 |
91.5 |
1900 |
YC30S |
12.8 |
91 |
2000 |
ZP35 |
12.8 |
91 |
2000 |
YC40 |
13.2 |
90 |
1850 |
6.Ourpacking picture fyi:
7.Quality control system:
Eevery batches of material will be tested in density, HRA, TRS and magnetic saturation, test report will be kept in our files.
Strict quality control system to make sure every single piece can match your requests.
Note: Please kindly advise the grade or using purpose for quotation.
Brazed tips for Stone cutting (saw tips) are our hot sale product, currently we are selling many of this type per month for our customers.
8.About us:
Zhuzhou Cemented Carbide Co. Ltd. is a professional tungsten carbide manufacturer in Zhuzhou City, our company have experience in this field for more than 10 years.
We have long term relationship with our customers and you can find the best prices, quality and service here and it will be simple and easy to do business with us.
ENJOY YOUR PURCHASING TIME!
