Replaceable of Tungsten Carbide Scriber, Carbide Tip in Grade K10
- Shenzhen/Shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Regular Walk Tip for Trekking Pole Carbide Tips
 -


Customized Triangle Widia Wear Part With Three Holes
 -


Tip for Outdoor Skiing Ice Snow Sports
 -


Construction Tool Parts Custom Tungsten Carbide Tips for Forestry Mulcher Tooth With Long Service Life From Zhuzhou Kerui
 -


Carbide Solid Blades for Glass Cutter
 -


Tungsten Carbide Tipped Circular Saw Blade

Product Details
| Place of Origin | Hunan, China | Brand Name | Kerui | |
| Model Number | Various | Type | Power Tool Parts |
Product Description

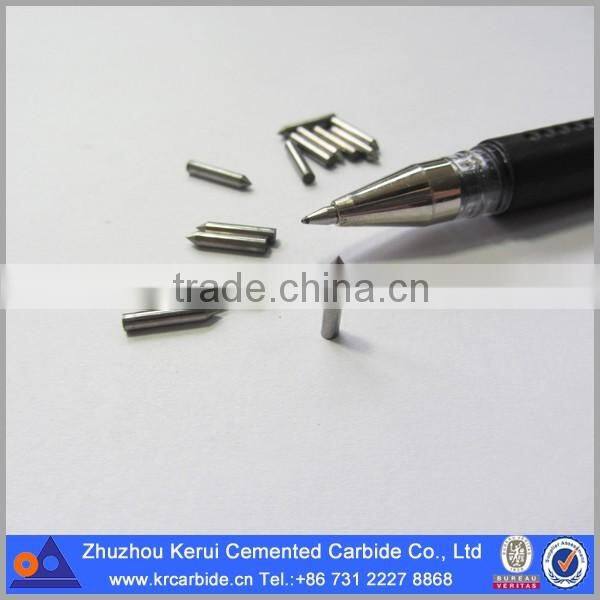

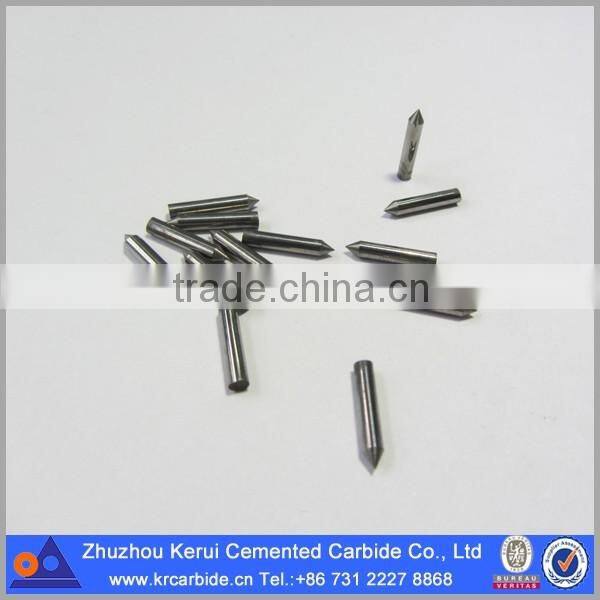

Replaceable of tungsten carbide scriber, Carbide tip in Grade K10
Please Advice what's size you want to buy??

1.Details of our Replaceable of tungsten carbide tips, pins,needles,rods:
Grade: K10,K20,K30,YT10,YG12 upon your application.
Tungsten Carbide Physical Properties,
Hardness(HRA):92.5 Ra
Density:14.82 g/cc
Transverse Rupture(TRS):400KSI/400000PSI

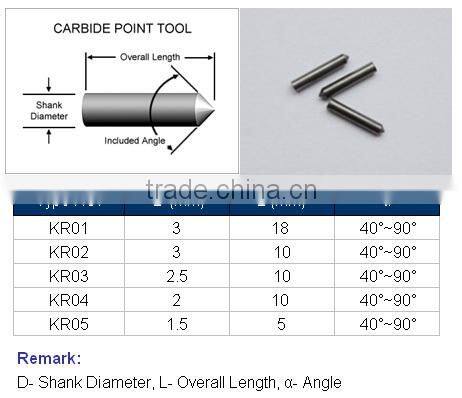

American standard Type like: dia.1.5*7 ,2x10(Unit:mm)
Application:
Our carbide needles,pins are mainly used for Scriber,to carvin pins/engraving and sculpture for the machines.
2.Grade recommendation:
| Grade | Grade | WC | Co | Others | Grain Size | Density | T.R.S | Hardness | Impact Strength (Kgf-m/cm2) |
| Series | (+0.5% | (+0.5%) | (μm) | g/cm3 | Mpa | HRA | |||
| Mining tool parts | YG4C | 96 | 4 | 2.0~2.4 | 15.1 | 1800 | 90 | 0.35 | |
| YG6 | 94 | 6 | 1.6~1.8 | 14.9 | 2100 | 90 | 0.4 | ||
| YG8 | 92 | 8 | 1.6~1.8 | 14.7 | 2400 | 89.5 | 0.42 | ||
| YG8C | 91.7 | 8.3 | 2.0~2.4 | 14.7 | 2450 | 88.5 | 0.65 | ||
| YG9C | 91.5 | 8.5 | 2.0~2.4 | 14.6 | 2450 | 87.8 | 0.66 | ||
| YG10C | 89.5 | 10.5 | 2.0~2.4 | 14.4 | 2550 | 87 | 0.68 | ||
| YK25 | 88 | 12 | 2.0~2.4 | 14.5 | 2600 | 87.5 | 0.7 | ||
| YG11C | 88.5 | 11.5 | 2.0~2.4 | 14.4 | 2600 | 87 | 0.71 | ||
| YG13C | 87 | 13 | 2.0~2.4 | 14.2 | 2650 | 86.5 | 0.72 | ||
| YG15C | 85 | 15 | 2.0~2.4 | 14 | 2700 | 86.5 | 0.75 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14 | 2500 | 87.5 | 0.58 | ||
| General Grade | YG3 | 97 | 3 | 1.6~1.8 | 15.1 | 1400 | 90.5 | 0.2 | |
| YG3X | 96.7 | 3.3 | 1.0~1.2 | 15.2 | 1300 | 91.5 | 0.2 | ||
| - | 93 | 7 | 1.2~1.6 | 14.7 | 1720 | 89.5 | 0.35 | ||
| YG11 | 89 | 11 | 1.6~1.8 | 14.4 | 2000 | 87.5 | 0.42 | ||
| Saw Tips | K10 | 93.5 | 6.5 | 1.0~1.2 | 14.7 | 1900 | 92.5 | 0.33 | |
| K30~K40 | 91 | 9 | 1.0~1.2 | 14.5 | 2200 | 91 | 0.35 | ||
| YG8X | 91.5 | 8.5 | 1.0~1.2 | 14.4 | 2420 | 92 | 0.34 | ||
| K20 | 88 | 12 | 0.8 | 14.7 | 2000 | 91.2 | 0.34 | ||
| K20 | 89.5 | 10.5 | 1.0~1.2 | 14.8 | 2200 | 91 | 0.35 | ||
| K10 | 89.5 | 10.5 | 1.0~1.2 | 14.9 | 1890 | 91.5 | 0.35 | ||
| K10 | 94 | 6 | 1.2~1.6 | 14.9 | 2100 | 90 | 0.42 | ||
| K20 | 92 | 8 | 1.2~1.6 | 14.7 | 2400 | 89.5 | 0.45 | ||
| K20 | 91.7 | 8.3 | 2.0~2.4 | 14.7 | 2450 | 88.5 | 0.65 | ||
| K30~K40 | 91.5 | 8.5 | 2.0~2.4 | 14.6 | 2600 | 87 | 0.66 | ||
| - | 88.5 | 11.5 | 2.0~2.4 | 14.4 | 2200 | 86.5 | 0.72 | ||
| K40 | 85 | 15 | 2.0~2.4 | 14 | 2700 | 86 | 0.75 | ||
| Metal Forming Tools | YG6A | 92 | 6 | 2 | 1.0~1.2 | 14.9 | 1850 | 92 | 0.35 |
| YG8 | 92 | 8 | 1.2~1.6 | 14.7 | 2400 | 89.5 | 0.42 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14.5 | 2500 | 87.5 | 0.58 | ||
| YG20 | 80 | 20 | 1.2~1.6 | 13.5 | 2800 | 85.5 | 0.62 | ||
| YS2T | 88 | 12 | 0.8 | 14.5 | 2350 | 92 | 0.35 | ||
| Disc Cutters | YG6A | 91.5 | 8.5 | 1.0~1.2 | 14.9 | 1850 | 92 | 0.34 | |
| - | 92 | 8 | 1.0~1.2 | 14.8 | 2450 | 90.5 | 0.36 | ||
| YG8 | 92 | 8 | 1.2~1.6 | 14.8 | 2200 | 89.5 | 0.4 | ||
| YG8 | 91.7 | 8.3 | 1.6~1.8 | 14.7 | 2320 | 89.5 | 0.45 | ||
| YG10X | 89.5 | 10.5 | 1.6~1.8 | 14.5 | 2200 | 91 | 0.48 | ||
| YS2T | 87.4 | 10.2 | 2.4 | 1.0~1.2 | 14.5 | 2480 | 92 | 0.34 | |
| - | 87.4 | 10.2 | 2.4 | 0.8 | 14.3 | 2420 | 90 | 0.33 | |
| Impact Resistant Forging Tools | - | 79 | 20.5 | 0.5 | 2.8~3.2 | 13.5 | 3000 | 83.5 | 0.9 |
| YG11 | 89 | 11 | 1.6~1.8 | 14.4 | 2420 | 88.5 | 0.42 | ||
| YG15 | 85 | 15 | 1.6~1.8 | 14 | 2500 | 87.5 | 0.58 | ||
| YG20 | 80 | 20 | 1.2~1.5 | 13.5 | 2800 | 85.5 | 0.62 | ||
| YG16C | 84 | 16 | 2.0~2.4 | 13.9 | 2750 | 85.5 | 0.65 | ||
| YG18C | 82.5 | 17.5 | 2.8~3.2 | 13.7 | 2800 | 84.5 | 0.75 | ||
| YG20C | 79.5 | 20.5 | 2.8~3.2 | 13.5 | 2850 | 83.5 | 0.82 | ||
| YG22C | 77.5 | 22.5 | 2.8~3.2 | 13.3 | 2900 | 83 | 0.85 | ||
| YG25C | 75 | 25 | 2.8~3.2 | 13.1 | 2950 | 82.5 | 0.85 | ||
| YG26 | 73 | 26.5 | 0.5 | 2.8~3.2 | 13.3 | 3200 | 82 | 0.9 | |
| Inserts | YT5 | 75 | 9.3 | 15.7 | 1.6~1.8 | 12.9 | 1560 | 89.5 | 0.3 |
| YT14 | 56.5 | 8.2 | 35.3 | 1.6~1.8 | 11.4 | 1400 | 90.5 | 0.3 | |
| YT15 | 54.2 | 6.1 | 39.7 | 1.0~1.2 | 11.2 | 1300 | 91 | 0.2 | |
| YW1 | 77.5 | 6.2 | 16.3 | 1.0~1.2 | 13.2 | 1290 | 91.5 | 0.2 | |
| YW2 | 75.5 | 8.2 | 16.3 | 1.0~1.2 | 13.1 | 1460 | 90.5 | 0.2 | |
| YS25 | 45.2 | 8.6 | 46.2 | 1.0~1.2 | 13 | 1780 | 90.5 | 0.25 | |
| YC45 | 70.8 | 12 | 17.2 | 1.0~1.2 | 13 | 1650 | 90 | 0.25 |
3.Advantages of our Replaceable of tungsten carbide scriber, Carbide tip in Grade K10:
1. produced with advanced equipments and process;
2. all products go through in-process and final inspection;
3. free online technical service available;
4. stable and continuous production ability.
5.Here with American standard type dia.1.5*7mm that with good performance in the Grade YG12.
4.Our Main Market:
North America: USA, Canada, Mexico
South America: Brazil, Peru, Chile
Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany
Mid East: Egypt, Turkey, Lebanon
Africa: Kenya, South Africa
5.Packing & Transportation:

6.Quality control equipment:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
We are Guarantee: Full payment refund if any quality problem.
7.About Us:
Zhuzhou kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer located in Zhuzhou City, the world-renowned research and production base of tungsten carbide.  Having been involved in this field for over 10 years.
We have rich experience in both production and research of carbide products.
We always want develop long relationship with customers, you can find the best quality and price here, also the best service here, it will be very simple and easy for you do business with us, that's why we can be the supplier which you can trust.
TUV & BV Certificate:

8.FAQ:
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to
push the production and shorten the delivery time.
