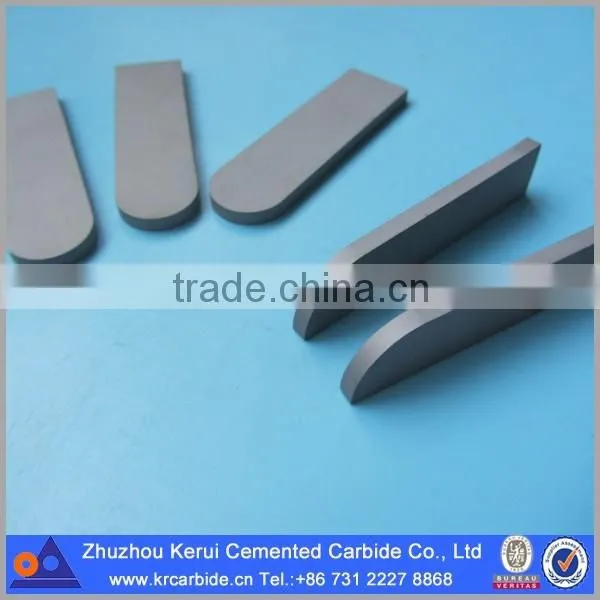

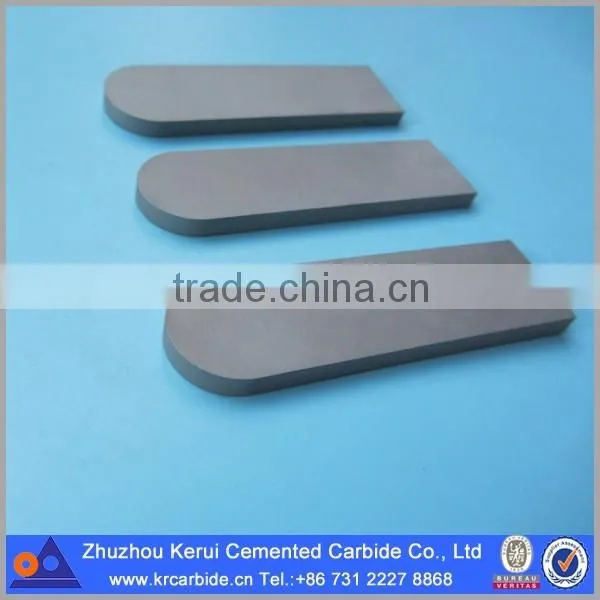

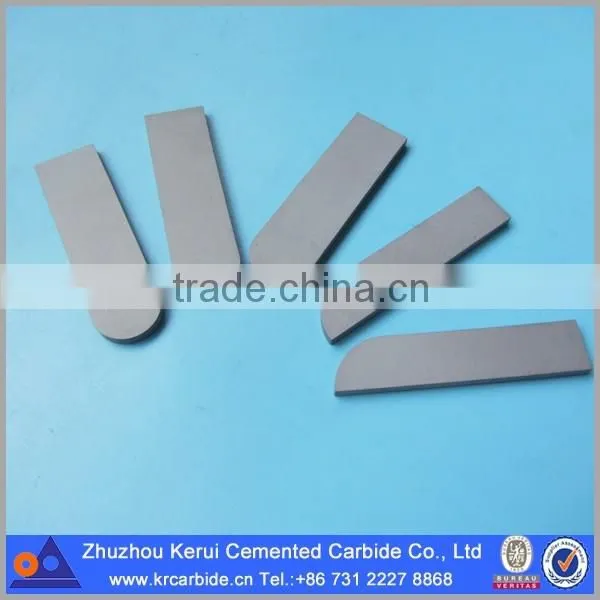

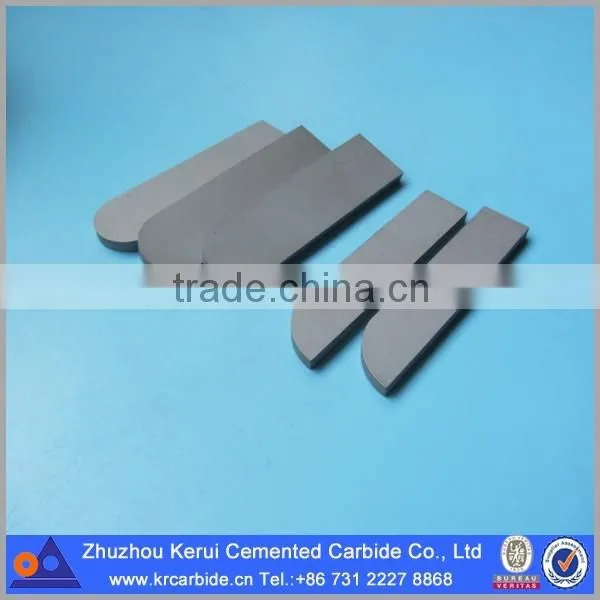

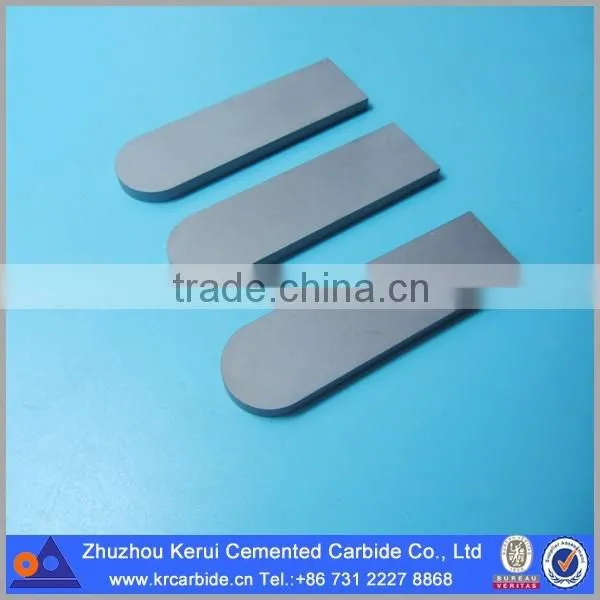

Tooth disc with the stone cutting tips of customized widia
Product introduction:
More related tooth disc with the stone cutting tips widia Product picture:
Product application:
It is used for turning of cast iron,steel, stainless steel,nonferrous metal.
Other types of tooth disc with the stone cutting tip widia:
Physical and mechanical properties of main grades:
| Grade | ISO | Density g/cm3 | Hardness HRA> | T.R.S>N/mm² | Performances or recommended applications | |||||
| Grade | ||||||||||
| Conventional grades | ||||||||||
| YG3 | K05 | 15.20-15.40 | 91.5 | 1400 | Medium grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG3X | K05 | 15.20-15.40 | 92 | 1300 | Fine grain, for finishing machining of cast iron and non-ferrous metals | |||||
| YG4C | 15.05-15.25 | 90 | 1620 | Coarse grain, for percussion drill bits and mining inserts | ||||||
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG6A | K10 | 14.85-15.05 | 92 | 1600 | Fine grain, for drawing dies and woodworking tools | |||||
| YG6X | K10 | 14.85-15.05 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals | |||||
| YG7 | K20 | 14.65-14.85 | 90 | 1900 | Medium grain with good wear-resistance and good impact- resistance | |||||
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies | |||||
| YG8A | K30 | 14.6-14.85 | 90 | 2000 | Medium grain, for the drawing dies and wood-working | |||||
| YG8X | K30 | 14.60-14.85 | 90.5 | 2000 | Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness | |||||
| YG8C | 14.55-14.75 | 88 | 2160 | Coarse grain, for button drill bits and the mining inserts | ||||||
| YG10 | K40 | 14.25-14.55 | 88 | 2160 | Medium grain, for machining gray cast iron with a low hardness | |||||
| YG11 | K40 | 14.30-14.50 | 87.5 | 2260 | Medium grain, for wear parts and mining tools | |||||
| YG11C | 14.20-14.40 | 87 | 2260 | Coarse grain, for mining inserts | ||||||
| YG12 | K40 | 14.10-14.40 | 87 | 2260 | Medium grain, for rough machining of non-ferrous metals | |||||
| YG15 | 13.95-14.15 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies | ||||||
| YG20 | 13.45-13.65 | 84 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| YG20C | 13.40-13.60 | 82.5 | 2480 | Coarse grain, for die and moulds making screws of a diameter of 20-50mm | ||||||
| YG22 | 13.15-13.55 | 83 | 2480 | Medium grain, for non-standard dies and moulds, cold heading and punching dies | ||||||
| High-performance grade | ||||||||||
| YD40 | 13.10-13.55 | 82.5 | 2480 | High impact resistance, for cold heading and punching dies and hot heading and punching dies | ||||||
| YD45 | 13.25-13.65 | 83 | 2480 | High impact resistance, a special grade for hot heading dies | ||||||
| YG011 | K10 | 14.55-14.75 | 92.5 | 1840 | Ultra-fine grain size, for machining glass fiber reinforced plastics, titanium alloys, hardened steel with a high hardness | |||||
| YG012 | K20 | 14.25-14.55 | 91 | 2160 | Ultra-fine grain, for milling cutters and the hole-machining tools | |||||
| YG013 | K10 | 14.35-14.60 | 91.5 | 2060 | Ultra-fine grain with good wear resistance and toughness, for wood-working tools | |||||
| YG014 | K05 | 14.65-14.95 | 93 | 1760 | Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools | |||||
| Cutting steel class grade | ||||||||||
| YT03 | P10 | 14.75-14.95 | 91.5 | 1860 | Suitable for the semi-finishing and finishing machining of non-ferrous metals, stainless steel | |||||
| YT5 | P30 | 11.50-13.20 | 90 | 1750 | Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions | |||||
| YT14 | P20 | 11.20-11.80 | 91 | 1550 | Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate | |||||
| YT15 | P10 | 11.10-11.60 | 91.5 | 1500 | Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended | |||||
| YS25 | P25 | 12.80-13.20 | 91 | 1860 | A special grade for mining steel and cast steel | |||||
| SC30 | P30 | 12.70-13.20 | 90 | 1600 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate | |||||
| YC40 | P40 | 13.00-13.40 | 89.5 | 1860 | Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well | |||||
| YW1 | M10 | 12.85-13.40 | 92 | 1380 | Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
| YW2 | M20 | 12.65-13.35 | 91 | 1680 | Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs | |||||
| YW3 | M10 | 12.85-13.10 | 92 | 1420 | It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel | |||||
Reference packaging for our widia products:
Product advantages for our tooth disc stone cutting tips widia:
1) efficient machining, good high-temperature stability;
2) easy to weld, no crack or chipping;
3) smooth surface of work piece.
Widia Tips for use of brazed cutting tool:
1) structure of brazed cutting tool should have enough rigidity;
2) the brazed tips should be fixed strongly onto the holder;
3) check and ensure good condition of the holder before brazing;
4) choose the proper welding material;
5) choose the proper welding flux;
6) use correct sharpening method;
7) mount the brazed cutting tool properly;
8) resharpening the brazed cutting tool properly.
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba and BV.
Factory picture:
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
4. Gurantee: Full payment refund if any quality problem.
Certificates:
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
FAQ:
How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
