Specifications
laser engraving machine 12901.high precision, high speed
2.CE, ISO9001,TUV
fessional manufacture
laser engraving machine 1290 /cutting nonmetal material with CE
Applications
The series of machine is suitable to art gift,advertisement decoration,toy,electron element,cutting of template,paper product,stamp and other industries, such as bamboo,putamina of coconut,paper,plexiglass,acrylic,marble,jade,crystal.Also can cut acrylic sheet,paper and so on.
Features
1. High Speed Laser Engraving Machine&Laser Cutting Machine adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the life time of the laser tube can be over 10000 hours.
2. more scientific design and high-strength steel frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long term work.
3. The humanized and modern appearance shows BCAMCNC's consistent humanity idea, and it also makes the operation and maintenance quite easy.
4. Advanced LEETRO system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
5.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.
Parameters
NO. | Model | BCJ-1290 |
1 | Laser medium | CO2 |
2 | Working area | 1200*900mm |
3 | Working table | Blade table(or honeycomb table, could add Motorized up-down working table) |
4 | Laser power | 100W(80W,130W,150W) |
5 | Power Supply | 220V/50Hz, 110V/60Hz |
6 | Min line width | ≤0.15mm |
7 | Positon accuracy | 0.01mm |
8 | Repetition accuracy | 0.02mm |
10 | Guide rail | HIWIN linear square guide rail from Taiwan |
11 | Transmission method | Fulong belt from shanghai |
12 | Drive system | Leadshine driving system and stepper motor |
13 | Cooling style | Water-cooling |
14 | Control system | LEETRO controller |
15 | Software suppoeted | Coreldraw, Photoshop, AutoCAD, Tajima |
16 | Graphic format support | PLT, DXF, BMP, JPG ,AI and ect |
17 | Working environment | 0-45°C, |
18 | Operating Humidity | 5-95% |
19 | Recommended Spare Parts | Laser Tube and Lens(Suggest additional sets) |
20 | Optional Parts | USB Feature, Up-down work table, Red light pointer, Rotary System |

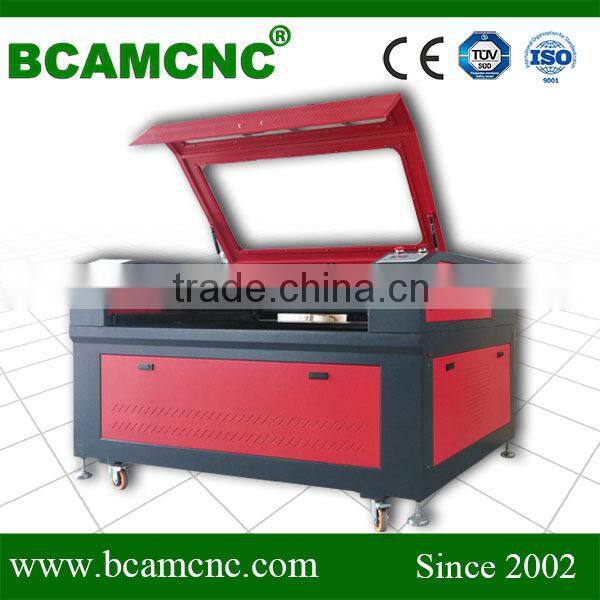

Machine picture
Machine Parts Picture

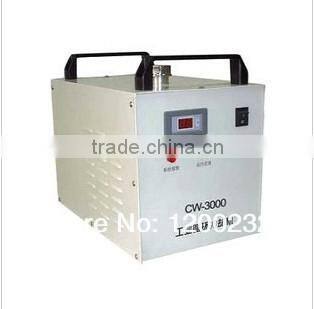

CW3000 water chiller

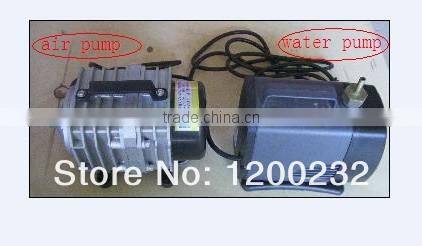

air compressor

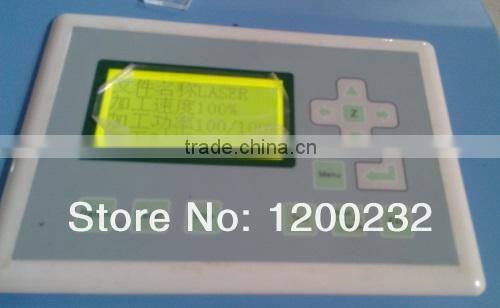

LEETRO control system

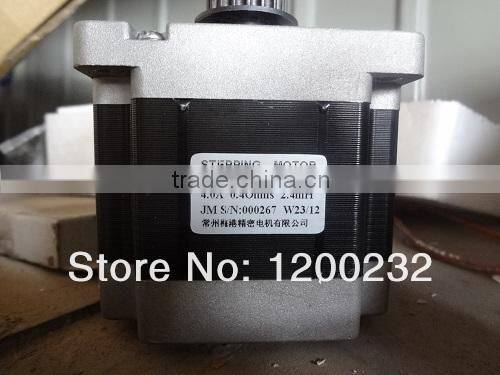

stepper motor 450A
Machine Design Picture

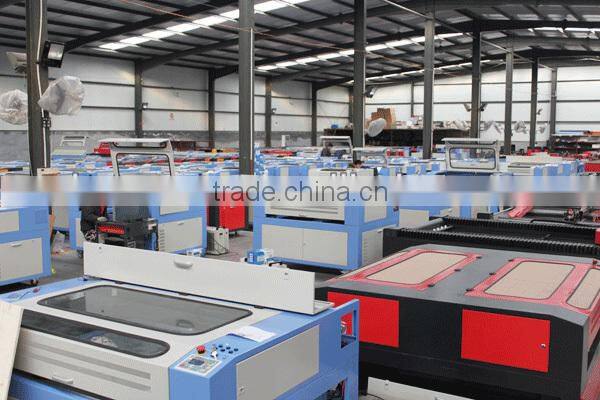

Factory pic
How to choose a good laser machine?
1)Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situation will have a bad effect on your producing.So the quality of the machine is most important factors to choose a laser machine.
2)Future more,aftersales service is very important, too.Good aftersales service represent the image of a company. After you use the machine and find some problem of machine, a good after sales can solve it effectively and protect the rights of consumers.
3)The third is technical support.Because of time difference,there is a big problem to communicate with the seller. When you need help, maybe it is the sleeping time for the sellers. So the effectively contact information and serve is also useful to you. Other sellers maybe can not do this, but our company can provide 24th service a day,we could go to your place to help you solve some problems if necessary.
4)The last is company. In order to ensure their image, a company with good reputation usually can produce good quality machine .As our company, we specialized in CNC laser machine is more than 10 years, the professional engineer teams,the advanced equipment and the good service have earned us good reputation in world market.
Packaging:
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
After sales service:
1. 18 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
