High Speed 260W CO2 Laser Cutting Machine for Metal and Nonmetal

High Speed 260W CO2 Laser Cutting Machine for Metal and Nonmetal photo-1

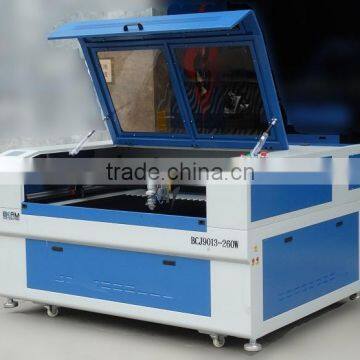

High Speed 260W CO2 Laser Cutting Machine for Metal and Nonmetal photo-2

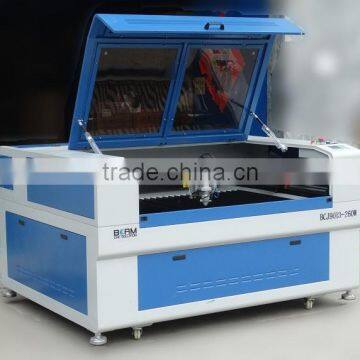

High Speed 260W CO2 Laser Cutting Machine for Metal and Nonmetal photo-3

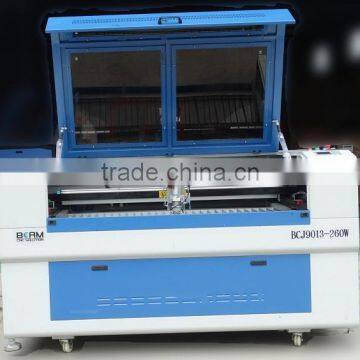

High Speed 260W CO2 Laser Cutting Machine for Metal and Nonmetal photo-4
US$ 15,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Leather, MDF, Metal, Paper, plastic, Plywood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Applicable Material Acrylic, Crytal, Leather, MDF, Metal, Paper, plastic, Plywood
Cutting Thickness 30mm
Cutting Area 2500*1300mm
Cutting Speed 0-30mm/s
CNC or Not Yes
Cooling Mode Water Cooling
Control Software RD control system
Graphic Format Supported AI, BMP, DST, DXF, DXP, PLT
Place of Origin Shandong, China
Brand Name BCAMCNC
Model Number BCJ2513-260W
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

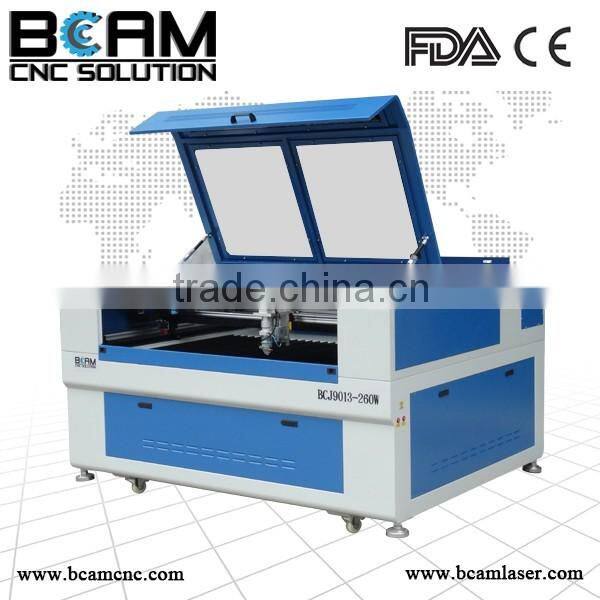

High speed 260W CO2  laser cutting machine for Metal and nonmetal

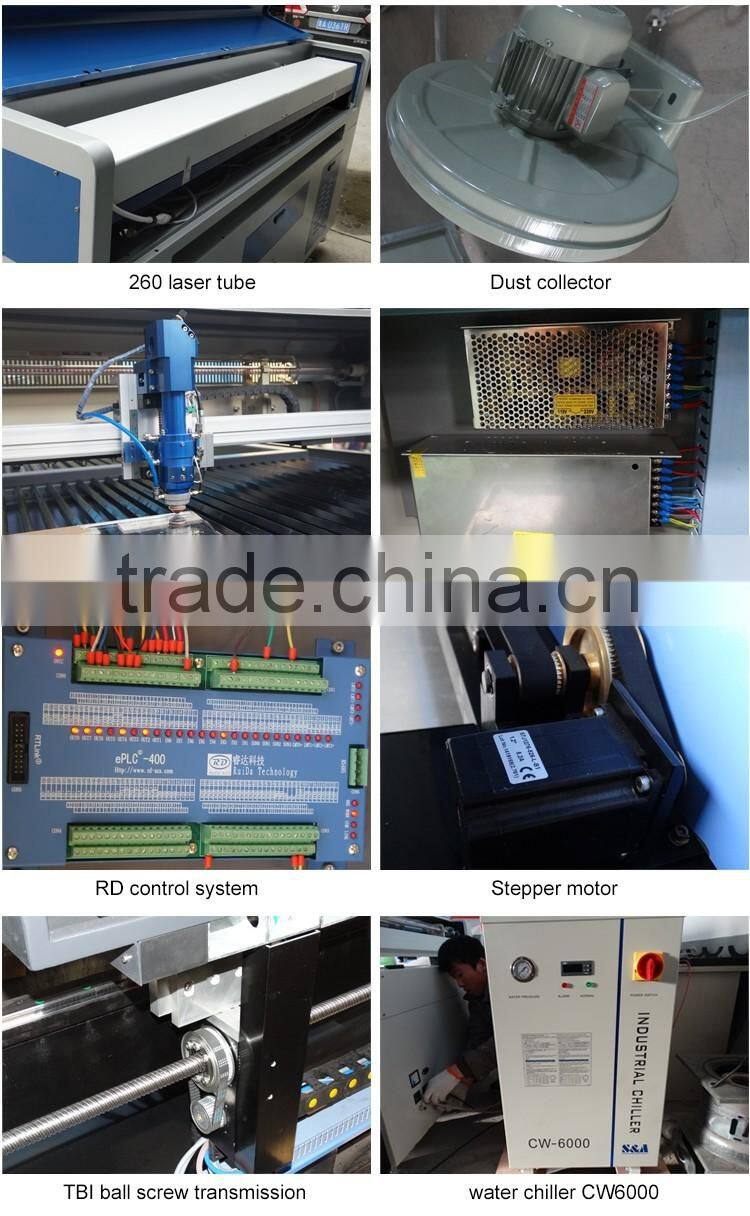

High speed 260W CO2 laser cutting machine for Metal and nonmetal




High speed 260W CO2 laser cutting machine for Metal and nonmetal

Model

BCJ2513

Working area

1300mmx2500mm

Laser Types

Seal CO2 LaserTube

Laser power

260W

Engraving speed

100-600mm/s

Cutting speed

0-30mm/s

Location precision

≤0.01mm

Resetting positioning accuracy

0.01mm

Power supply

AC110- 220V/50-60HZ

Controlling software

RDCAM

Operating temperature

0 - 45°

Operating humidity

5-95%

Minimum shaping character

English 1 x 1mm

360°slope engrave

Yes

Driving system

Stepper

Cooling mode

Water-cooling and protection system

Auxiliary Devices

Exhauster and the Exhaust Pipe

Software

RDCAM V6.0

Graphic format supported

BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc

Optional

Atuomatic feeding system, rotary axis, auto-focus







High speed 260W CO2 laser cutting machine for Metal and nonmetal

High speed 260W CO2 laser cutting machine for Metal and nonmetal



High speed 260W CO2 laser cutting machine for Metal and nonmetal

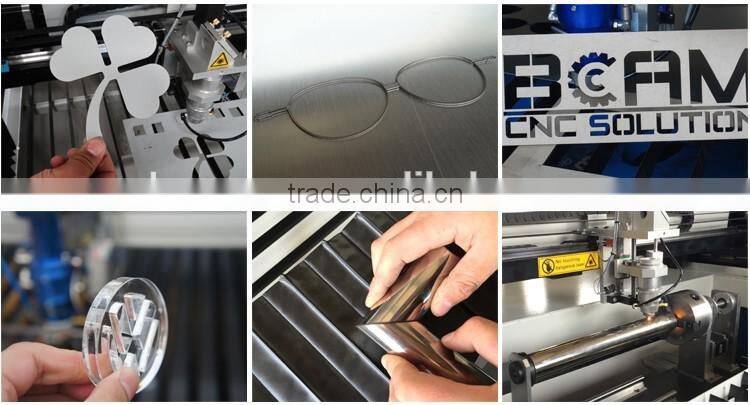

This co2 laser cutter machine can use for cutting metal&nonmetal meterial.

Metal materail: The laser cutter machine can cut carbon steel, stainless steel, According to different metal materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.

Non-metallic materails :Wood, Bamboo, jade articale, stone(only can engraving), organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.

.

High speed 260W CO2 laser cutting machine for Metal and nonmetal

High speed 260W CO2 laser cutting machine for Metal and nonmetal




High speed 260W CO2 laser cutting machine for Metal and nonmetal

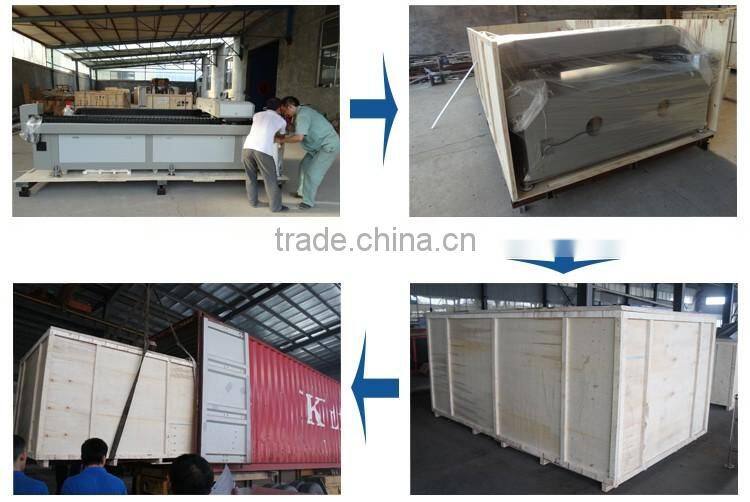

1.The cnc router packaged with Standard plywood case,  its compressive strength and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.



High speed 260W CO2 laser cutting machine for Metal and nonmetal



Payment:

   1.T/T (30% of the total payment in advance, pay the balance before delivery. )

   2.Through Alibaba-AliEscrow

   3. L/C   (at sight)



High speed 260W CO2 laser cutting machine for Metal and nonmetal

Our company has been a professional manufacturer of laser machine and CNC router for many years in China.

We keep idea of innovation and work hard to make famous brand and service for society.

We treat customers' demand as our life. We emphasize personal training and technical improving.

Every product is excellent-designed and strict quality-controlled.



High speed 260W CO2 laser cutting machine for Metal and nonmetal



High speed 260W CO2 laser cutting machine for Metal and nonmetalHigh speed 260W CO2 laser cutting machine for Metal and nonmetal

 Working video link of laser cutting machine for metal and nonmetal:

1. BCJ2513 260W, laser cutting machine, MDF 18mm  cutting:  http://youtu.be/UxWPOfZOPrM

2. BCJ2513 260W laser cutting machine, 3mm Carbon steel:  http://youtu.be/gmEGMkT1vE4

3. BCJ2513 260W laser cutting machine 18MM Acrylic:  http://youtu.be/jD2Wt0A822g
