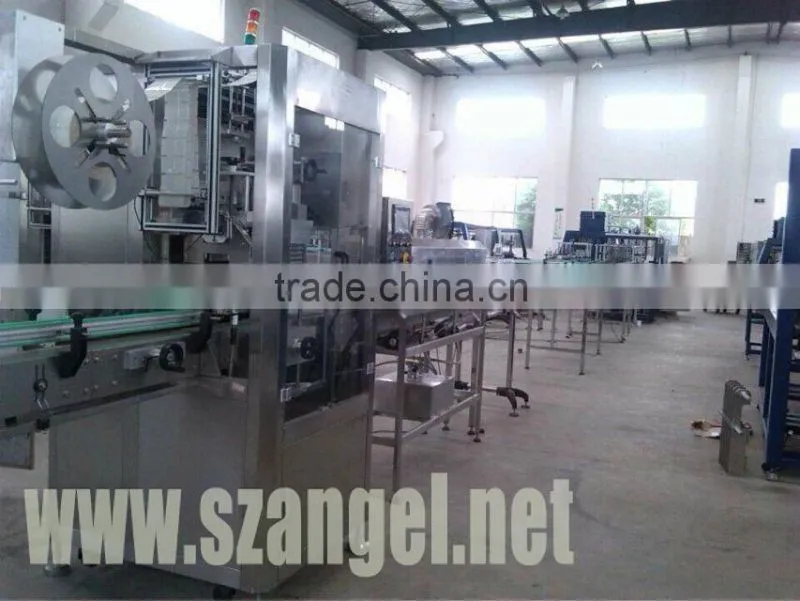

Automatic Labelling Machine
Features:
- Adopting world-famous components: Omron PLC touch screen control system; NSK bearing; Delta frequency converter; SUNX sensor; TAMAGAWA stepping motor; Schneider contactor switch……
- Structure fully made of stainless steel or aluminum alloy.
- Fully automatic, easy to use, water-proof, efficient and of high accuracy from the latest technology.
- Two transparent windows at both side of the labeling machine for easy monitoring and maintenances.
- Adopting steam instead of traditional infrared heating for even shrinking effect while solving the problem of over-heating of the infrared one.
Speicification:
Product |
WD-S150A Automatic Sleeve Labeling Machine |
|
|
Max Production Speed (depend on label size) |
90~150bpm(bottles per minute) / 6000~9,000bph(bottles per hour) (based on standard label length: 100 mm) |
|
Applicable Label Material |
PVC / PET / OPS |
|
Applicable Bottle Diameter |
Φ25mm ~Φ125mm |
|
Applicable Bottle Height |
30mm ~ 400mm |
|
Applicable Label Length |
30mm ~ 250mm |
|
Applicable Label Thickness |
0.035mm ~ 0.07mm |
|
Application Scope |
Cap / bottle labeling on bottles of round, square, curving, hexagonal shapes. |
|
Input Power |
AC 380V/50Hz / 22.0KW (three-phase) |
|
Steam Gas Consumption |
35KG per hour |
|
Steam Gas Pressure |
0.3 ~ 0.45MPA |
|
N.W. |
600.00KG |
|
Dimension |
Labeling Machine |
2,200×850×2,150mm |
Shrinking Oven |
1,650×350×1,800mm |
|
We offer standard sleeve labeling machine / shrink labeling machinie with production capacity ranging from 90~700bpm. Besides, we also offer dual sleeve labeling machines(cap and bottle labeling).
shrinking oven Steam generator
