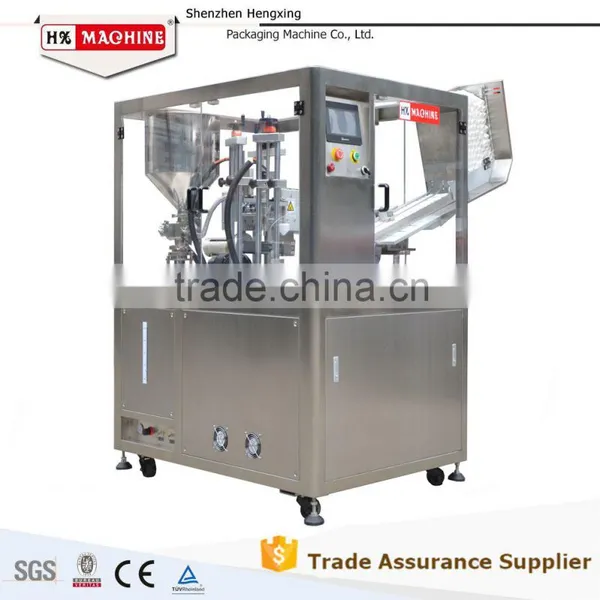

HX-009 High Precision Ultrasonic Plastic Tube Filling Sealing Machine

HX-009 High Precision Ultrasonic Plastic Tube Filling Sealing Machine photo-1
US$ 15,799 - 17,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Beverage, Chemical, Commodity, Food, Medical, Other, Beverage, Chemical, Commodity, Food, Medical, Automatic Tube Filling Sealing Packing Machine
Packaging Type:
Case
Packaging Material:
Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Application Beverage, Chemical, Commodity, Food, Medical, Other, Beverage, Chemical, Commodity, Food, Medical, Automatic Tube Filling Sealing Packing Machine
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC220V single phase, AC220V/50Hz, or 110v 60hz
Power 3KW, 2000w
Place of Origin Guangdong, China
Brand Name Hengxing
Model Number HX-009
Dimension(L*W*H) 1100*1150*1350mm
Weight 320kgs
Certification CE/SGS/BV/TUV
After-sales Service Provided Engineers available to service machinery overseas
Machine Details
SPECIFICATIONS FOR ULTRASONIC TUBE FILLING SEALING MACHINE
Model
HX-009
Sealing Dia
5-50mm
Output power
2000W
Machine Body
202# stainless steel
Capacity
25-40tubes/min
Voltage
AC220V/single phase 50/60HZ
Machine weight
230kgs
After packaging
280kgs
Machine size
1300*900*1550mm
Filling Range
A:6-60ml, B:10-120ml,C:25-250ml,D:50-500ml (Customer made available)
Control Style
PLC control
Time adjust
electronic adjust
Packaging
Plywooden case packaging

Functions

1. Tube Loading
2. Tube Orientation
3. Filling
4. Sealing
5. Data Printing
6. Trimming
7. Tube Unload

Advantages

1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)

Samples
Certifications
Packing & Delivery

Packing

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air, our package no need fumigation.

Delivery

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.

Customers & Feedback
FAQ & Service
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machines are made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before

Pre-sale services:

1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.

Sale of services:

1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.

After-sales service:

1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn parts.

4.Engineer can service door to door.
