Fuel Level Pressure Sensor

Baoji Hengtong Electronics Co., Ltd.
Fuel Level Pressure Sensor thumbnail-1
Fuel Level Pressure Sensor photo-1
US$ 80 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BH93420 Series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BH93420 Series

Specifications

1. Protection: IP68
2. Various output signal
3. High accuracy

Description

    BH93420 fuel level pressure sensor , use HT series piezoresistive silicon oil-filled sensor as measurement component. According the relation between pressure, density and liquid level, the hydraulic transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard signal.

Special use cable, advanced seal technology, reliable amplify circuit and accurate compensation technic ensure the products have high accuracy and good capability of anti-leakage.

Feature

Wide range

Protection: IP68;

Various output signal

Good anti-leakage

 Marking: ExiaIICT6

Good anti-electromagnetic interference

Application

Compatible with 316LSS,noncorrosive liquids

Apply in Petroleum industry, chemical industry, generating station, water supply, hydrology etc. those need to measure &control liquid’s level.



Specification



Range

0~1m...~200m

Proof pressure

≤1.5X rated range

Accuracy

±0.25%(typical) ±0.5%(Max.)

Long term stability

±0.2%F.S/year (>20mH2O)   ±20mm(≤20mH2O)

Operating temperature range

-20°C~80°C

Storage temperature range

-40°C~120°C

Power supply

15~30VDC

Output signal

4~20mA   0~10/20mA   0/1~5/10VDC

Housing material

Aluminium casting, 1Cr18Ni9Ti stainless steel

Diaphragm material

316L

O ring

Fluororubber

Cable

Polyethylene ventilate cable

Insulation resistance

100MΩ,100VDC

Protection

IP 68

Marking

ExiaIICT6

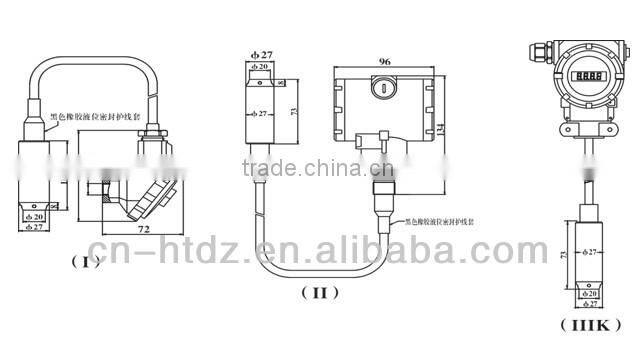

 Dimension

fuel level pressure sensor

fuel level pressure sensor

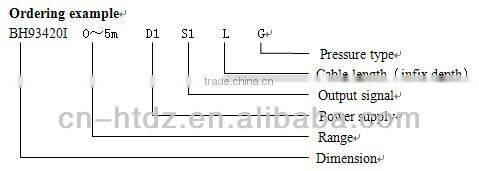

Ordering information



BH93420

submersible transmitter



Code

Dimension

I

Blue terminal box

II

Blue 2088 housing(without display)

III

Blue 2088 housing ,LED display

IB

Full weld



Range

0~1...200m

(0-X)m

X: Range



Code

Power supply

D1

24VDC

D2

Others



Code

Output signal



S1

4~20mADC

S2

1~5VDC

S3

0~5VDC

S4

0~10mAC

S5

0~20mAC

S6

0~10VDC

Code

Cable length/Infix depth/length of flexible pipe

L

Actual length



Code

Pressure type

G

Gauge pressure

A

Absolute pressure

S

Sealed gauge pressure
